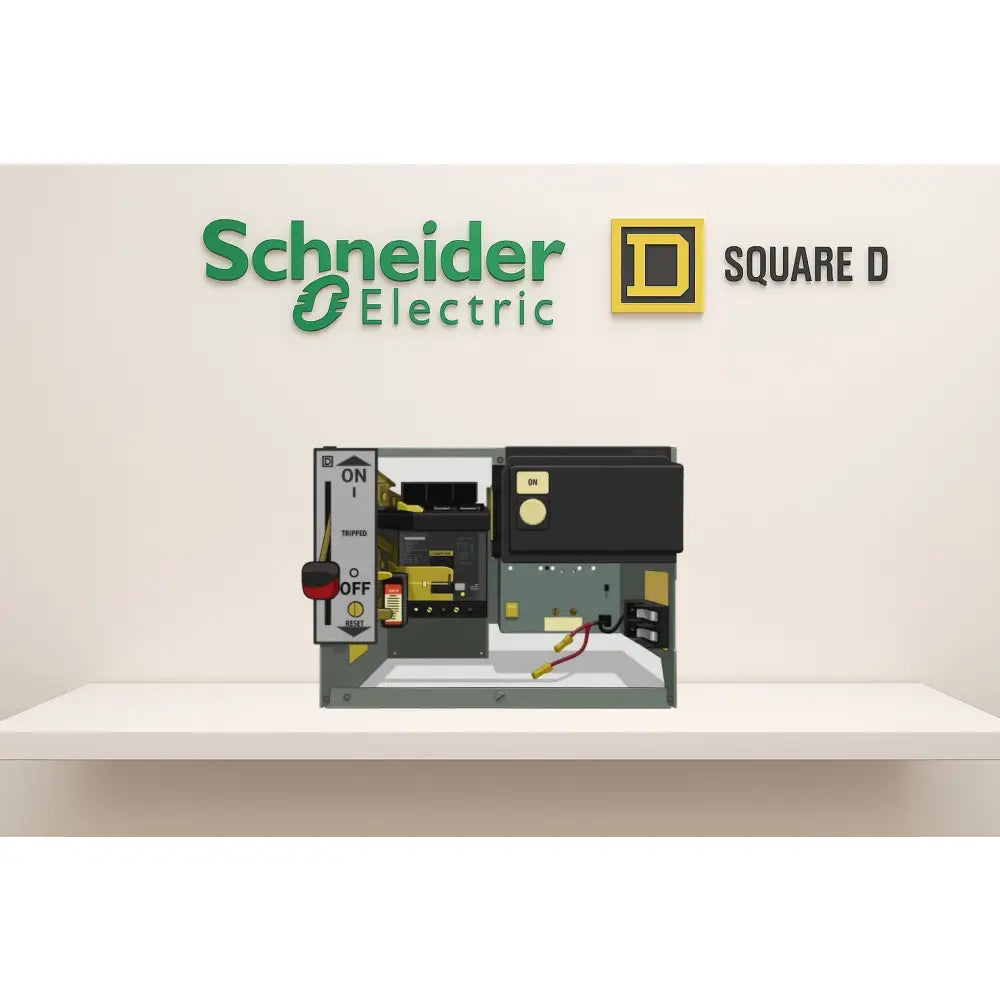

Square D Model 5 MCC Bucket 12" – Fusible Disconnect, 1HP VFD 480V, Door-Mounted Operator Panel

The Square D Model 5 MCC Bucket (12-inch door) is a fully integrated motor control solution designed for industrial applications requiring compact, reliable motor control with built-in protection and variable speed operation.

This configuration includes a fusible disconnect, 1 HP 480V VFD, and a door-mounted operator panel, making it ideal for fan, pump, and process control systems.

Key Features

• Fusible disconnect for integrated circuit protection

• Stabs included for direct MCC bus connection

• 1 HP VFD (480V) for precise motor speed control

• Door-mounted operator panel for easy access and control

• Compact 12" MCC bucket design

• Space-optimized internal layout

• Designed for seamless integration into existing MCC systems

Technical Specifications

• Model: Square D Model 5

• Bucket Size: 12 Inch Door

• Voltage: 480V

• VFD Rating: 1 HP

• Disconnect Type: Fusible

• Mounting: MCC plug-in (with stabs)

• Control Interface: Door-mounted operator panel

• Application: Motor control (fans, pumps, HVAC systems)

Applications

• Industrial fan systems

• Pump control systems

• HVAC equipment

• Process automation

• Retrofit MCC upgrades

What’s Included

• Complete MCC bucket assembly

• Fusible disconnect

• Installed VFD

• Operator control panel

• Internal wiring (as per approved drawings)

Additional Information

• Wiring diagrams provided prior to production

• Built to match existing MCC configurations

• Custom modifications available upon request
