Schneider Electric / Square D Model 6 - Breaker MCC Bucket - 5 A, 208 V, 15" Height, 3 P | AmpState

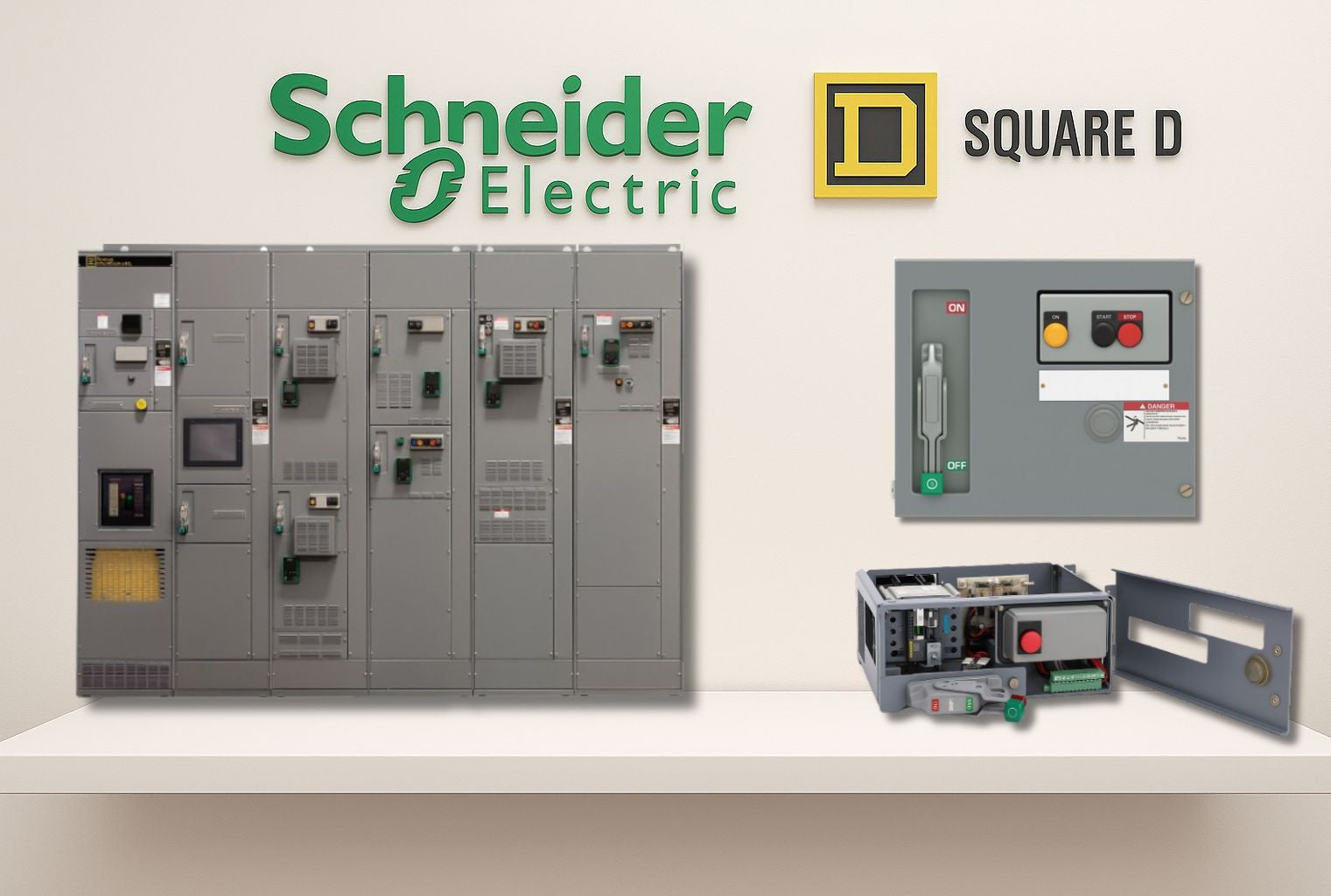

Engineered for industrial motor control applications, the Schneider Electric / Square D Model 6 Breaker MCC Bucket by AmpState delivers a precise, 5 A, 208 V, 3-Pole solution designed to slot into Schneider Electric / Square D Model 6 MCC systems. At 15 inches in height, this MCC bucket matches the form factor for straightforward OEM replacement and retrofits, reducing downtime and preserving system performance.

Direct replacement for Model 6 MCC systems

Designed as a direct replacement for OEM components and retrofits, this MCC bucket preserves the original electrical interface, mounting pattern, and bus connection layout of the Model 6. It allows technicians to refresh aging MCCs without re-engineering the cabinet or wiring harnesses, helping you meet uptime targets and compliance standards.

Key specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 6
• Configuration: Breaker MCC Bucket
• Rating: 5 A, 208 V, 3-Pole
• Height: 15 inches

Why it matters

In motor control centers, the MCC bucket is the critical interface between protection devices and the motor loads. A 5 A, 208 V, 3-Pole bucket is ideal for light to medium start/stop duty, soft starts, and protection coordination in systems where a dedicated breaker bucket is required within Model 6 frames. The 15 inches of height ensures compatibility with standard Schneider Electric enclosures and aids in maintaining consistent field installation layouts.

Who benefits

• Maintenance teams performing OEM replacements to restore factory performance
• Retrofit projects upgrading aging Model 6 MCCs with genuine parts
• Service centers stocking reliable, drop-in MCC bucket components for quick turnaround

Delivery and reliability

AmpState supplies genuine, tested MCC components with global delivery, designed to meet the quality standards you expect from Schneider Electric / Square D parts. Each bucket is inspected for form-fit compatibility to minimize installation risk and ensure consistent electrical performance in your motor control system.

Installation notes

• Verify the enclosure is configured for a 15-inch tall Model 6 bucket and that the bus connectors align with the existing MCC chassis.
• Power down the system and follow lockout/tagout procedures before replacement.
• Mount the bucket using the original hardware, connect the terminals per the enclosure wiring diagram, and test with a qualified technician.
