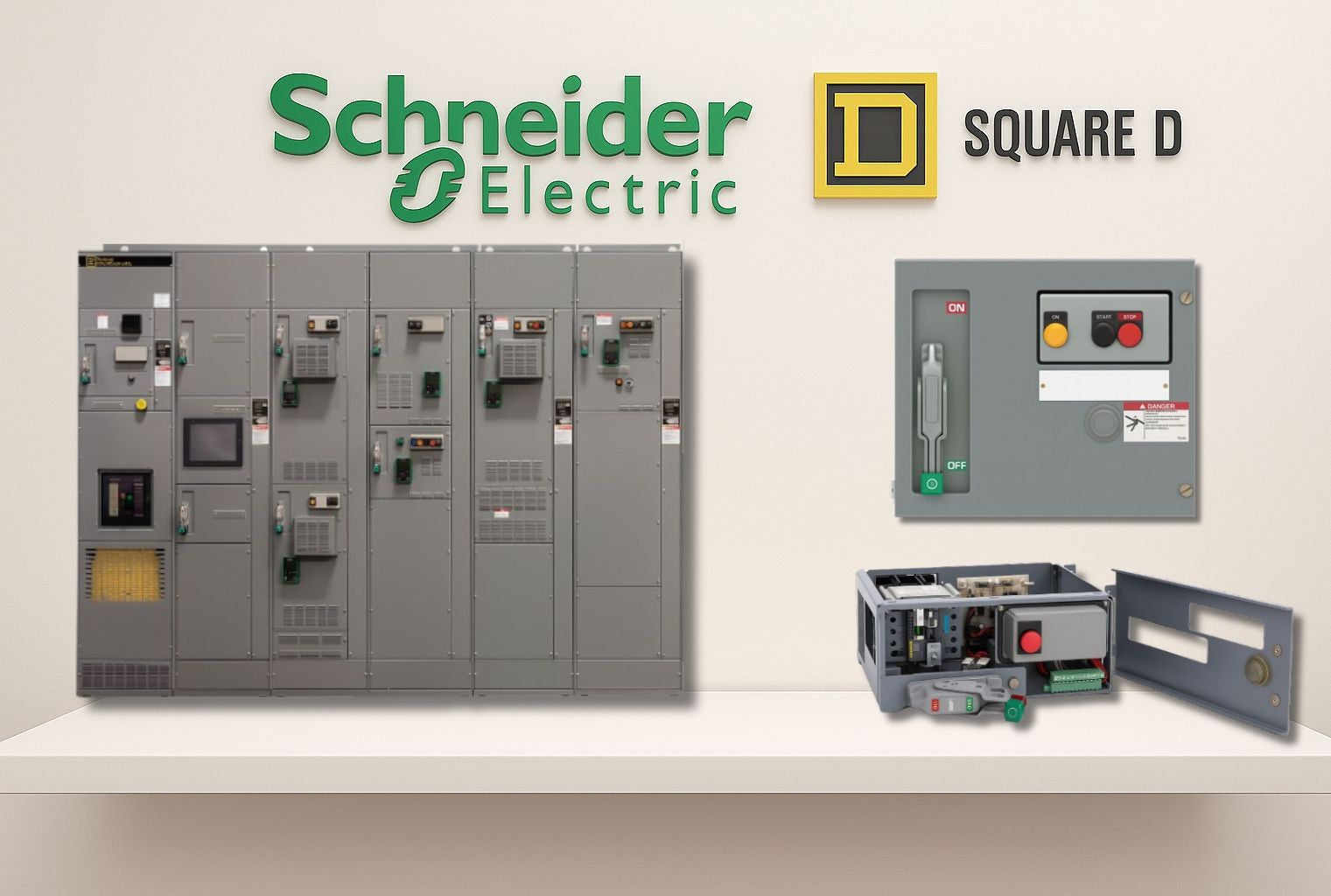

Schneider Electric / Square D Model 6 - Breaker MCC Bucket - 225 A, 480 V, 6" Height, 3 P | AmpState

Designed for demanding industrial environments, the Schneider Electric / Square D Model 6 Breaker MCC Bucket delivers a precise, drop-in solution for 225 A, 480 V, 3-Pole motor control centers. With a compact 6" height, this MCC bucket fits neatly into Schneider Electric / Square D Model 6 systems, making it an exact direct replacement for OEM parts and retrofit upgrades.

• Exact fit for Model 6 MCC systems: Maintains the original mounting pattern, bus bar interface, and footprint to ensure a seamless, downtime-minimizing replacement.
• Electrical rating you can rely on: 225 A continuous current at 480 V across a 3-Pole configuration, supporting demanding motor loads common in pumps, conveyors, and large fans.
• Compact, space-saving design: 6" height with a robust MCC bucket enclosure that fits neatly within standard Model 6 panels without crowding adjacent circuits.
• Direct OEM replacement and retrofit ready: Engineered to substitute OEM Model 6 buckets, reducing retrofit complexity and preserving existing control wiring and interlocks.
• Trusted sourcing from AmpState: AmpState supplies high-quality MCC components with global delivery, ensuring timely availability for maintenance and project timelines.

Ideal use cases

• Facilities operating Schneider Electric / Square D Model 6 MCCs that require a reliable 225 A, 480 V, 3-Pole breaker bucket for ongoing motor control and protection.
• Retrofit projects in manufacturing lines, water treatment plants, mining sites, and packaging operations where downtime is costly and compatibility with existing Model 6 systems is essential.
• Spare-part inventories for plants with critical motors and conveyors, enabling faster repairs and reduced maintenance windows.

Compatibility and installation

1. Confirm that the target panel is a Schneider Electric / Square D Model 6 MCC system and that the bucket is a direct fit replacement for the existing unit.
2. Power down the equipment and follow your site’s lockout/tagout procedures before handling any MCC components.
3. Remove the existing MCC bucket, noting wiring and interlock connections for reference.
4. Align the new 6" high, 3-Pole bucket with the model’s mounting pattern and bus bar interfaces, then secure it in place.
5. Reconnect wiring following OEM torque specs and verify all interlocks and protection circuits are correctly seated and seated in their respective slots.
6. Power up and perform functional checks to confirm proper operation and protection of the connected motor loads.

With its exact Model 6 compatibility, solid 225 A/480 V three-phase capability, and a true retrofit-ready design, this Breaker MCC Bucket from AmpState is a dependable choice for keeping industrial motors protected and systems running smoothly. Trust AmpState for reliable replacements that align with your existing Schneider Electric / Square D infrastructure and delivery needs.
