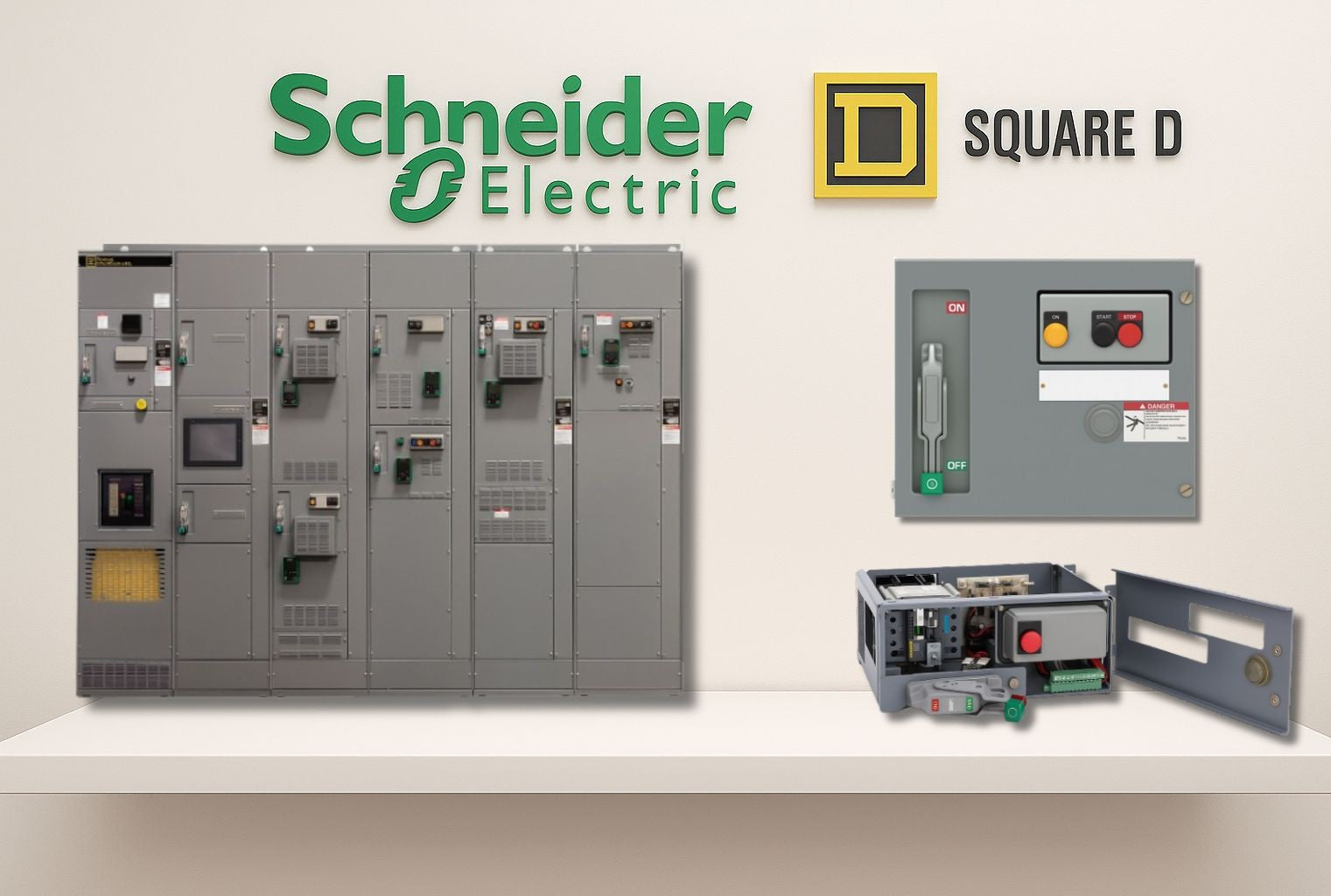

Schneider Electric / Square D Model 6 - Breaker MCC Bucket - 20 A, 600 V, 12" Height, 3 P | AmpState

Designed for demanding industrial motor control, the Schneider Electric / Square D Model 6 Breaker MCC Bucket delivers a precise, ready-to-install solution for 20 A, 600 V, 3-Pole applications. Engineered to slot directly into existing Model 6 MCC panels, this unit serves as a dependable OEM replacement and an effortless retrofit option, helping you maintain consistent protection and control across critical motor circuits.

Key specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 6
• Configuration: Breaker MCC Bucket
• Rating: 20 A, 600 V, 3-Pole
• Height: 12 inches
• Application: Fits Model 6 MCC systems; direct replacement for OEM and retrofit projects
• Supplier: AmpState, with global delivery

Why this replacement matters

• Exact electrical compatibility: Maintains identical trip characteristics and protection behavior to the original equipment, ensuring motor circuits are protected the way you expect.
• Seamless integration: Designed to align with Model 6 bus structures and mounting patterns, reducing alignment and wiring hassles during replacement.
• Rugged, industrial build: Constructed for harsh environments and continuous duty, with secure latching to withstand vibration and mechanical stress.
• Minimized downtime: As a direct replacement, it supports faster maintenance windows and reliable uptime for production lines, pumps, conveyors, and HVAC equipment.
• Reliable sourcing: AmpState ensures global delivery for timely replacements and steady inventory for critical applications.

Ideal use cases

• Replacing a failed or worn MCC bucket within Schneider Electric / Square D Model 6 panels in manufacturing lines, material handling, and process industries.
• Retrofit projects where a like-for-like 20 A, 600 V, 3-Pole bucket is required to preserve existing control logic and wiring schematics.
• Preventive maintenance programs that keep spare MCC components on hand to dramatically reduce unplanned downtime.

Tips for installation and operation

• Verify that the circuit matches 20 A, 600 V, and 3-Pole specifications before substitution.
• Confirm the enclosure height compatibility with the 12-inch MCC bucket and ensure mounting rails and bus connections align with the Model 6 frame.
• Follow standard safety procedures: lockout/tagout, depressurize and discharge any stored energy, and use proper insulated tools during replacement.
• Inspect adjacent components (contactors, fuses, wiring) for wear during replacement and plan any necessary concurrent maintenance.
• Document the part number and installation date to streamline future replacements and maintenance planning.

AmpState is your source for dependable MCC components, delivering robust replacement parts with global reach. This Schneider Electric / Square D Model 6 Breaker MCC Bucket—20 A, 600 V, 3-Pole—offers a direct, installation-ready solution that helps you protect important motor-driven processes while keeping downtime to a minimum.
