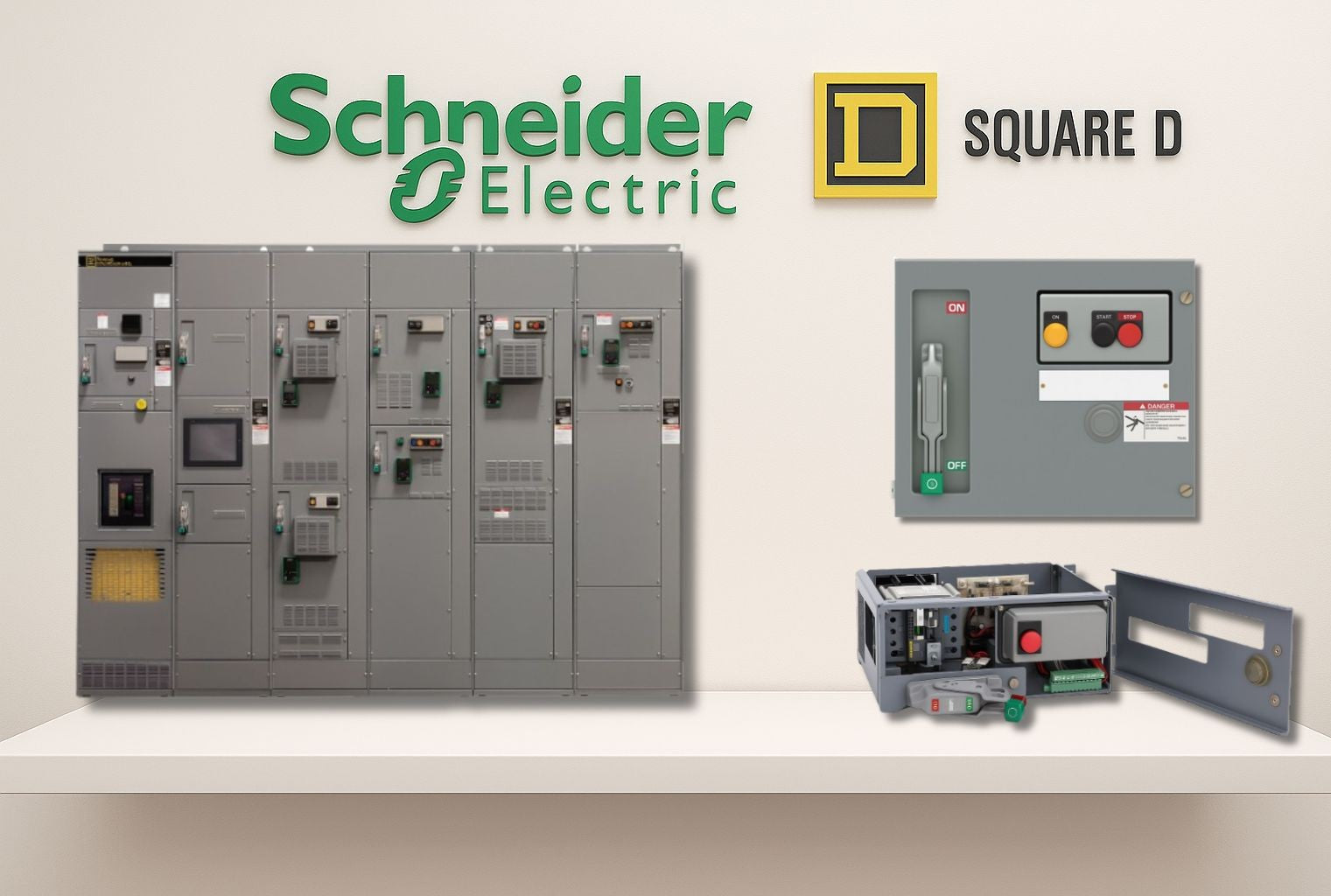

Schneider Electric / Square D Model 6 - Breaker MCC Bucket - 150 A, 240 V, 9" Height, 3 P | AmpState

Engineered for reliability in demanding industrial motor control environments, the Schneider Electric / Square D Model 6 Breaker MCC Bucket delivers a precise, drop-in replacement solution for aging or retrofit applications. With a 150 A, 240 V, 3-Pole configuration and a compact 9" height, this bucket is designed to slip into existing Model 6 MCC systems without costly rework or extensive downtime.

Key specifications at a glance

• Brand: Schneider Electric / Square D
• Model: Square D Model 6
• Configuration: Breaker MCC Bucket
• Rating: 150 A, 240 V, 3-Pole
• Height: 9 inches

Why this MCC bucket matters for your system

• Direct, OEM-compatible replacement: Specifically designed to drop into Schneider Electric / Square D Model 6 MCC architectures, providing a seamless retrofit path that maintains electrical integrity and performance.
• Targeted for motor control centers: The 3-Pole configuration is ideal for distributing and protecting large motor loads in manufacturing, packaging, and process facilities.
• Compact footprint for easier enclosure planning: The 9" height helps maximize available space in control rooms and switchgear cabinets while maintaining robust protection for critical circuits.
• Stable, industry-standard rating: 150 A at 240 V delivers reliable switching and protection for typical MCC bus sections and braking or starting circuits in heavy equipment.

Ideal use cases

• Retrofits of aging Model 6 MCC installations where downtime must be minimized and compatibility is essential.
• New builds that require a proven, compatible MCC bucket for reliable motor starting, protection, and control within compact enclosures.
• Industrial facilities with long-running conveyors, pumps, fans, and other motor-driven equipment that rely on consistent power distribution and protection.

Compatibility, installation and practical considerations

This MCC bucket is purpose-built to integrate with Schneider Electric / Square D Model 6 systems, ensuring alignment with existing field wiring, bus connections, and protective interlocks. When planning installation, verify the 150 A, 240 V, 3-Pole specification matches your circuit demands and that the physical footprint aligns with your enclosure’s internal dimensions. The 9" height is designed to fit standard Model 6 configurations, helping preserve space without sacrificing performance.

AmpState and your mission-critical MCC components

AmpState supplies MCC components, including this Model 6 Breaker MCC Bucket, with a commitment to reliable delivery on a global scale. Whether you’re stocking for planned maintenance or urgent repairs, AmpState’s catalog aims to reduce downtime and keep your motor control infrastructure operating smoothly.
