Schneider Electric / Square D Model 6 - Breaker MCC Bucket - 15 A, 600 V, 6" Height, 3 P | AmpState

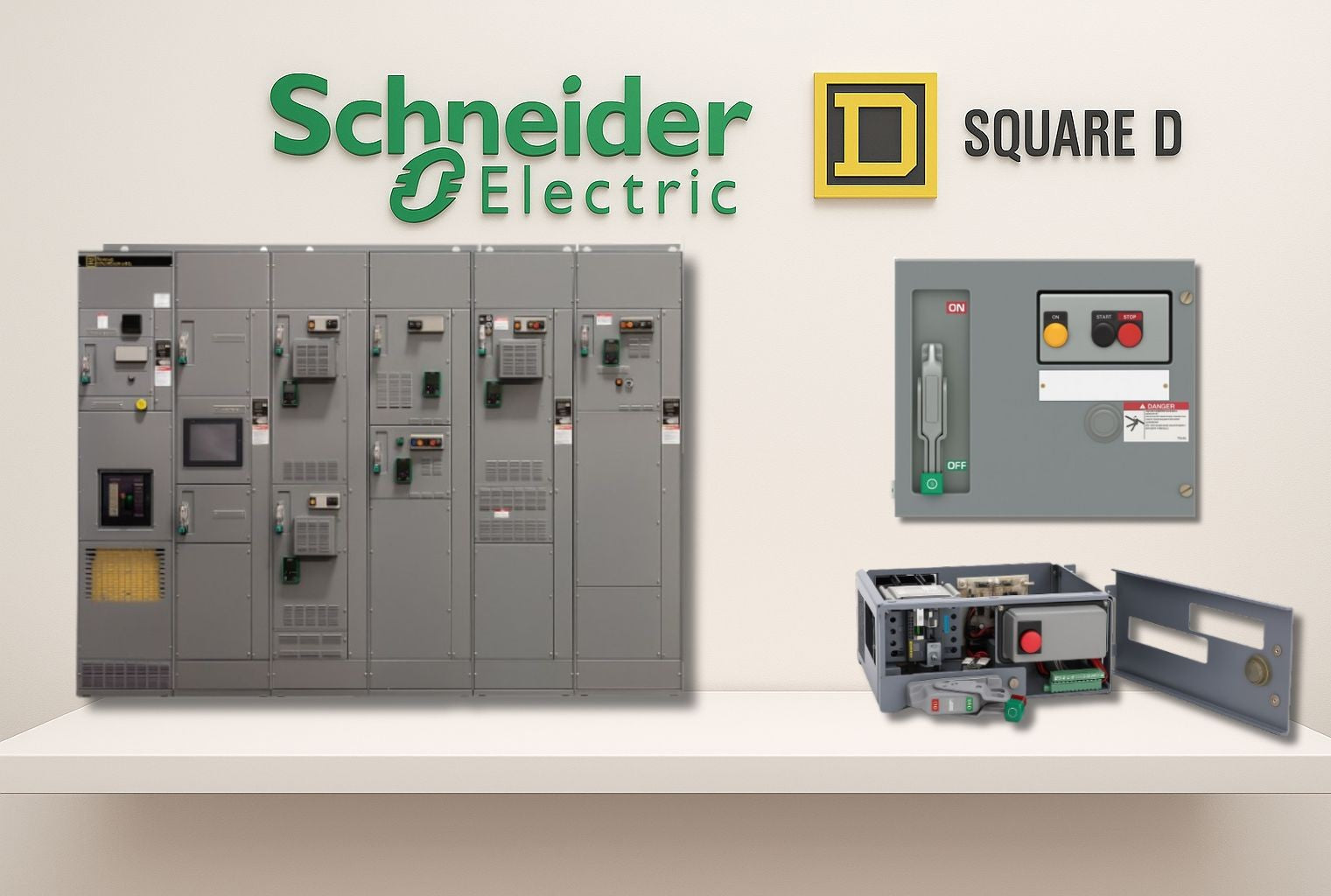

Schneider Electric / Square D Model 6 Breaker MCC Bucket — 15 A, 600 V, 3-Pole, with a 6" height — is engineered to meet the exacting demands of industrial motor control environments. Designed as a direct OEM-compatible replacement, this MCC bucket slides into Schneider Electric / Square D Model 6 MCC systems with precise alignment, preserving original performance and mounting geometry for rapid, reliable retrofits.

Specifications at a glance

• Brand: Schneider Electric / Square D
• Model: Square D Model 6
• Configuration: Breaker MCC Bucket
• Rating: 15 A, 600 V
• Poles: 3-Pole
• Height: 6 inches
• Application: Direct replacement for OEM and retrofit within Model 6 MCC systems

What makes this Model 6 MCC bucket stand out is its OEM-compatible design that preserves critical interfaces—mounting flanges, terminal interfaces, and the overall footprint—so you don’t have to guess about fit or electrical alignment. In real-world terms, that means faster service calls, fewer field modifications, and a smoother return to service after maintenance or upgrades.

The 15 A, 600 V rating and 3-Pole configuration are chosen to support a wide range of motor control applications, from pumps and conveyors to fans and compressor drives. This bucket handles typical MCC loads with reliability, providing the protection and control your motor circuits require without compromising the integrity of the surrounding enclosure or wiring harnesses.

This replacement bucket is ideal for facility maintenance teams, panel builders, and original equipment manufacturers who manage downtime-sensitive motor control centers. By choosing an OEM-compatible component, you maintain consistent electrical characteristics, reducing the risk of mismatched contact timing or misaligned interlocks that can occur with generic substitutes.

Use cases and practical benefits

• Retrofits: Swap worn or damaged Model 6 MCC buckets for an exact-fit unit to restore original protection curves and switching performance without extensive panel rework.
• Field repairs: A ready-to-install bucket minimizes on-site modifications, keeping wiring harnesses, fasteners, and interlocks intact for a quicker recovery.
• New builds and standardization: Stock a readily compatible Model 6 bucket to maintain consistency across multiple MCC assemblies, simplifying maintenance planning and spare part inventories.

Compatibility & installation guidance

• Confirm the target panel is a Schneider Electric / Square D Model 6 MCC and that you require a 3-Pole, 15 A, 600 V bucket.
• Ensure mounting holes, interlocks, and contact interfaces match the existing frame to guarantee seamless seating and safe operation.
• Follow standard electrical safety practices: shut off power, verify de-energization, and use appropriate Lockout/Tagout procedures during replacement.
• When wiring, keep to the original conductor sizes and terminal configurations to maintain reliable electrical connections and avoid voltage drop or overheating in high-load conditions.

AmpState advantage: AmpState supplies high-quality MCC components with global delivery, making it straightforward to source OEM-compatible parts for Schneider Electric / Square D Model 6 systems wherever you operate. This ensures you can maintain fleet-wide consistency and minimize procurement lead times.

Choose the Schneider Electric / Square D Model 6 Breaker MCC Bucket — 15 A, 600 V, 3-Pole, 6" height — for precise fit, dependable performance, and a maintenance path that keeps your motor control center running smoothly and predictably.
