Schneider Electric / Square D Model 6 - Breaker MCC Bucket - 125 A, 600 V, 12" Height, 3 P | AmpState

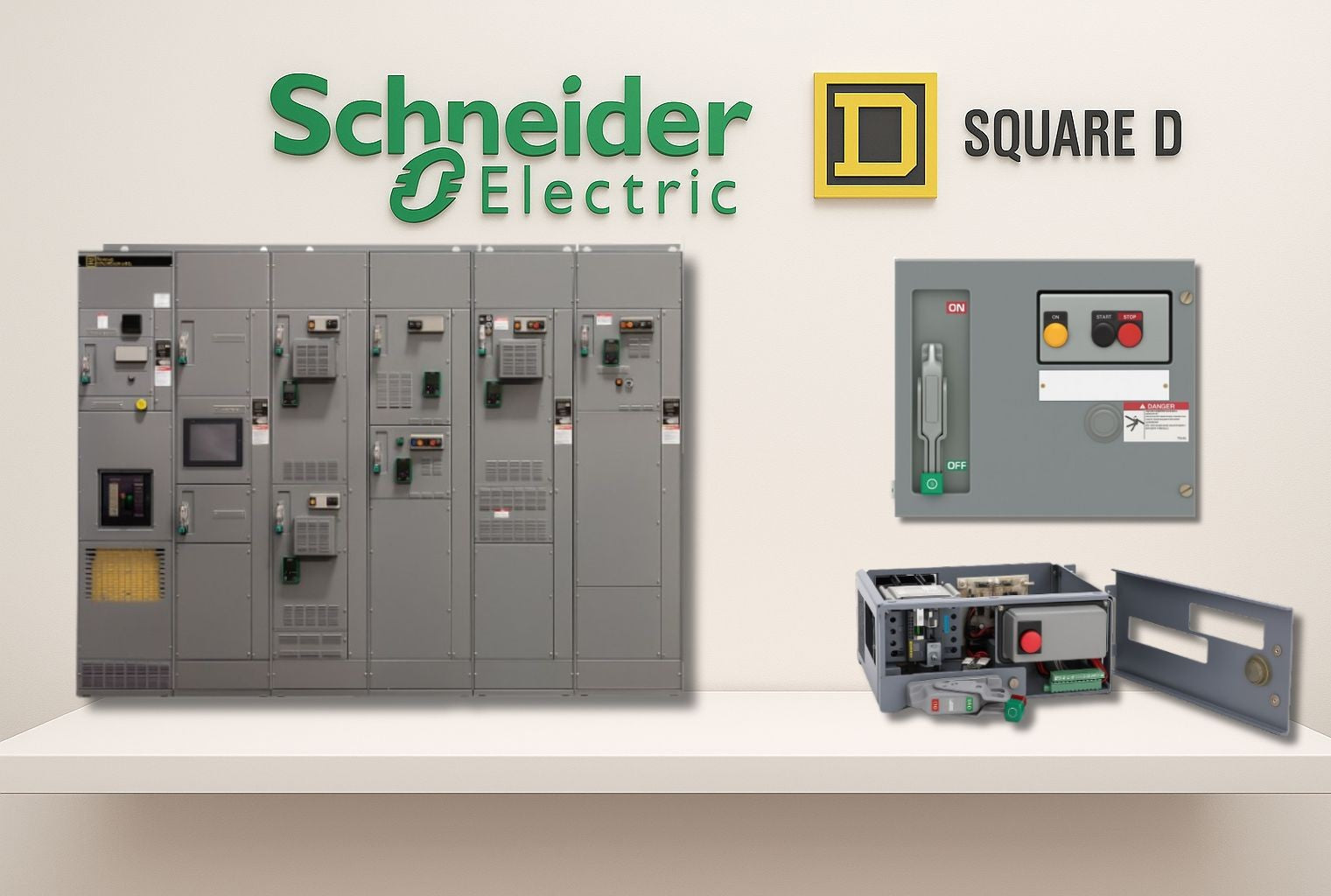

Engineered for industrial motor control, the Schneider Electric / Square D Model 6 Breaker MCC Bucket delivers a precise, ready-to-install solution for 125 A, 600 V, 3-Pole configurations. At 12 inches tall, this MCC bucket is designed to slide into Schneider Electric / Square D Model 6 motor control centers, serving as a direct OEM replacement or retrofit upgrade for established systems.

Why this MCC Bucket stands out

• Exact fit for Model 6 MCC systems: Built to slot into existing enclosures with the same mounting and electrical footprint as the original equipment.
• Robust electrical rating: 125 A continuous current handling at up to 600 V, enabling reliable protection and control of industrial motors.
• Three-pole configuration: Standard trip and switching arrangement compatible with common three-phase motor circuits.
• Compact, consistent height: 12" height matches typical MCC compartments, preserving space and alignment in multi-bucket assemblies.
• OEM replacement and retrofit ready: Works as a direct replacement part to minimize downtime and ensure compatibility with existing upstream/downstream breakers and wiring.

Compatibility & Installation Considerations

This model is specifically designed for Schneider Electric / Square D Model 6 motor control centers. Use in new builds or retrofits where Model 6 MCC buckets are specified. When planning an upgrade, confirm the 125 A, 600 V, 3-Pole rating and the 12" bucket height match your service requirements and enclosure dimensions.

Ideal Use Scenarios

• Upgrading aging MCCs in manufacturing lines, pumps, conveyors, and processing equipment where Model 6 is the established framework.
• OEM replacement projects to minimize changes to wiring schematics and bus configurations.
• Retrofit projects that aim to restore fault-tolerant motor control with an industry-standard bucket assembly.

Specifications at a Glance

• Brand: Schneider Electric / Square D
• Model: Square D Model 6
• Configuration: Breaker MCC Bucket
• Rating: 125 A, 600 V, 3-Pole
• Height: 12 inches
• Application: Industrial motor control centers
• Note: Direct replacement for OEM and retrofit applications

AmpState supplies high-quality MCC components with global delivery, helping you keep critical motor control systems running smoothly with parts you can trust.
