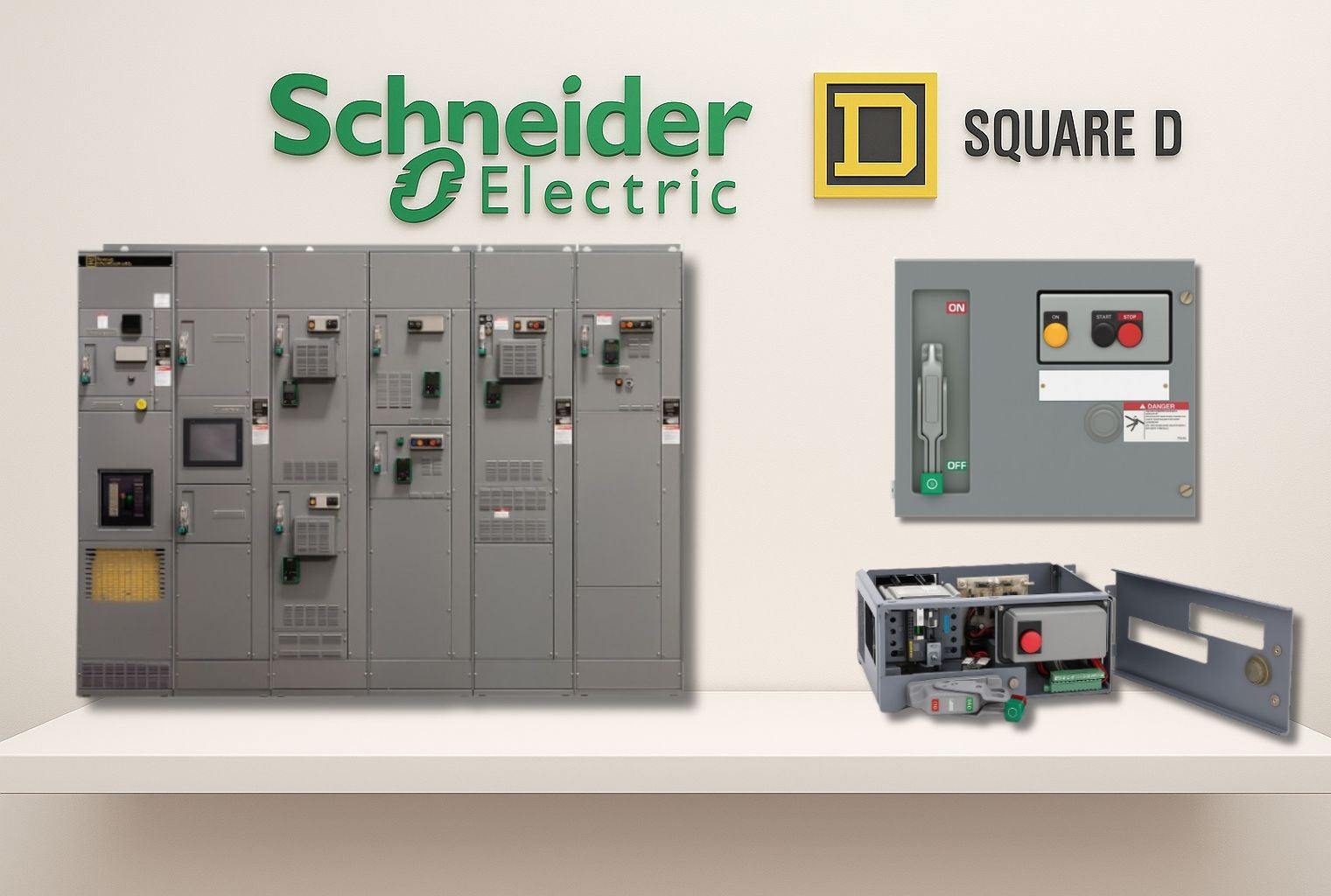

Schneider Electric / Square D Model 6 - Breaker MCC Bucket - 100 A, 600 V, 24" Height, 3 P | AmpState

The Schneider Electric / Square D Model 6 Breaker MCC Bucket delivers a precise, plug-in solution for industrial motor control needs. Engineered as a direct replacement for Model 6 MCC systems, this unit provides dependable 100 A, 600 V, 3-pole performance, ensuring your three-phase applications stay protected, efficient, and compliant with your existing infrastructure.

Key features at a glance

• Brand & compatibility: Schneider Electric / Square D, designed specifically for Model 6 MCC systems
• Configuration: Breaker MCC Bucket in a 3-pole arrangement
• Rated current & voltage: 100 A, up to 600 V
• Physical footprint: 24" height to match standard Model 6 frames
• OEM replacement capability: Direct replacement for original equipment manufacturer (OEM) components and retrofit projects

This MCC bucket is built for reliability in demanding industrial environments where motor loads demand consistent protection and straightforward maintenance. The 3-pole configuration supports balanced three-phase systems, while the 100 A rating accommodates a wide range of motor sizes and distribution needs. The 24" height aligns with common Model 6 frame dimensions, enabling seamless integration without extensive modification.

Ideal use cases

• Replacing worn or aging MCC buckets in existing Schneider Electric / Square D Model 6 systems to restore original performance and protect motor circuits
• Retrofit projects where upgrading to a compatible Model 6 bucket simplifies maintenance and inventory management
• New installations that require a proven, OEM-compatible 3-pole, 100 A, 600 V MCC component
• Spare parts strategy for plant maintenance teams aiming to minimize downtime during outages

Why this MCC bucket matters for your operation

• Reliable protection for motors: The 100 A, 600 V rating ensures your motor starters operate within safe limits, reducing the risk of electrical faults and downtime.
• Seamless integration: As an OEM-compatible replacement, it drops into Model 6 MCC assemblies without bespoke adaptations, speeding up procurement and installation.
• Maintenance efficiency: Standardized, readily available parts simplify stocking and service, helping maintenance teams keep operations flowing.

Installation and care (practical tips)

• Verify the bucket is intended for a Model 6 MCC frame before swapping components to avoid misalignment with bus bars or mounting hardware.
• Power down the panel and follow your facility’s slip-free lockout/tagout procedures prior to replacement.
• Consult your electrical drawings to confirm correct termination points and ensure conductor sizing matches the 100 A rating.
• Schedule replacements during planned maintenance windows to minimize impact on production schedules.

Why choose AmpState

AmpState supplies high-quality MCC components with global delivery, streamlining procurement for international sites and regional facilities alike. When you select this Square D Model 6 Breaker MCC Bucket, you’re choosing a direct-path solution backed by our commitment to compatibility, availability, and dependable performance.
