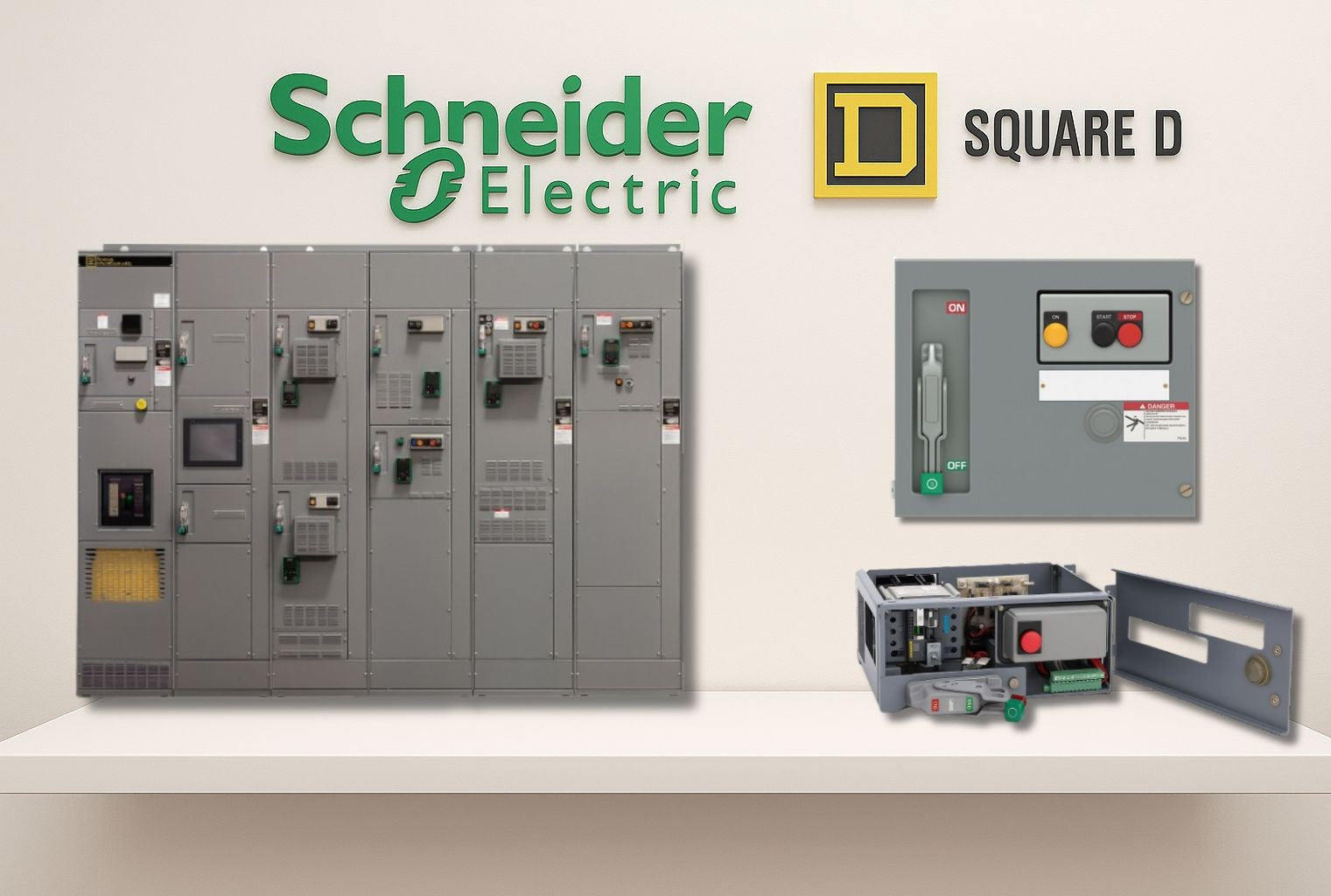

Schneider Electric / Square D Model 6 - Breaker MCC Bucket - 100 A, 240 V, 15" Height, 3 P | AmpState

Engineered for robust industrial motor control, the Schneider Electric / Square D Model 6 Breaker MCC Bucket delivers reliable 100 A, 240 V, 3-Pole performance within Model 6 MCC systems. At 15 inches tall, this MCC bucket is sized to fit standard Schneider Electric enclosures, making it an ideal direct replacement for OEM components or a seamless retrofit for aging systems.

Why this Breaker MCC Bucket stands out

• Direct OEM replacement for Schneider Electric / Square D Model 6 MCC systems, ensuring seamless compatibility and performance.
• 100 A rating at 240 V with a 3-Pole configuration to handle mid-range motor loads with confidence.
• 15" height designed to align with common Model 6 MCC footprints, minimizing enclosure modification.
• Retrofit-friendly design to reduce installation downtime and simplify wiring and mounting.
• Backed by AmpState’s global delivery network, providing reliable access to critical MCC components wherever you are.

Key specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 6
• Configuration: Breaker MCC Bucket
• Rating: 100 A, 240 V, 3-Pole
• Height: 15 inches

Ideal applications and use cases

• Motor control centers in manufacturing lines, packaging systems, and automation cells that rely on Model 6 MCC architecture.
• Retrofits of aging MCC components to restore reliability without a full enclosure redesign.
• Industrial pumps, conveyors, fans, and HVAC equipment that require a sturdy 3-Pole breaker bucket.

Practical insights and installation considerations

When replacing or retrofitting, verify that the existing Model 6 MCC framework accepts a 15" tall, 3-Pole 100 A bucket. This unit is designed to slot into Schneider Electric / Square D Model 6 systems with minimal modification, helping you avoid extended downtime and costly rework. For ongoing maintenance, pairing this bucket with compatible line-side components from the Model 6 family helps maintain consistent electrical performance and protection across your motor control infrastructure.
