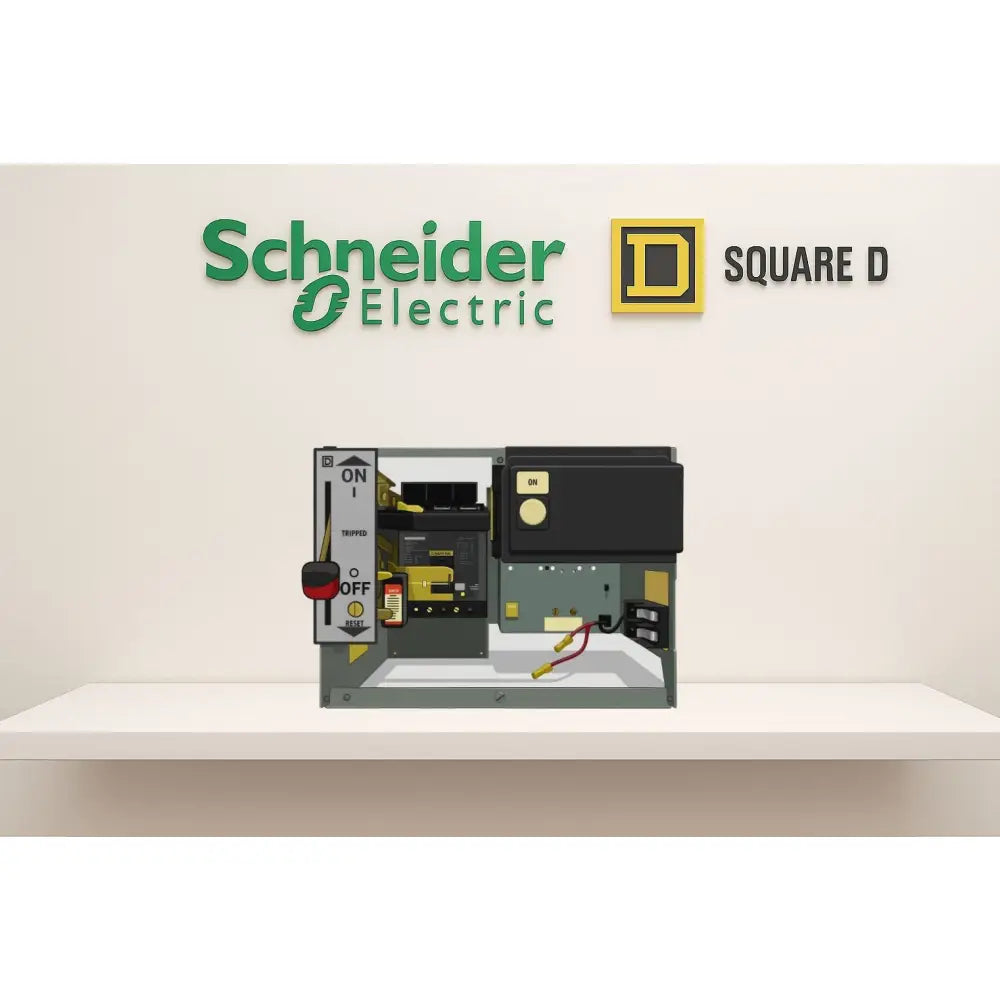

Schneider Electric / Square D Model 5 - Breaker MCC Bucket - 90 A, 208 V, 9" Height, 3 P | AmpState

Engineered for demanding industrial motor control environments, the Schneider Electric / Square D Model 5 Breaker MCC Bucket delivers a precise, reliable 90 A, 208 V, 3-Pole solution designed to slot directly into Model 5 MCC frames. At a compact 9" height, this MCC bucket provides sturdy switching for motor loads, helping protect equipment and maintain steady production flow in manufacturing, processing plants, and large facilities.

Key specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 5
• Configuration: Breaker MCC Bucket
• Rating: 90 A, 208 V, 3-Pole
• Height: 9 inches
• Application: Direct replacement for OEM and retrofit in Model 5 MCC systems

Why this MCC bucket stands out

When downtime matters, you need a replacement part that fits right, performs consistently, and is built to the same standards as your original equipment. This Model 5 MCC bucket is purpose-built for Schneider Electric / Square D systems, ensuring seamless electrical and mechanical compatibility with minimal rework. The 3-Pole configuration is ideal for motor control applications requiring reliable phase alignment, and the 90 A rating provides robust protection for typical industrial motors and feeders.

Ideal use cases

• Replacing a failed or aging MCC bucket in existing Model 5 panels to restore full control capability quickly
• Retrofits and upgrades within industrial motor control centers to maintain consistent performance
• Spare-part readiness for service teams that prioritize rapid field replacements
• New installations that require a certified, OEM-compatible Component within Schneider Electric / Square D infrastructure

What problems it solves

• Eliminates compatibility guesswork by providing a direct replacement that matches OEM specifications
• Reduces downtime during maintenance or panel upgrades with a plug-and-play style fit
• Maintains system protection and reliability for critical motor loads in manufacturing environments

Practical tips for installation and use

• Verify Model 5 MCC frame compatibility and confirm the 9" bucket height aligns with current panel clearances
• Inspect bus connections and wiring routes to ensure clean, unobstructed installation and secure terminations
• Coordinate replacement during planned maintenance windows to minimize production disruption
• Keep a diagnostic spare on hand for rapid response in maintenance programs

With AmpState’s commitment to quality and global delivery, this 90 A, 208 V, 3-Pole MCC bucket is a dependable, OEM-aligned choice for reliable motor control in demanding industrial settings. It’s not just a part—it’s a strategic upgrade to keep your Schneider Electric / Square D Model 5 systems operating smoothly and safely.
