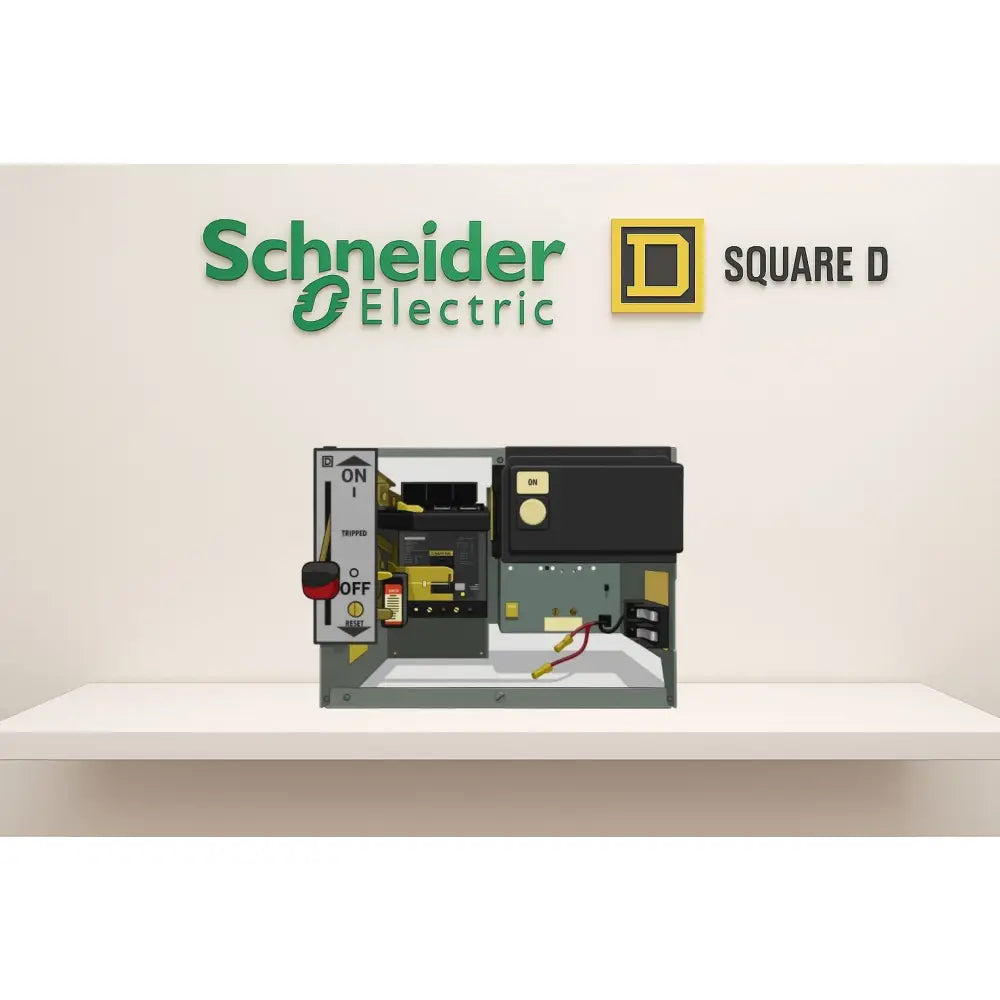

Schneider Electric / Square D Model 5 - Breaker MCC Bucket - 250 A, 600 V, 24" Height, 3 P | AmpState

The Schneider Electric / Square D Model 5 Breaker MCC Bucket is a purpose-built replacement module designed for industrial motor control centers. Engineered to support a 250 A, 600 V, 3-Pole configuration, this 24" tall bucket slides directly into Schneider Electric / Square D Model 5 MCC systems, delivering reliable, OEM-aligned performance with retrofit-friendly simplicity.

Key specifications at a glance

• Brand: Schneider Electric / Square D
• Model: Square D Model 5
• Configuration: Breaker MCC Bucket
• Rating: 250 A, 600 V, 3-Pole
• Height: 24 inches
• Application: Industrial motor control centers (MCCs)
• Use case: Direct replacement for OEM parts and retrofit installations

Why this Model 5 MCC Bucket stands out

• OEM-compatible fit — specifically designed to slot into Schneider Electric / Square D Model 5 MCC systems, ensuring precise alignment of electrical interfaces, bus connections, and mounting holes. This minimizes retrofit effort and reduces downtime during maintenance or upgrades.
• Proven reliability for demanding environments — built to handle continuous duty in industrial settings, delivering stable performance for motor control applications across manufacturing floors, processing plants, and heavy equipment operations.
• Clear, scalable capacity — the 250 A, 600 V rating across a 3-Pole configuration supports a wide range of medium-to-large motor loads, enabling you to consolidate and standardize control hardware without over-sizing or under-sizing components.
• Easy integration and logistics — designed for straightforward installation within existing Model 5 MCC bays, with AmpState providing reliable global delivery to minimize project delays and keep critical systems online.

Ideal use scenarios

• Mid-to-large industrial facilities with three-phase motors for conveyors, pumps, compressors, fans, and mixers
• Retrofit projects where older MCC buckets must be replaced with a compatible, readily available component
• New installations in existing Model 5 MCC footprints that demand consistent nine- and ten-digit electrical characteristics
• Maintenance shutdowns where minimizing space, wiring changes, and downtime is essential

What problems this bucket solves

• Eliminates fitment guesswork by offering a true Model 5 MCC-compatible replacement
• Reduces downtime during replacement thanks to a direct-fit design and familiar mounting geometry
• Maintains consistent electrical performance across your motor control infrastructure, supporting predictable protective coordination
• Streamlines procurement with a standardized 250 A, 600 V, 3-Pole solution that aligns with existing MCC hardware and spares inventories

Practical tips for getting the most from this replacement bucket

• Verify system compatibility by checking the Model 5 MCC bay dimensions and bolt patterns before installation.
• Plan preventive maintenance around the 24-inch bucket height to ensure clear access for wiring, lugs, and interlocks.
• Have compatible fusing, signaling, and interlock components on hand to complete the retrofit in one service window.
• Coordinate with AmpState for delivery timing to minimize disruption in production lines or critical utilities.

Designed for reliability, compatibility, and ease of use, the Schneider Electric / Square D Model 5 Breaker MCC Bucket (250 A, 600 V, 3-Pole, 24" height) from AmpState is the practical, OEM-aligned replacement choice for Model 5 MCC systems—delivering smooth operation today and dependable performance for years to come.
