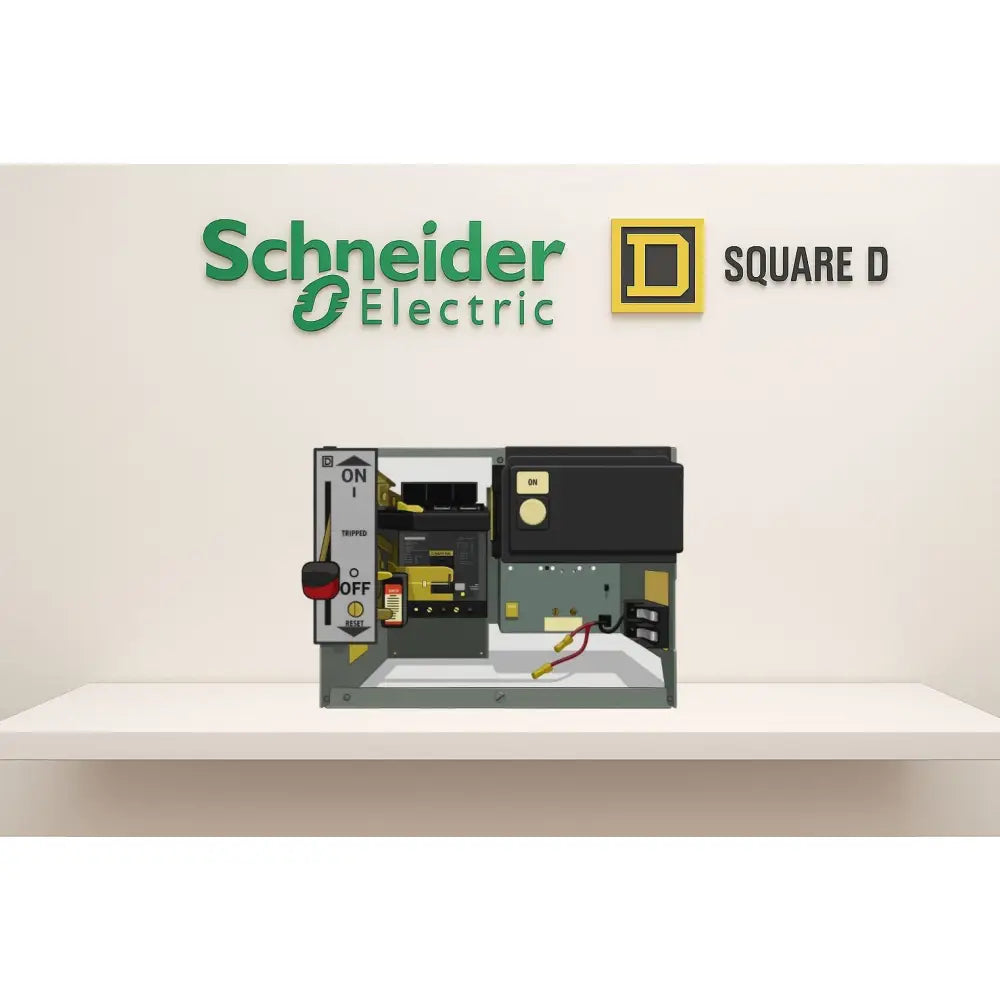

Schneider Electric / Square D Model 5 - Breaker MCC Bucket - 250 A, 480 V, 48" Height, 3 P | AmpState

Engineered for demanding industrial motor control environments, the Schneider Electric / Square D Model 5 Breaker MCC Bucket from AmpState provides a precise OEM replacement for 250 A, 480 V, 3-Pole configurations. With a tall 48" footprint designed to fit Model 5 MCC systems, this bucket swaps in quickly to keep essential equipment online and minimize retrofit downtime.

• Direct OEM replacement for Schneider Electric / Square D Model 5 MCC cabinets, enabling seamless retrofits without modifications to your enclosure.
• rated for 250 A at 480 V, 3-Pole to match your existing protection scheme and motor loads.
• 48" height ensures proper physical fit within standard Model 5 MCC configurations.
• Breaker MCC bucket design facilitates straightforward installation and dependable electrical connection within the MCC row.
• Maintains system performance by preserving original protection characteristics and coordination when replacing worn or obsolete components.
• Rugged construction built to withstand industrial duty, temperature variations, and frequent switching in demanding environments.
• AmpState global delivery provides reliable access to essential MCC components for projects worldwide.

Use cases and ideal applications

This Model 5 MCC bucket is purpose-built for facilities with Schneider Electric / Square D motor control centers needing a dependable 250 A, 480 V, 3-Pole replacement. It’s well-suited for manufacturing lines, pumping and irrigation systems, conveyors, processing plants, and other industrial operations where uptime and compatibility with existing Model 5 MCC hardware are critical.

Who should consider this replacement

• Maintenance and reliability teams seeking a true OEM substitute for aging Model 5 MCC buckets
• Industrial service contractors performing retrofits or refurbishments in facilities using Schneider Electric / Square D equipment
• OEMs and integrators needing consistent, field-ready components with global availability

Installation and compatibility notes

Designed as a direct fit for Schneider Electric / Square D Model 5 MCC systems, this breaker's MCC bucket should be installed by qualified personnel following all safety and electrical codes. Confirm that the load requirements (250 A, 480 V, 3-Pole) and the 48" height match your existing MCC configuration to ensure a seamless replacement.

Key specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 5
• Configuration: Breaker MCC Bucket
• Rating: 250 A, 480 V, 3-Pole
• Height: 48 inches

With AmpState, you’re choosing a proven source for MCC components backed by global delivery. This Model 5 Breaker MCC Bucket delivers a concrete, compatible upgrade path for your Schneider Electric / Square D MCCs, helping you maintain reliable motor control performance and minimize costly downtime. If you’re planning a retrofit or stocking spare parts for ongoing maintenance, this replacement bucket is a practical, industry-ready choice.
