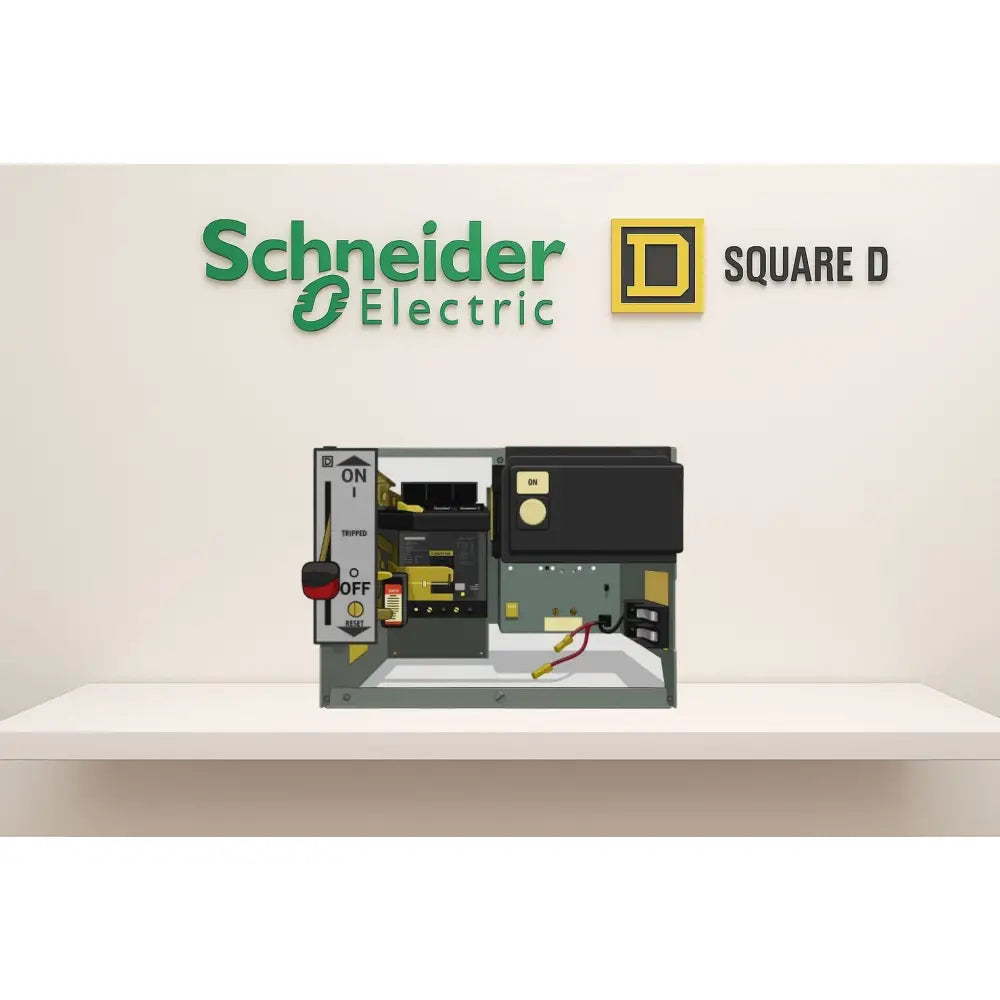

Schneider Electric / Square D Model 5 - Breaker MCC Bucket - 250 A, 480 V, 36" Height, 3 P | AmpState

Engineered for industrial motor control centers, the Schneider Electric / Square D Model 5 Breaker MCC Bucket delivers rugged reliability for high-demand applications. This 250 A, 480 V, 3-Pole bucket is designed as a direct OEM replacement within Model 5 MCC systems, making retrofits and upgrades straightforward with minimal downtime.

Key specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 5
• Configuration: Breaker MCC Bucket
• Rating: 250 A, 480 V, 3-Pole
• Height: 36 inches
• Application: Compatible with Model 5 MCC systems for OEM replacement and retrofits

Why this MCC bucket matters

In demanding industrial environments, uptime and consistent performance matter. This Model 5 Breaker MCC Bucket is built to slot directly into your existing Schneider Electric / Square D infrastructure, preserving bus routing and mounting interfaces while delivering reliable three‑phase power for large motors. The 250 A rating provides solid headroom for startup and running current, and the 480 V specification supports a wide range of motor and drive configurations.

Ideal use scenarios

• Upgrading aging motor control centers in manufacturing lines, ensuring compatibility with current Model 5 layouts
• Retrofits for pumps, conveyors, fans, and large HVAC or processing equipment
• New installations that require a proven OEM-compatible MCC bucket—minimizing engineering alignment work
• Spare-part strategy for plants using Schneider Electric / Square D Model 5 MCC systems

What makes it a smart choice

Choose this MCC bucket for a seamless fit within Model 5 architecture, reducing installation risk and downtime. Its direct replacement capability means you don’t have to redesign wiring harnesses or bus connections, and you maintain consistent performance across your motor control network. The 36" height aligns with standard Model 5 buckets, ensuring reliable stacking, accessibility, and serviceability in dense electrical rooms.

Delivery and support: AmpState sources authentic Schneider Electric / Square D MCC components and offers global delivery, helping you maintain supply continuity for critical maintenance and upgrades.
