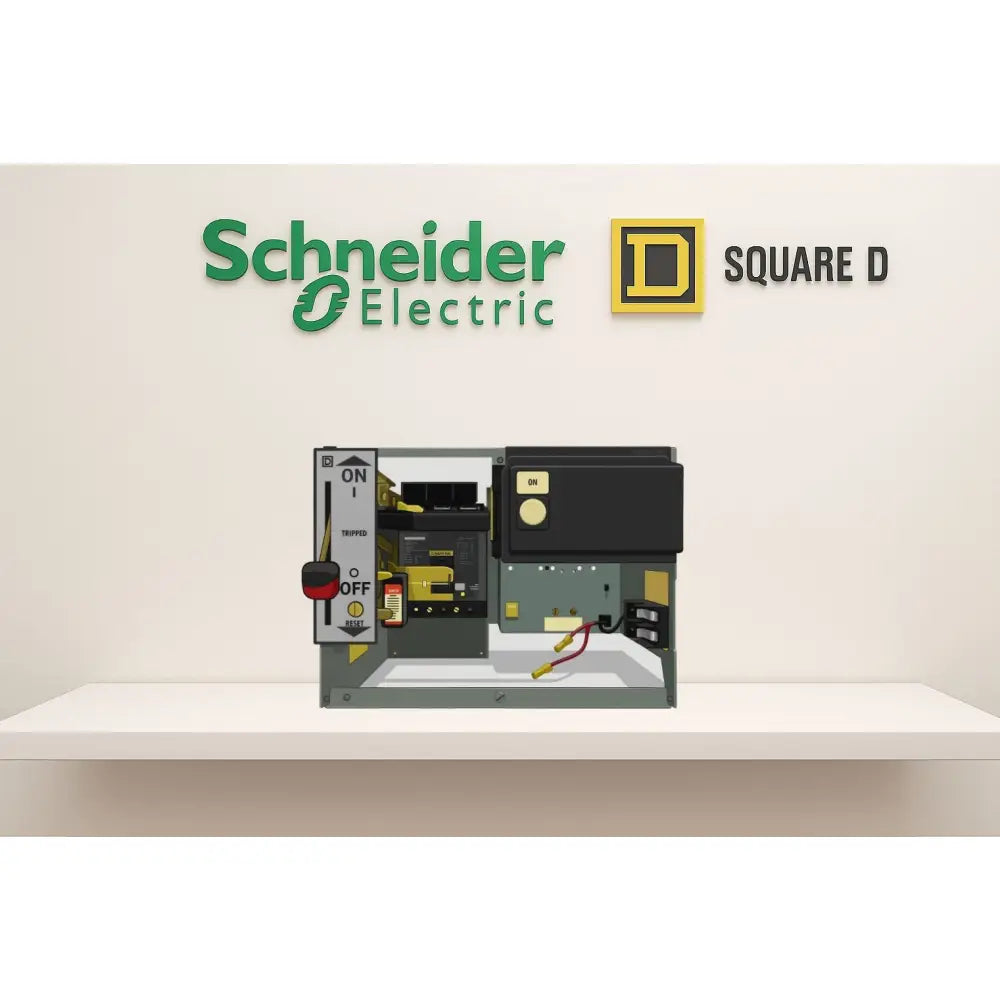

Schneider Electric / Square D Model 5 - Breaker MCC Bucket - 250 A, 240 V, 48" Height, 3 P | AmpState

Schneider Electric / Square D Model 5 Breaker MCC Bucket is engineered for industrial motor control applications that demand a robust 250 A, 240 V, 3-Pole configuration. This MCC bucket is designed to slot into Schneider Electric / Square D Model 5 MCC systems as a direct OEM replacement or retrofit option, providing a dependable path to upgrade, repair, or expand your motor control center. The unit’s 48-inch height matches standard Model 5 assemblies, ensuring a seamless, plug‑in integration with minimal downtime.

• Configuration: Breaker MCC Bucket compatible with Model 5 MCC systems
• Electrical Rating: 250 A, 240 V, 3-Pole
• Physical Fit: 48-inch height, designed to align with original Model 5 dimensions
• Brand and Line: Schneider Electric / Square D, Model 5
• Installation/Use: Direct replacement for OEM Model 5 buckets and retrofit applications

This bucket is ideal for facilities handling demanding motor loads in manufacturing, processing, and material handling environments. Use it for OEM replacements in aging Model 5 MCCs, or as a reliable retrofit component to modernize control infrastructure without changing the surrounding cabinet architecture. By matching the exact electrical and mechanical interface of the Model 5, it helps shorten installation time and maintain consistent performance across your motor-control fleet.

Why choose this Model 5 MCC bucket — purpose-built to integrate with Schneider Electric / Square D Model 5 architectures, it preserves the intended protection and control characteristics of your existing system. The 3-Pole design provides balanced, dependable motor protection for three-phase equipment, while the 250 A, 240 V rating supports a wide range of industrial motors and drives. The 48-inch height ensures compatibility with standard MCC buswork and mounting arrangements, reducing the need for custom fabrication during upgrades or replacements.

Specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 5
• Configuration: Breaker MCC Bucket
• Rating: 250 A, 240 V, 3-Pole
• Height: 48 inches

Compatibility & deployment notes: Designed for direct fit within Schneider Electric / Square D Model 5 MCC systems, making OEM replacement and retrofits straightforward. Verify alignment with your existing MCC frame, bus connections, and mounting hardware to ensure a smooth installation and reliable operation. AmpState supports global delivery, so whether your operation is on site or at a remote location, you’ll have access to this essential MCC component when you need it.
