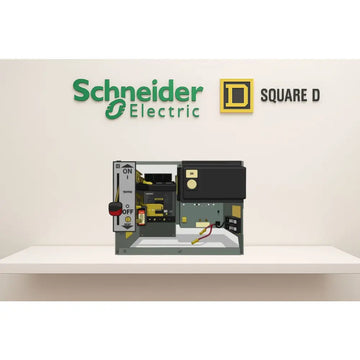

Schneider Electric / Square D Model 5 - Breaker MCC Bucket - 100 A, 480 V, 48" Height, 3 P | AmpState

When your industrial motor control center demands dependable, OEM-compatible components, the Schneider Electric / Square D Model 5 Breaker MCC Bucket delivers a precise fit and reliable performance. Engineered as a 100 A, 480 V, 3-Pole unit, this MCC bucket is built to integrate seamlessly with Model 5 motor control center systems, making it an ideal direct replacement for aging hardware or a retrofitting solution for system upgrades.

Key specifications at a glance

• Brand: Schneider Electric / Square D
• Model: Square D Model 5
• Configuration: Breaker MCC Bucket
• Rating: 100 A, 480 V, 3-Pole
• Height: 48 inches
• Application: Direct replacement for OEM parts and retrofit within Model 5 MCC systems

Why this bucket matters for your operation

Motor control centers rely on robust, compatible components to minimize downtime and maximize uptime. This Model 5 MCC bucket is purpose-built to slot into Schneider Electric / Square D Model 5 configurations, preserving existing wiring schemes and mounting patterns. It’s designed for continuous-duty environments in manufacturing, processing, and facilities with demanding motor loads, providing reliable switching and control for pumps, conveyors, fans, compressors, and other heavy equipment.

Unique value propositions

• OEM-compatible fit: Specifically engineered to align with Model 5 MCC cabinets, ensuring straightforward installation and predictable clearance.
• Dedicated for 3-Pole protection: The 3-Pole configuration supports synchronized control of three-phase motors, simplifying protection schemes and coordination with upstream breakers.
• Retrofit-ready: A practical option for upgrading aging MCC buckets without redesigning entire panels, helping you maintain consistent electrical architecture.
• Global delivery through AmpState: Access to quality MCC components with reliable shipping and support across regions.

Ideal use cases

• Replacing failed or degraded Model 5 MCC buckets in existing facilities without changing the cabinet footprint.
• Retrofits to upgrade motor control capabilities in aging plants while preserving original electrical layouts.
• New installations where a 100 A, 480 V, 3-Pole MCC bucket is required within Schneider Electric / Square D Model 5 systems.

Compatibility and installation considerations

This MCC bucket is designed as a direct replacement for OEM components within Schneider Electric / Square D Model 5 motor control centers. Before installation, verify the cabinet’s mounting patterns and clearance to ensure a smooth integration. If you’re upgrading or stocking maintenance inventories, this unit provides a compatible, dependable option that aligns with existing control philosophies and safety standards for three-phase motor control.

About AmpState

AmpState supplies high-quality MCC components with global delivery, enabling facilities to source authentic, compatible parts efficiently. This Model 5 Breaker MCC Bucket reflects AmpState’s focus on precision, durability, and ease of integration in demanding industrial environments.
