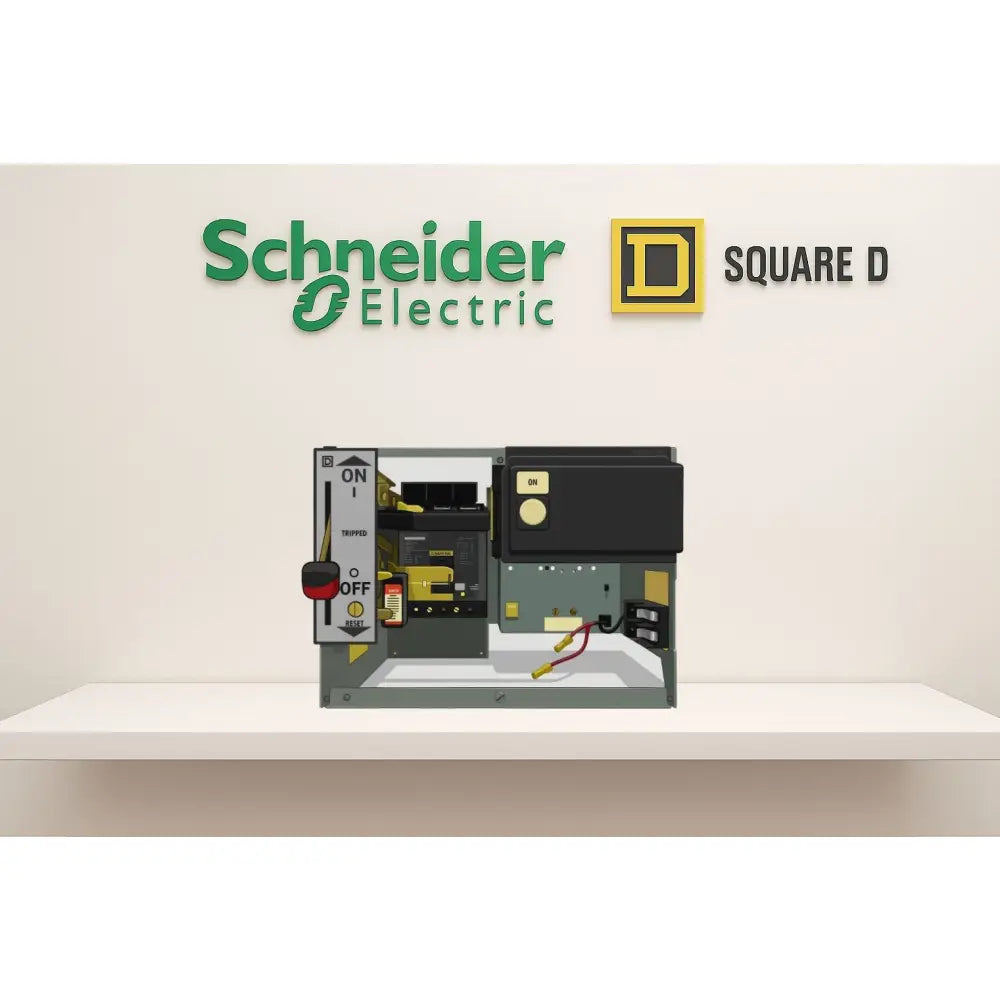

Schneider Electric / Square D Model 5 - Breaker MCC Bucket - 100 A, 480 V, 36" Height, 3 P | AmpState

Designed for industrial motor control environments, the Schneider Electric / Square D Model 5 Breaker MCC Bucket from AmpState delivers a precise 100 A, 480 V, 3-Pole configuration as a direct replacement and retrofit option for Model 5 MCC systems. With a 36" height, it fits seamlessly into standard enclosures, ensuring reliable protection and control for essential motor circuits.

Direct OEM replacement and retrofit-ready

This MCC bucket is engineered to slot into Schneider Electric / Square D Model 5 MCC systems without altering the surrounding architecture. It preserves the original electrical interface and trip characteristics, making it an ideal choice for maintenance outages, OEM replacements, or system upgrades where downtime needs to be minimized and compatibility is critical.

Key specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 5
• Configuration: Breaker MCC Bucket
• Rating: 100 A, 480 V, 3-Pole
• Height: 36 inches
• Application: Fits into Model 5 MCC systems for OEM-compatible replacements

Why this matters

In industrial environments, consistent motor protection and reliable power distribution are non-negotiable. This Model 5 MCC bucket delivers the exact current, voltage, and three-phase configuration needed to support demanding loads, while maintaining the established protective coordination of your existing panel. Its design reduces integration risk during retrofits and service events, helping you keep critical equipment online with minimal disruption.

Who it’s ideal for

• Maintenance teams performing OEM replacements or retrofits in Model 5 motor control centers
• Facilities upgrading to standardized 100 A, 480 V, 3-Pole protection within existing Schneider Electric infrastructure
• Service providers and distributors needing reliable, drop-in MCC components with global delivery

Practical insights and use cases

Use this MCC bucket to support motor-driven systems that demand stable 100 A protection at 480 V in a three-phase setup. It’s well-suited for existing Model 5 installations where downtime must be minimized and exact compatibility with the original Schneider Electric design is required. When planning maintenance, keeping a compatible replacement bucket on hand helps speed service, reduces surprises during outages, and aligns with standardized parts inventories.

Delivery and support

AmpState supplies high-integrity MCC components with global delivery, backed by expert support to assist with selection, installation considerations, and ongoing maintenance of your motor-control infrastructure.
