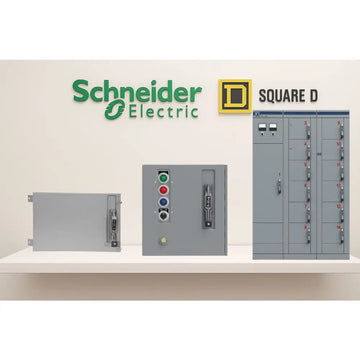

Schneider Electric / Square D Model 4 - Breaker MCC Bucket - 5 A, 480 V, 15" Height, 3 P | AmpState

Engineered for demanding industrial motor control panels, the Schneider Electric / Square D Model 4 Breaker MCC Bucket delivers precise protection with a 5 A, 480 V, 3-Pole configuration. Designed to drop directly into Model 4 MCC systems, it serves as a direct OEM replacement or retrofit option, helping you minimize downtime and maintain seamless interface with existing equipment.

• Brand: Schneider Electric / Square D
• Model: Square D Model 4
• Configuration: Breaker MCC Bucket
• Rating: 5 A, 480 V, 3-Pole
• Height: 15 inches
• Compatibility: Direct replacement for OEM Model 4 MCC systems; suitable for retrofit projects
• Application: Industrial motor control panels and MCC assemblies

Who this is for

This MCC bucket is ideal for facilities that operate Model 4 motor control centers, including manufacturing floors, process plants, and automation-heavy environments with 480 V three-phase motors. If you’re replacing a failed breaker bucket in an existing Schneider Electric / Square D Model 4 system, this part offers exact interface and electrical characteristics to match your setup.

Why it matters

Choosing a genuine Schneider Electric / Square D component ensures electrical coordination and panel compatibility remain consistent across maintenance cycles. The 3-Pole design provides balanced protection for three-phase motors, while the 5 A rating aligns with common small-to-mid-size loads in MCC environments. As a direct OEM-compatible solution, it streamlines installation and reduces rework during upgrades or replacements.

AmpState advantage

AmpState delivers this MCC bucket with a focus on reliability and global delivery, supporting maintenance programs and spare-part availability across regions. Sourcing this part from AmpState helps you keep critical control equipment running smoothly and reduces lead times for essential replacements.

Practical use and installation notes

• Before ordering, confirm that the cabinet you’re servicing is a Schneider Electric / Square D Model 4 MCC system and that a 15-inch tall, 3-Pole bucket matches your layout.
• Use this bucket as a direct replacement or within retrofit projects to preserve existing wiring interfaces and bus connections.
• Store spare MCC buckets in a clean, dry environment to prevent corrosion and ensure readiness for rapid deployment.
