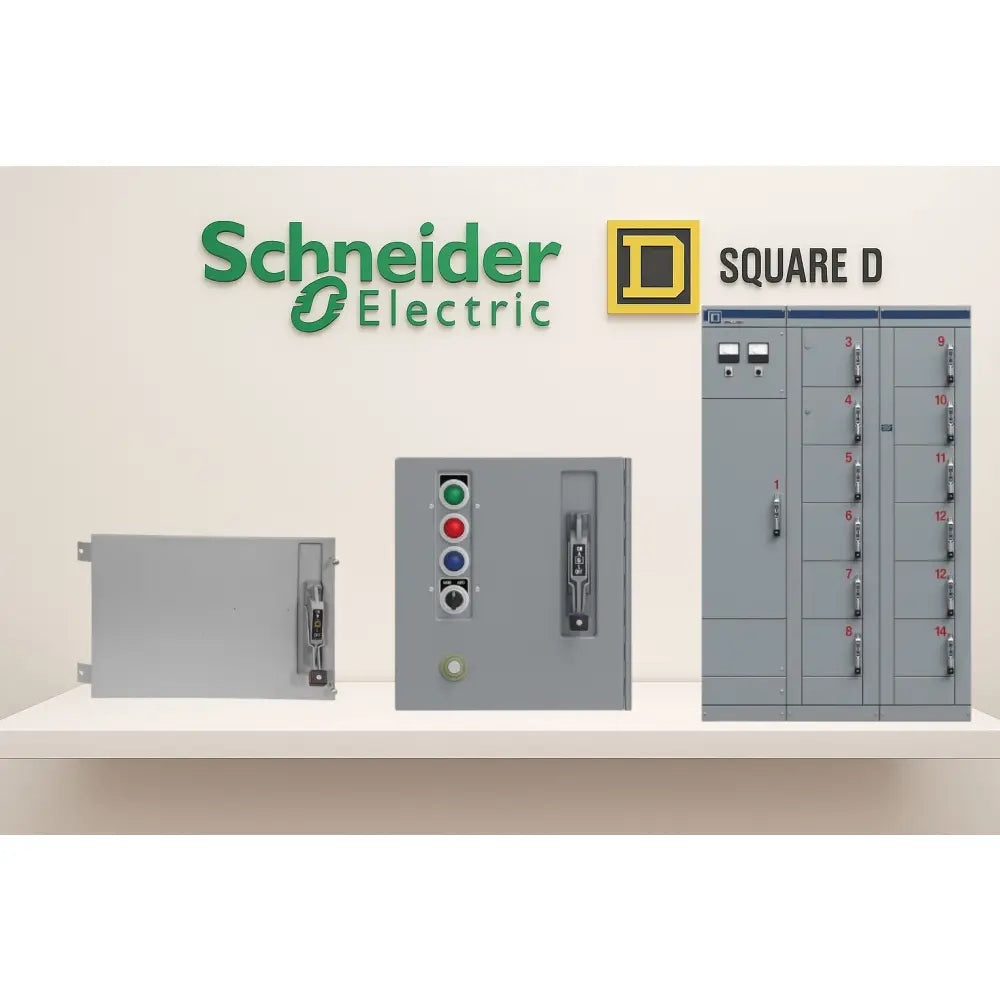

Schneider Electric Square D Model 4 MCC Bucket 5A 240V 3P 9 Inch

Meet the Schneider Electric / Square D Model 4 Breaker MCC Bucket — a purpose-built, OEM-compatible replacement designed for industrial motor control centers. With a precise 5 A, 240 V, 3-Pole configuration, this MCC bucket slots directly into Schneider Electric / Square D Model 4 systems, delivering dependable protection and a streamlined retrofit path for aging panels or service parts stock. AmpState backs this unit with global delivery and a commitment to high-quality MCC components.

Direct replacement for Model 4 MCC systems

This Breaker MCC Bucket is engineered as a seamless, drop-in substitute for OEM components in Model 4 panels. If you’re upgrading, refurbishing, or performing routine maintenance, you can trust this unit to maintain electrical protection characteristics and mechanical fit that technicians rely on in demanding environments.

Specifications at a glance

• Brand: Schneider Electric / Square D
• Model: Square D Model 4
• Configuration: Breaker MCC Bucket
• Rating: 5 A, 240 V, 3-Pole
• Height: 9 inches

Why this MCC bucket stands out

• OEM-compatible design: Precisely sized and shaped to fit Model 4 MCC systems, reducing installation guesswork and downtime.
• Reliable motor protection: The 5 A, 240 V, 3-Pole configuration is tailored for controlled, dependable protection of small to mid-size motors and associated control circuits in industrial settings.
• Retrofit-ready: Ideal for refreshing aging switchgear without a full panel overhaul, helping maintenance teams extend equipment life and simplify parts inventory.
• Global availability: AmpState sources and ships these MCC components worldwide, supporting multi-site operations and rapid replenishment.

Use cases and practical applications

• Retrofits and replacements in existing Model 4 MCC installations where a precise 5 A, 240 V, 3-Pole breaker bucket is required.
• New builds or expansion projects that specify Schneider Electric / Square D Model 4 compatibility, ensuring consistent protection and plug-and-play integration.
• Service fleets stocking reliable spares for downtime-critical motor control centers in manufacturing, processing plants, and facilities with heavy machinery.

How it supports your operation

• Minimized downtime: Quick, compatible swap reduces panel downtime during maintenance or part replacement.
• Consistent performance: Maintains the protection profile and electrical characteristics expected in Model 4 MCC systems.
• Streamlined procurement: Available through AmpState with global delivery, helping fleet managers keep critical inventory levels balanced across locations.

Installation notes and best practices

Ensure the replacement matches the 9-inch height and 3-Pole configuration specified for Model 4 MCC buckets. Verify fit within the existing enclosure and bus connections, and follow standard electrical safety procedures during replacement or retrofit work. This unit is designed to complement Schneider Electric / Square D system architectures, delivering predictable performance when paired with compatible components.

About AmpState

AmpState supplies high-quality MCC components with a global distribution network, supporting reliable parts sourcing for industrial control equipment. This Model 4 Breaker MCC Bucket exemplifies the commitment to durable, OEM-compatible parts that keep critical motor control centers running smoothly across industries.
