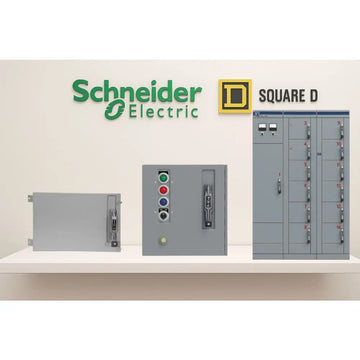

Schneider Electric Square D Model 4 MCC Bucket 100 A 600 V 30 Inch 3 Pole

The Schneider Electric / Square D Model 4 Breaker MCC Bucket is a purpose-built solution for industrial motor control centers that demand reliability, precise sizing, and easy retrofits. Engineered for a 100 A, 600 V, 3-pole configuration, this bucket delivers consistent protection and control for your essential equipment while integrating seamlessly into Model 4 MCC systems.

Why this Model 4 MCC Bucket stands out

• Direct OEM replacement: Designed to drop into Schneider Electric / Square D Model 4 MCC systems as a ready-made substitute for worn or damaged buckets, reducing downtime during maintenance or upgrades.
• Accurate electrical ratings: 100 A current capacity paired with a 600 V maximum voltage ensures compatibility with mid-range motor loads commonly found in manufacturing lines, pumps, fans, and conveyors.
• Compact, standardized footprint: With a 30-inch height and a 3-pole configuration, it fits neatly into established Model 4 enclosures and aligns with standard bus-and-fusible architectures.
• Retrofit-friendly: Ideal for ongoing retrofit projects or OEM refresh programs where preserving existing layout and parts compatibility matters.
• Global availability through AmpState: AmpState supplies high-quality MCC components with reliable worldwide delivery, helping you minimize downtime and plan replacements with confidence.

Key specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 4
• Configuration: Breaker MCC Bucket
• Rating: 100 A, 600 V, 3-Pole
• Height: 30 inches
• Poles: 3
• Application: Industrial motor control centers (MCC)

Ideal use cases

This MCC bucket is well-suited for facilities that run multiple motors or heavy-duty drives where quick maintenance and dependable protection are essential. Use it for:

• New builds or expansions of motor control centers in manufacturing environments
• Retrofits to replace aging Model 4 buckets without reconfiguring existing infrastructure
• Downtime-minimizing replacements during scheduled maintenance or plant outage windows
• Systems that require a standardized 3-pole breaker bucket within 100 A, 600 V service

Practical guidance for installation and compatibility

Leverage this bucket to maintain consistency with Schneider Electric / Square D Model 4 MCC architectures. The 30-inch form factor and 3-pole configuration align with common Model 4 enclosures, helping preserve existing bus work relationships and mounting interfaces. When planning replacement, confirm that the target MCC bay matches a 100 A, 600 V, 3-Pole bucket and that the physical mounting and interlock mechanisms align with the installed system.

Why choose AmpState

AmpState specializes in delivering MCC components that engineers and maintenance teams trust. This Model 4 Breaker MCC Bucket combines authentic Schneider Electric / Square D design with practical, real-world fit for retrofit and replacement projects. Global delivery means you can source the exact bucket you need without compromising on lead times or compatibility.

Practical benefits and outcomes

• Minimized downtime through direct compatibility with Model 4 MCC systems
• Reliable protection for mid-range motor loads at 100 A and 600 V
• Streamlined maintenance planning with a readily available OEM-equivalent component
• Assured dimensional and electrical compatibility for steady, predictable performance

Whether you're upgrading an aging MCC, stocking spare parts for planned maintenance, or outfitting a new facility, this Schneider Electric / Square D Model 4 Breaker MCC Bucket provides a dependable, standards-aligned solution that engineers and technicians can trust. AmpState’s global delivery adds another layer of convenience, ensuring you can obtain the exact replacement bucket you need when you need it.
