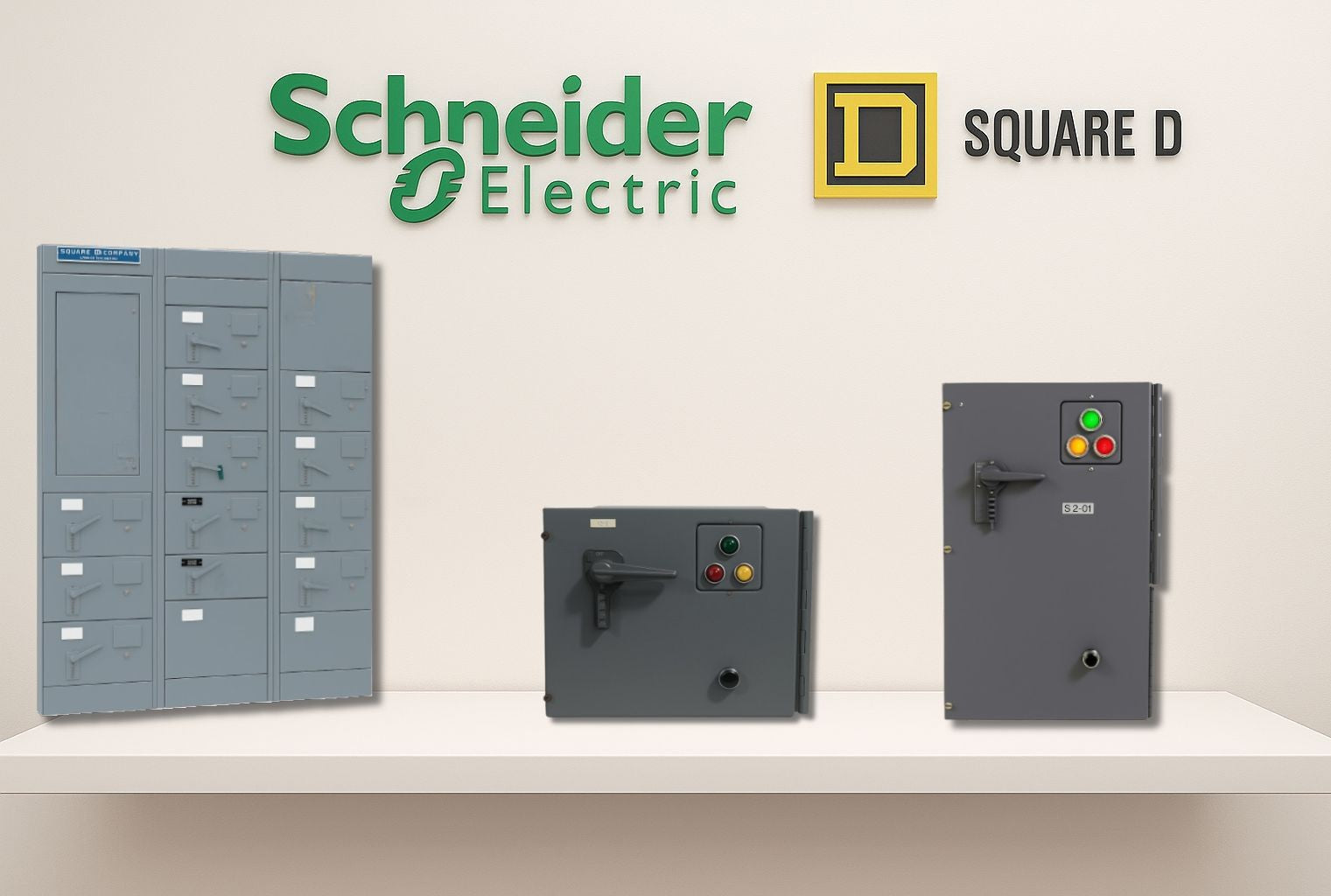

Schneider Electric / Square D Model 3 - Breaker MCC Bucket - 90 A, 480 V, 18" Height, 3 P | AmpState

Meet the Schneider Electric / Square D Model 3 Breaker MCC Bucket — a precise, OEM‑equivalent replacement engineered for demanding industrial motor control centers. With a 90 A, 480 V, 3-Pole rating and an 18" height, this MCC bucket is designed to slot directly into existing Model 3 frames, minimizing downtime and preserving control reliability.

Direct OEM Replacement for Model 3 MCC Systems

Specifically crafted for Schneider Electric / Square D Model 3 motor control center configurations, this breaker MCC bucket serves as a straightforward retrofit or replacement. Its compatibility with the original mounting patterns and bus bar alignment means technicians can swap in a trusted component without custom fabrication or complicated rework.

Key Specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 3
• Configuration: Breaker MCC Bucket
• Rating: 90 A, 480 V, 3-Pole
• Height: 18 inches
• Application: Industrial motor control centers (MCC)
• Compatibility: Fits Schneider Electric / Square D Model 3 MCC systems
• Support: AmpState provides global delivery

Ideal Use Cases

• Maintenance and retrofit projects in aging or upgraded Model 3 MCC installations
• Industrial facilities with 3‑pole motor control center circuits handling up to 90 A at 480 V
• Plants seeking OEM‑equivalent performance without custom fabrication or non‑standard upgrades
• Facilities performing scheduled upgrades to improve reliability and consistency of motor control

Why This MCC Bucket Stands Out

• OEM‑equivalent compatibility: A direct fit for Model 3 MCC frames ensures reliable electrical contacts and mounting alignment, reducing installation risk.
• Focused for industrial motor control: Specifically engineered for 90 A, 480 V, 3‑pole applications common in pumps, fans, conveyors, and other heavy‑duty equipment.
• Simplified procurement and logistics: Available through AmpState with global delivery, helping facilities source exact replacements quickly and predictably.
• retrofit‑friendly: Designed to integrate into existing Model 3 MCC infrastructure, supporting efficient upgrades and ongoing maintenance programs.

Installation and Practical Tips

For safe and effective installation, engage a qualified electrician or controls technician. Before swapping in the bucket, de‑energize and lockout the MCC section, verify compatibility with your Model 3 frame, and confirm correct alignment of mounting points and bus connections. After installation, perform a careful visual inspection of connections and secure all fasteners to manufacturer‑specified torque values. This approach helps maintain system integrity and minimizes the risk of arc flash or connection issues during operation.

Shipping, Availability, and Support

AmpState supplies high‑quality MCC components with global delivery, supporting maintenance schedules and uptime across multiple regions. This Model 3 Breaker MCC Bucket is backed by AmpState’s emphasis on reliable parts for critical electrical infrastructure, ensuring you have the right replacement when it matters most.
