Schneider Electric / Square D Model 3 - Breaker MCC Bucket - 5 A, 600 V, 15" Height, 3 P | AmpState

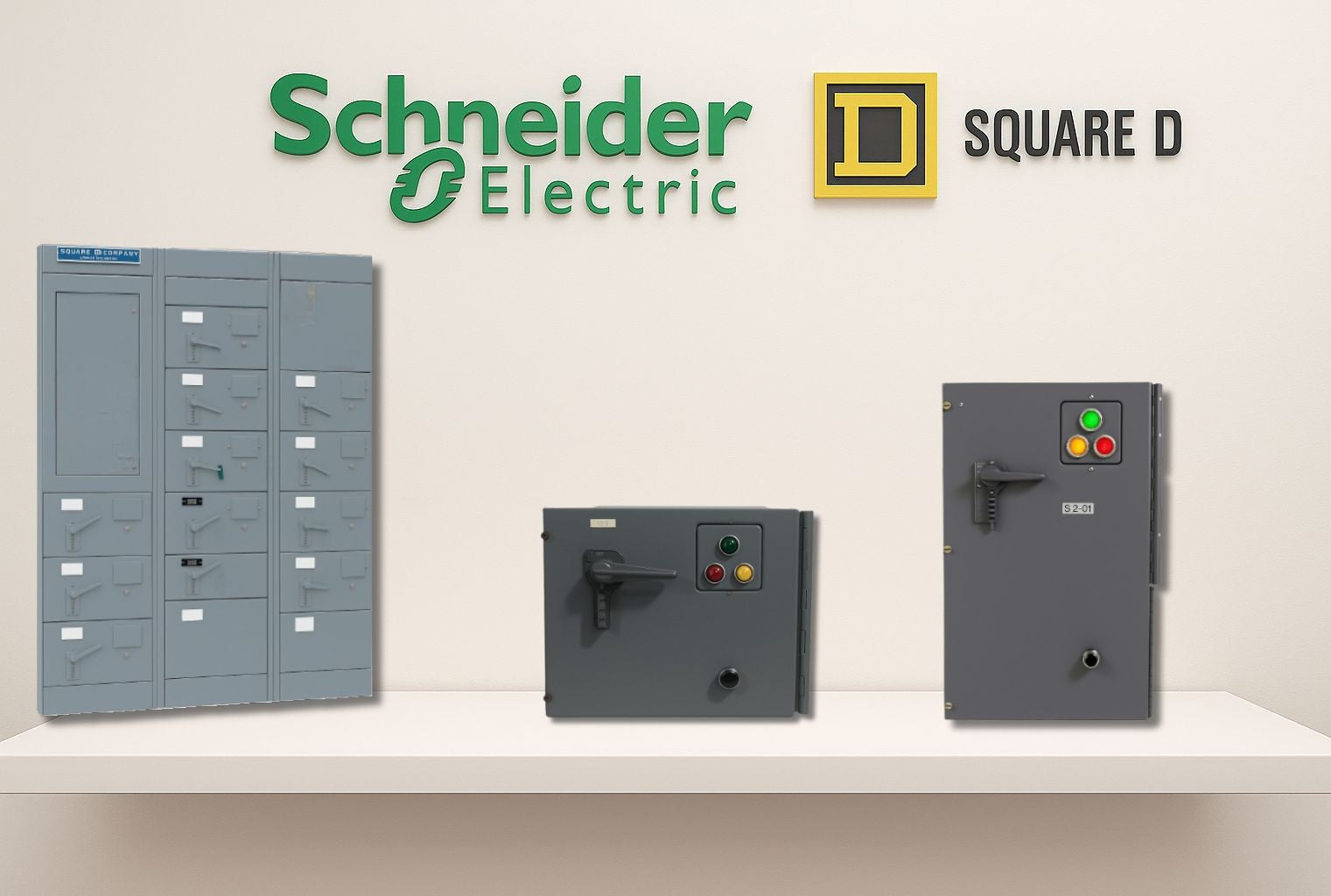

The Schneider Electric / Square D Model 3 Breaker MCC Bucket is a purpose-built solution for industrial motor control centers that demand a precise 5 A, 600 V, 3-Pole configuration. Designed to drop into Schneider Electric / Square D Model 3 MCC systems, this unit provides a reliable, OEM-compatible path for retrofit, maintenance, and refurbishment projects. With a compact 15" height, it fits neatly within standard MCC frames, keeping your control architecture consistent and easy to service.

Key specifications at a glance

• Brand: Schneider Electric / Square D
• Model: Square D Model 3
• Configuration: Breaker MCC Bucket
• Rating: 5 A, 600 V, 3-Pole
• Height: 15 inches

Why this MCC bucket stands out

Engineered for reliability in demanding environments, this Model 3 MCC bucket delivers exact electrical footprint and mounting compatibility with existing Schneider Electric / Square D gear. It preserves protective coordination across the motor circuit, supports consistent trip characteristics, and minimizes downtime during replacements by matching OEM interface details—so technicians spend less time wiring and more time keeping operations running.

Ideal use cases

• Retrofit projects on aging Model 3 MCCs to restore performance without a full panel replacement
• Spare parts inventory for plants that rely on Schneider Electric / Square D Model 3 configurations
• New installations in industrial setups requiring a compliant 5 A, 600 V, 3-Pole breaker bucket
• OEM replacement scenarios where exact form factor and electrical characteristics are critical

Practical benefits in real-world operation

• Direct compatibility with Model 3 MCC frames reduces installation risk and saves maintenance time
• 3-Pole design supports balanced, three-phase motor protection in medium-voltage environments
• 600 V rating provides ample insulation margin for typical industrial motor circuits
• 15" height aligns with standard MCC bucket rails, enabling straightforward retrofits
• Global delivery from AmpState ensures availability for proactive maintenance programs

Tips for installation and usage

Before installation, confirm the MCC frame is a Model 3 configuration and that the 5 A, 600 V, 3-Pole rating matches the protected motor load. Follow your facility’s lockout/tagout procedures, inspect mounting points for debris or wear, and align wiring terminals with the existing bus connections. Keep spare parts organized with other Model 3 components to streamline future maintenance or replacements. If in doubt, consult your facility’s electrical diagrams and the Model 3 specification documentation to maintain proper electrical coordination and safety standards.
