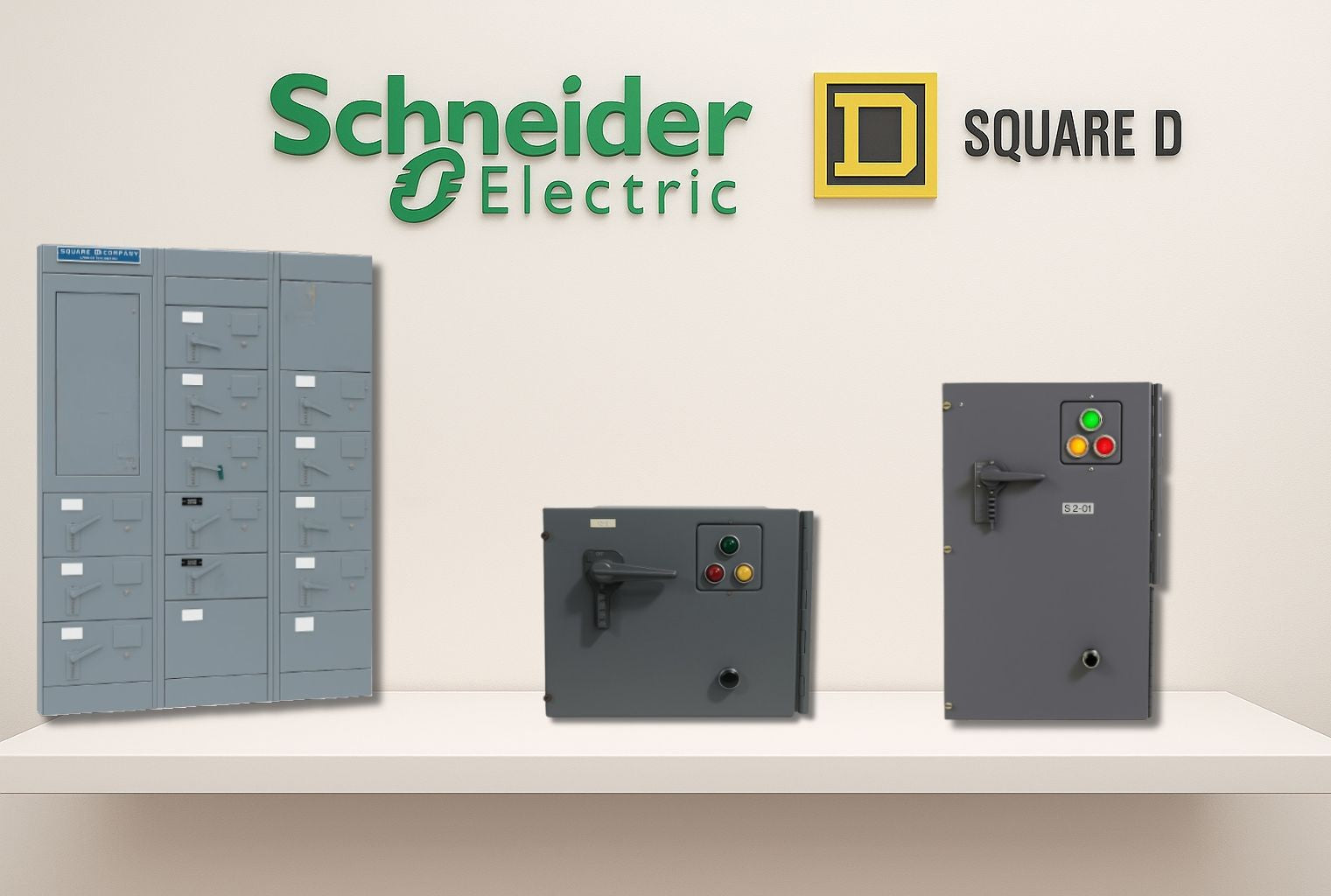

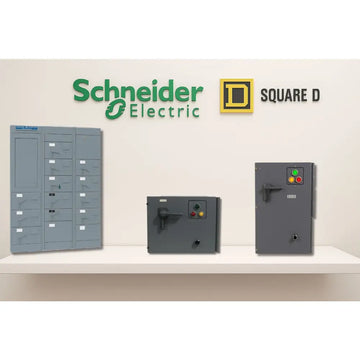

Schneider Electric / Square D Model 3 - Breaker MCC Bucket - 40 A, 600 V, 9" Height, 3 P | AmpState

Introducing the Schneider Electric / Square D Model 3 Breaker MCC Bucket — a precise, direct-replacement component built for demanding industrial motor control centers. Engineered to slot seamlessly into Model 3 MCC frames, this 40 A, 600 V, 3-pole bucket stands 9 inches tall and is ready for OEM-compatible retrofits or new installations.

Why this MCC bucket stands out

• Direct OEM replacement: Specifically designed to fit Schneider Electric / Square D Model 3 MCC systems, ensuring exact bus bar alignment, mounting, and wiring compatibility for fast, downtime-minimizing swaps.
• Three-pole, 40 A, up to 600 V: Optimized for three‑phase motor control applications, delivering reliable protection and control for common industrial loads like conveyors, pumps, and fans without over‑ or under‑protection.
• Compact, exact-fit design: At 9 inches in height, it maintains proper clearances within the MCC cabinet while preserving easy access for maintenance and testing.
• OEM-grade quality with practical value: Built to Schneider Electric / Square D specifications, offering predictable performance and long service life in harsh industrial environments.
• Retrofitting made simple: Ideal for maintenance outages, component refreshes, or system upgrades across facilities using Model 3 MCC infrastructure, helping you standardize spares and reduce downtime.

Ideal use cases

This Breaker MCC Bucket is purpose-built for facilities relying on Model 3 motor control centers. It’s well-suited for manufacturing lines, processing plants, and bulk-material handling environments where dependable three‑phase protection is essential. The 40 A, 600 V rating supports common motor controllers, enabling safe operation and straightforward coordination with upstream protections.

Compatibility and installation guidance

Designed as a drop‑in replacement, this bucket integrates with existing Model 3 MCC rails and buswork. Before installation, confirm frame compatibility, verify mounting holes match your current hardware, and align with your system’s protection scheme. Follow standard lockout/tagout procedures and electrical safety practices during replacement to ensure a clean, safe swap.

Specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 3
• Configuration: Breaker MCC Bucket
• Rating: 40 A, 600 V
• Poles: 3 P
• Height: 9 inches
• Application: Direct replacement for OEM and retrofit in Model 3 MCC systems

Powered by AmpState, this MCC component line delivers reliable, industry-grade performance with global delivery support, helping maintenance teams keep critical equipment running smoothly across sites.
