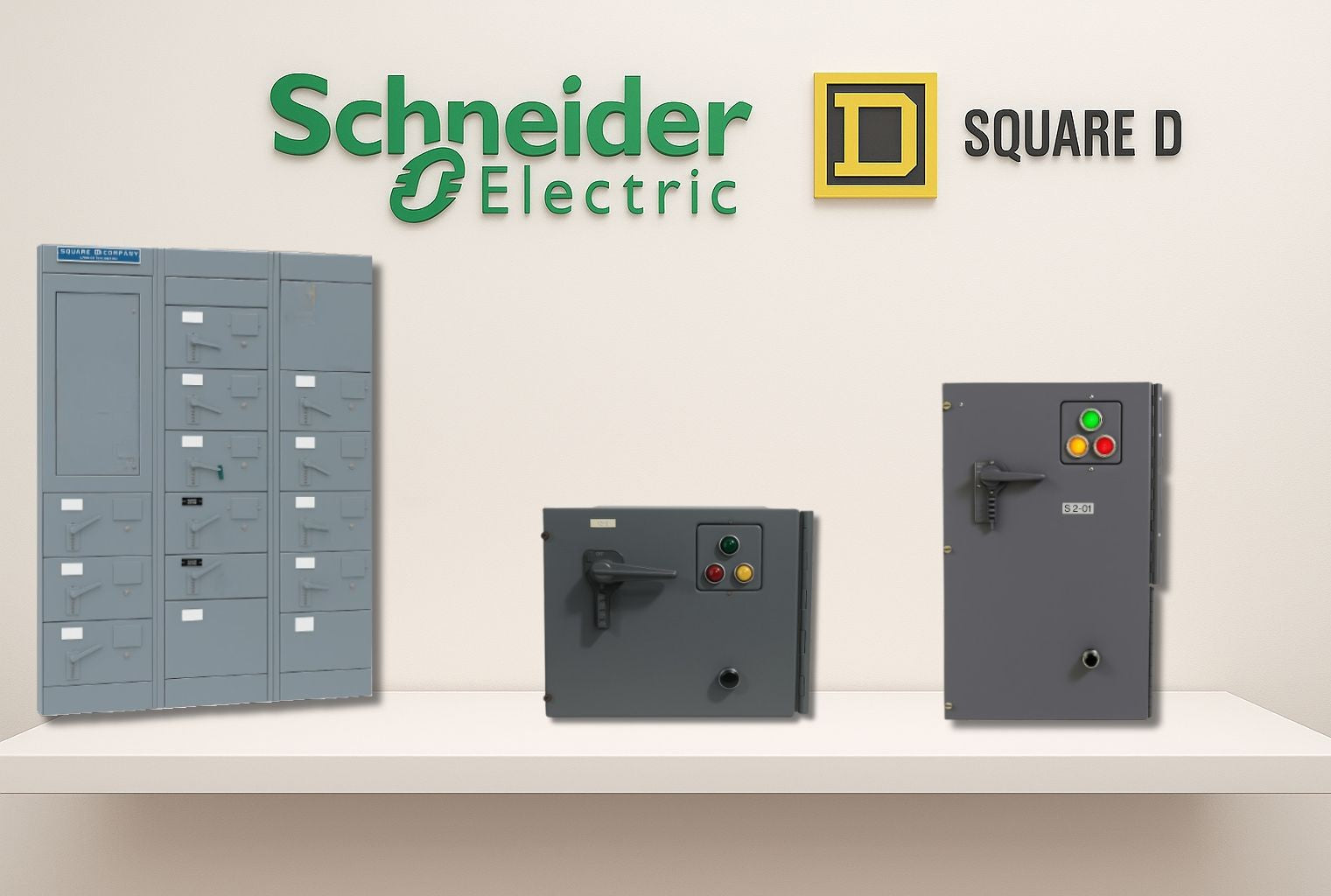

Schneider Electric / Square D Model 3 Breaker MCC Bucket — a purpose-built solution for industrial motor control centers that demand a precise 25 A, 480 V, 3-pole configuration. Designed to slot neatly into Model 3 MCC frames, this bucket serves as a dependable direct replacement for OEM components and is ideal for retrofit projects that aim to minimize downtime while preserving original protection schemes.

Key specifications at a glance

• Brand / Model: Schneider Electric / Square D, Model 3 Breaker MCC Bucket
• Configuration: Breaker MCC Bucket for Model 3 MCC systems
• Electrical rating: 25 A, 480 V, 3-Pole
• Physical size: 15" in height
• Application: Direct OEM replacement and retrofit for Model 3 MCCs

Why this Model 3 MCC bucket stands out

With its precise 3-pole architecture and 25 A, 480 V rating, this bucket is tuned for reliable protection of three-phase motors and feeders in demanding industrial environments. Its 15" height matches standard Model 3 MCC frames, ensuring a seamless plug-in fit without panel modifications. When you’re maintaining or upgrading an aging MCC, choosing this bucket means you can preserve existing wiring schemes, busbar alignment, and trip coordination while restoring performance and safety margins.

Ideal use cases

This MCC bucket is well-suited for facilities that rely on robust motor control for critical processes. Think manufacturing lines with multi-motor drives, pumping systems in water treatment or chemical processing, HVAC and cooling tower applications, and conveyor networks where consistent motor protection is non-negotiable. It’s also an excellent choice for retrofit projects that replace obsolete buckets without changing the surrounding MCC architecture.

What customers gain

• Reliability through compatibility: Engineered to align with Schneider Electric / Square D Model 3 MCC systems, reducing risk during installation and one-for-one replacement challenges.
• Operational continuity: Plug-in compatibility and exact dimensional fit help minimize downtime during maintenance windows.
• Global delivery support: AmpState provides worldwide shipping and access to MCC components, expanding procurement options for facilities anywhere.

Practical installation and care tips

Before replacing, verify that the MCC frame is clean and free of obstructions to ensure smooth insertion. Confirm that the existing bus connections and protective relays are compatible with the Model 3 bucket’s configuration. If you’re consolidating multiple MCC sections, use this bucket as a scalable path to normalize protection across lines while keeping the original electrical hierarchy intact.

Whether you’re performing routine maintenance, upgrading legacy equipment, or completing a full retrofit, this Schneider Electric / Square D Model 3 Breaker MCC Bucket from AmpState delivers a trustworthy, standards-aligned solution with global support to keep your motor control center running smoothly.
