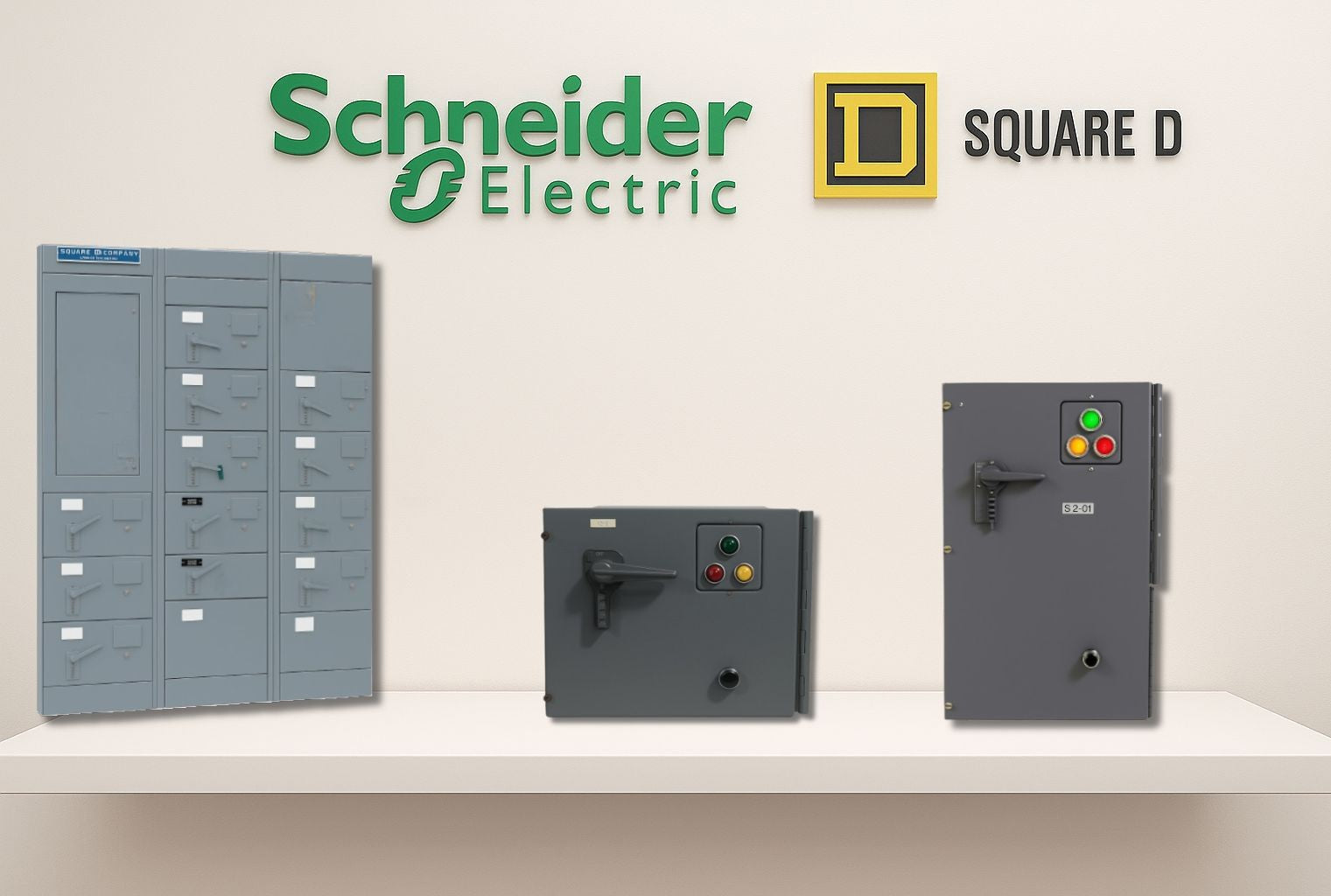

Schneider Electric / Square D Model 3 - Breaker MCC Bucket - 225 A, 480 V, 48" Height, 3 P | AmpState

Engineered for demanding industrial motor control, the Schneider Electric / Square D Model 3 Breaker MCC Bucket delivers a precise 225 A, 480 V, 3-Pole configuration in a 48" tall enclosure. Designed as a direct OEM replacement for Schneider Electric / Square D Model 3 MCC systems, it enables seamless retrofits and upgrades without altering bus work, wiring routes, or mounting geometry.

Key Advantages

• Direct OEM replacement for Model 3 MCC frames, minimizing downtime and rework during upgrades or repairs.
• 3-Pole, 225 A, 480 V rating tailored to handle mid–sized industrial motors and feeders with reliable protection.
• 48" height ensures plug‑and‑play compatibility with standard Model 3 MCC racks and spacing.
• Rugged construction suited for harsh industrial environments, prioritizing long-term reliability and safety.
• Global delivery support through AmpState, ensuring timely availability for maintenance and project schedules.

Ideal Use Scenarios

• Manufacturing lines that rely on Model 3 MCC systems for motor control and protection.
• Retrofits of aging MCC architectures to restore performance without redesigning panels.
• Facilities with pumps, fans, conveyors, compressors, or other heavy-duty loads requiring dependable 225 A protection at 480 V.

What Makes This MCC Bucket Stand Out

Unlike generic replacements, this bucket is purpose-built for Schneider Electric / Square D Model 3 MCC configurations. Its exacting dimensions and electrical rating preserve existing wiring harnesses, terminal blocks, and mounting patterns, supporting quicker swaps and fewer field adjustments. The component design emphasizes compatibility, reducing project risk when upgrading control centers in busy industrial environments.

Installation and Compatibility

Best results come from a trained electrical technician familiar with MCC assemblies. This bucket is engineered to mate with Model 3 frames and current protection schemes, maintaining consistent contact alignment and clearances. Use in environments where 225 A at 480 V, 3‑pole protection is required, and where a robust, maintenance-friendly MCC bucket is essential for uptime.

Specifications at a Glance

• Brand: Schneider Electric / Square D
• Model: Square D Model 3
• Configuration: Breaker MCC Bucket
• Rating: 225 A, 480 V, 3-Pole
• Height: 48 inches
• Application: Industrial motor control centers (MCC)
• Availability: Direct replacement for OEM Model 3 MCC systems; retrofit-ready

AmpState provides high-quality MCC components with global delivery, supporting your maintenance schedules and equipment modernization efforts with reliable availability and expert support.
