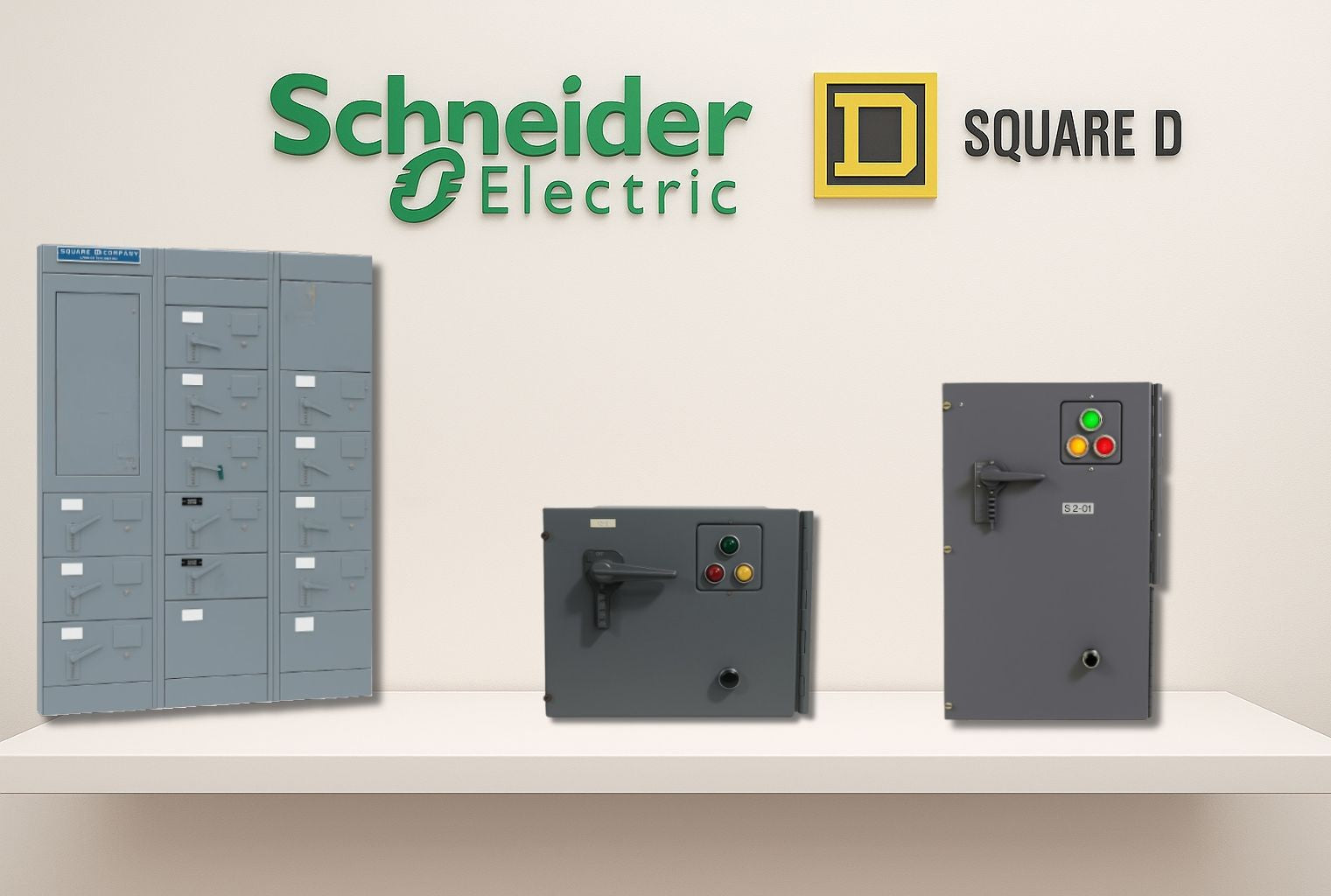

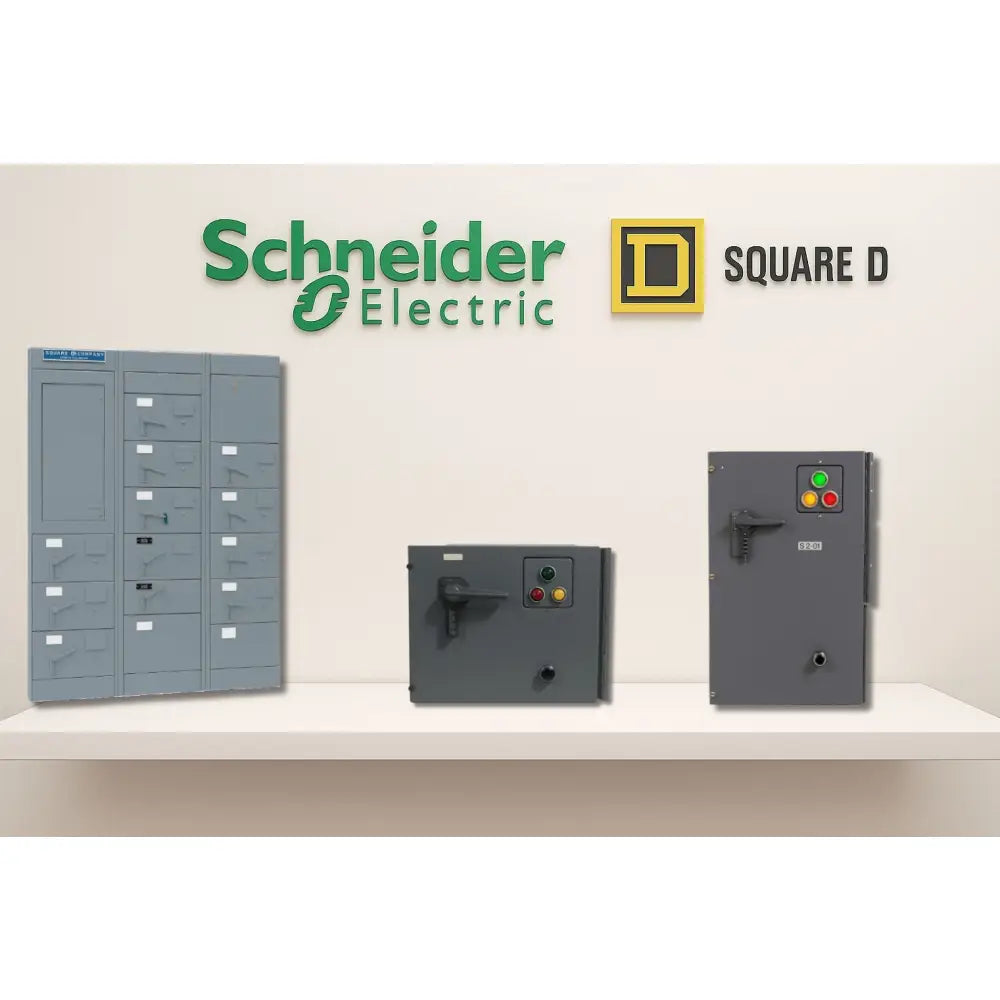

Schneider Electric / Square D Model 3 - Breaker MCC Bucket - 200 A, 480 V, 48" Height, 3 P | AmpState

Schneider Electric / Square D Model 3 Breaker MCC Bucket delivers dependable, mission-critical motor control performance for industrial environments. With a 200 A, 480 V, 3-Pole configuration and a 48" height, this MCC bucket is engineered as a direct OEM replacement for Schneider Electric / Square D Model 3 MCC systems and a reliable retrofit option for upgrading or maintaining existing motor control centers.

Key specifications at a glance

• Brand and model: Schneider Electric / Square D Model 3 Breaker MCC Bucket
• Electrical rating: 200 A, 480 V, 3-Pole
• Height: 48 inches
• Configuration: Breaker MCC Bucket, designed for Model 3 MCC systems
• Application: Industrial motor control centers requiring reliable, compatible hardware for OEM replacements and retrofits

What makes this bucket stand out

• Exact-fit OEM compatibility: Built to align with Schneider Electric / Square D Model 3 MCC architectures, ensuring seamless integration without modification to existing buswork or mounting patterns.
• Replacement-ready for retrofits: A trusted drop-in alternative when upgrading or refurbishing aging MCCs, reducing downtime and design uncertainty.
• Robust motor-control performance: 200 A at 480 V supports demanding three-phase motor loads, maintaining reliable operation in continuous duty environments.
• Proven reliability: Part of a tested, standards-aligned MCC ecosystem, helping maintain electrical protection, coordination, and safety within the control center.

Use cases and practical scenarios

• OEM replacement in existing Schneider Electric / Square D Model 3 MCC installations to restore peak performance without re-engineering the entire center.
• Retrofit projects where higher amperage or updated voltage ratings are needed while preserving the original MCC footprint and wiring schemes.
• Spare or standby bucket in critical facilities to minimize downtime during maintenance or component failures.
• Maintenance planning for industrial plants that rely on consistent, reliable motor control for conveyors, pumps, fans, and other large loads.

Installation and compatibility tips

• Verify that your MCC bay matches Model 3 specifications and that the 48" height fits your enclosure space before ordering.
• Reserve alignment with existing bus connections and mounting hardware to ensure a smooth, drop-in replacement experience.
• Follow standard安全 practices (lockout/tagout, verify absence of voltage) during installation and commissioning of the bucket.
• Consult your maintenance plan to align any required protective devices, wiring schemes, and coordination settings with the 200 A, 480 V, 3-Pole rating.

AmpState support and delivery

AmpState provides high-quality MCC components with global delivery, enabling timely access to critical parts wherever your operations are located. This Model 3 MCC bucket benefits from AmpState’s focus on compatibility, availability, and serviceability, helping facilities keep their motor control centers running smoothly and with minimal disruption.
