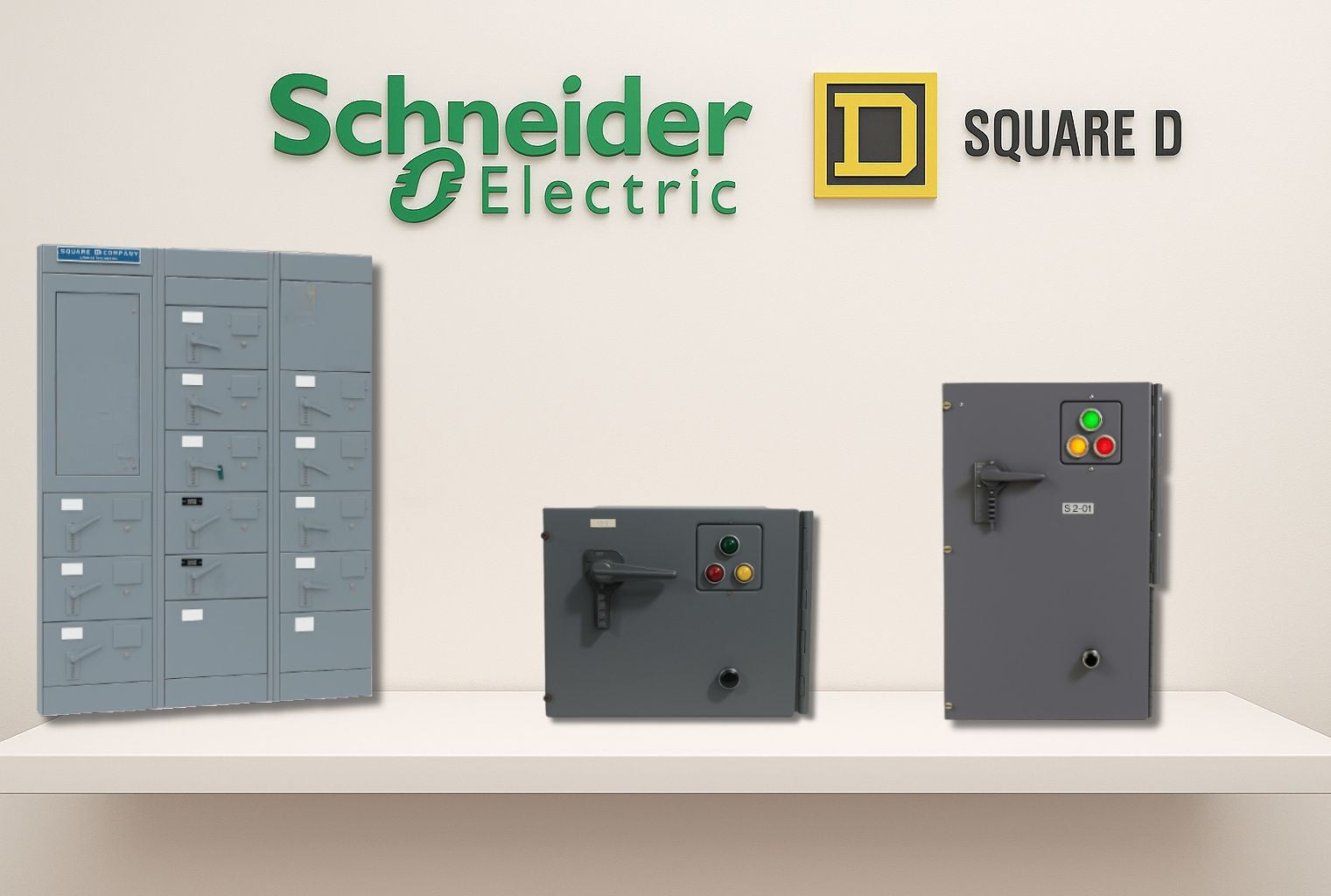

Schneider Electric / Square D Model 3 - Breaker MCC Bucket - 100 A, 600 V, 15" Height, 3 P | AmpState

Engineered for industrial motor control applications, the Schneider Electric / Square D Model 3 Breaker MCC Bucket delivers a precise, 100 A, 600 V, 3-Pole configuration in a 15-inch-tall unit. Designed to slot directly into your existing Schneider Electric / Square D Model 3 MCC system, this MCC bucket serves as a reliable OEM replacement and retrofit-ready component that minimizes downtime during maintenance or modernization projects.

Key specifications

• Brand: Schneider Electric / Square D
• Model: Square D Model 3
• Configuration: Breaker MCC Bucket
• Current rating: 100 A
• Voltage rating: 600 V
• Poles: 3-Pole
• Height: 15"
• Application: Industrial motor control center (MCC) environments

Why this MCC bucket stands out

• Exact OEM fit for Schneider Electric / Square D Model 3 MCC frames, ensuring seamless compatibility with existing bus work, mounting rails, interlocks, and wiring schemes.
• Direct replacement, retrofit-ready—simplifies maintenance, reduces project downtime, and preserves the integrity of your original MCC design without a full system overhaul.
• Reliable motor control for heavy-duty loads in manufacturing, processing, and packaging lines, delivering consistent interruption-free operation for critical motors and drives.
• Trusted brand alignment with Schneider Electric / Square D hardware and engineering standards, offering predictable performance in harsh industrial environments.
• AmpState reliability with global delivery, ensuring you can source the exact Model 3 MCC bucket when and where you need it to keep production lines moving.

Ideal use cases

• Maintenance and retrofits for plants that rely on Model 3 MCC systems to control pumps, conveyors, compressors, and large fans.
• OEM replacement during scheduled outages to minimize downtime and preserve alignment with existing control schematics.
• Upgrades in facilities upgrading motor control capacity or replacing worn-out MCC components without re-engineering the entire panel.

Compatibility and installation tips

This MCC bucket is built to integrate with Schneider Electric / Square D Model 3 motor control centers. Before installation, confirm the following to ensure a smooth, code-compliant replacement:

• Verify that your MCC frame is a Model 3 configuration and that the space is prepared for a 15" tall, 3-Pole bucket.
• Inspect mounting rails and interlocks for wear or misalignment; replace any damaged hardware as needed to maintain proper safety clearances.
• Follow standard lockout/tagout procedures and manufacturer wiring guidelines when swapping in the new bucket.
• Match the bucket’s current and voltage ratings (100 A, 600 V) with the connected motor loads to avoid overloading and ensure reliable operation.

Choose this Schneider Electric / Square D Model 3 Breaker MCC Bucket for a precise, dependable replacement that preserves your MCC’s performance and minimizes disruption. AmpState’s global distribution ensures you can source this essential component with confidence, wherever your operations are located.
