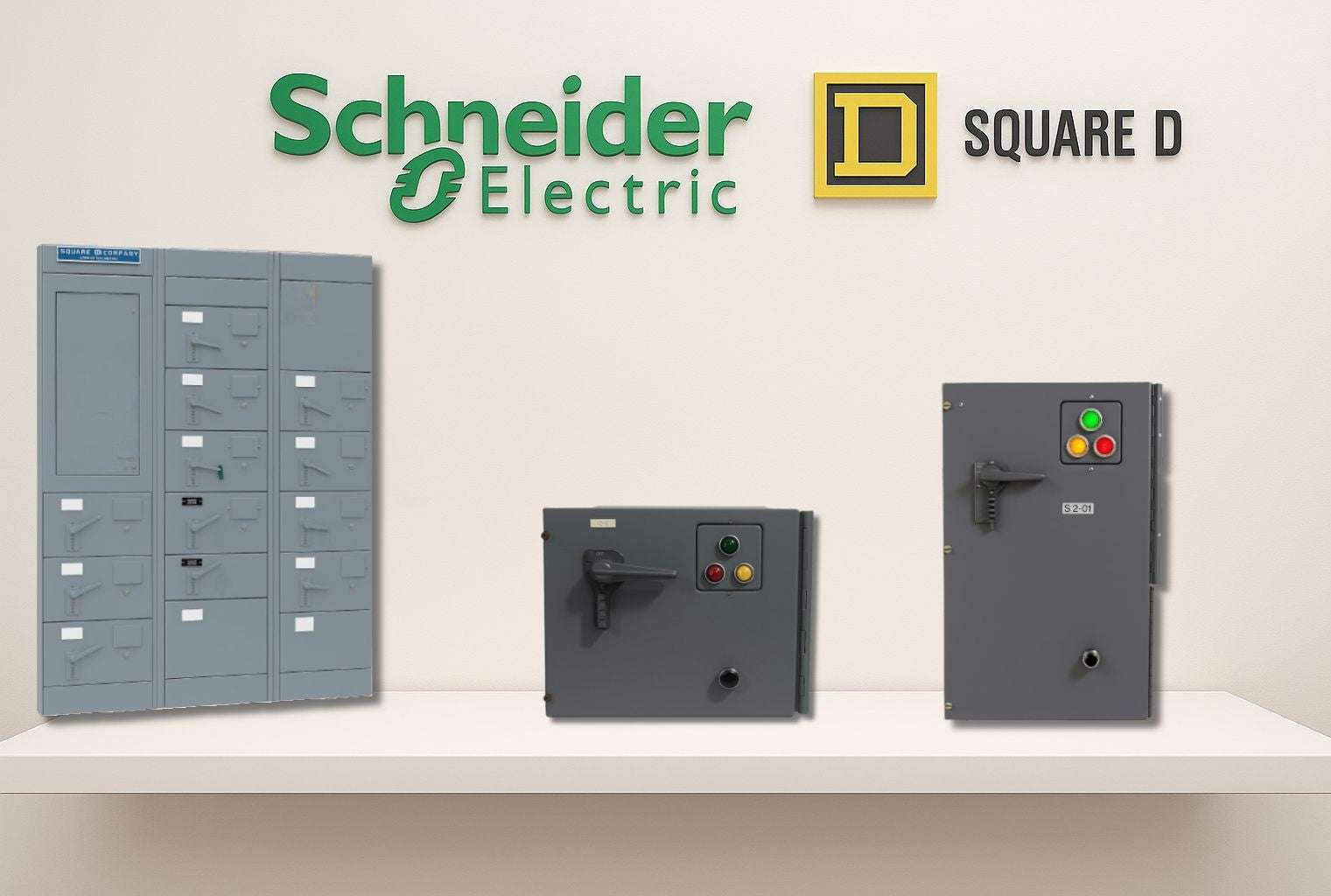

Schneider Electric / Square D Model 3 - Breaker MCC Bucket - 100 A, 480 V, 48" Height, 3 P | AmpState

Designed for demanding industrial motor control centers, the Schneider Electric / Square D Model 3 Breaker MCC Bucket delivers precise protection and seamless integration for 100 A, 480 V, 3-Pole applications. At a full 48" height, this MCC bucket is built to fit cleanly into Schneider Electric / Square D Model 3 MCC systems, making it the practical, direct OEM replacement and retrofit choice for maintaining uptime and overall control reliability.

Key specifications you can rely on

• Brand: Schneider Electric / Square D
• Model: Square D Model 3
• Configuration: Breaker MCC Bucket
• Rating: 100 A, 480 V, 3-Pole
• Height: 48 inches

Why this MCC bucket stands out

• Direct OEM replacement for Model 3 MCC systems: engineered to align with original buswork, mounting rails, and protective interlocks, reducing installation complexity and the risk of fitment issues.
• Retrofit-ready: a dependable upgrade path for aging MCC frames, enabling quick modernization without a full system rebuild.
• Three-pole protection at a robust 480 V: supports balanced protection for three-phase motors and heavy equipment, helping to prevent downtime from nuisance trips or misconfigurations.
• Compact, reliable form factor: 48" tall bucket integrates with standard Schneider Electric / Square D Model 3 frames, preserving cabinet footprint and maintaining consistent clearances.
• World-class support from AmpState: access to high-quality MCC components with global delivery, ensuring you get the right part when you need it.

Ideal use cases

• Industrial manufacturing lines requiring dependable 3-phase motor control with 100 A protection
• Retrofits in aging Model 3 MCC installations to restore performance and safety
• New builds that specify Schneider Electric / Square D compatibility and standardized 3-pole bucket components
• Facilities upgrading maintenance strategies to reduce downtime and part mismatches

Installation and compatibility notes

When integrating this MCC bucket, verify alignment with the existing Schneider Electric / Square D Model 3 MCC frame and bus connections. Ensure proper shutdown procedures are followed, including lockout/tagout, before removal or installation. After installation, perform a controlled functional test to confirm full protection operation and seamless interaction with adjacent breakers and interlocks. This bucket is designed to be a drop-in replacement for OEM parts within Model 3 systems, supporting straightforward retrofits and continuous process control.

Delivery and support

AmpState supplies this Schneider Electric / Square D 100 A, 480 V, 3-Pole Breaker MCC Bucket with reliable, global delivery. If you’re maintaining critical infrastructure, this part helps you sustain uptime and maintain consistent performance across your motor control center fleet.
