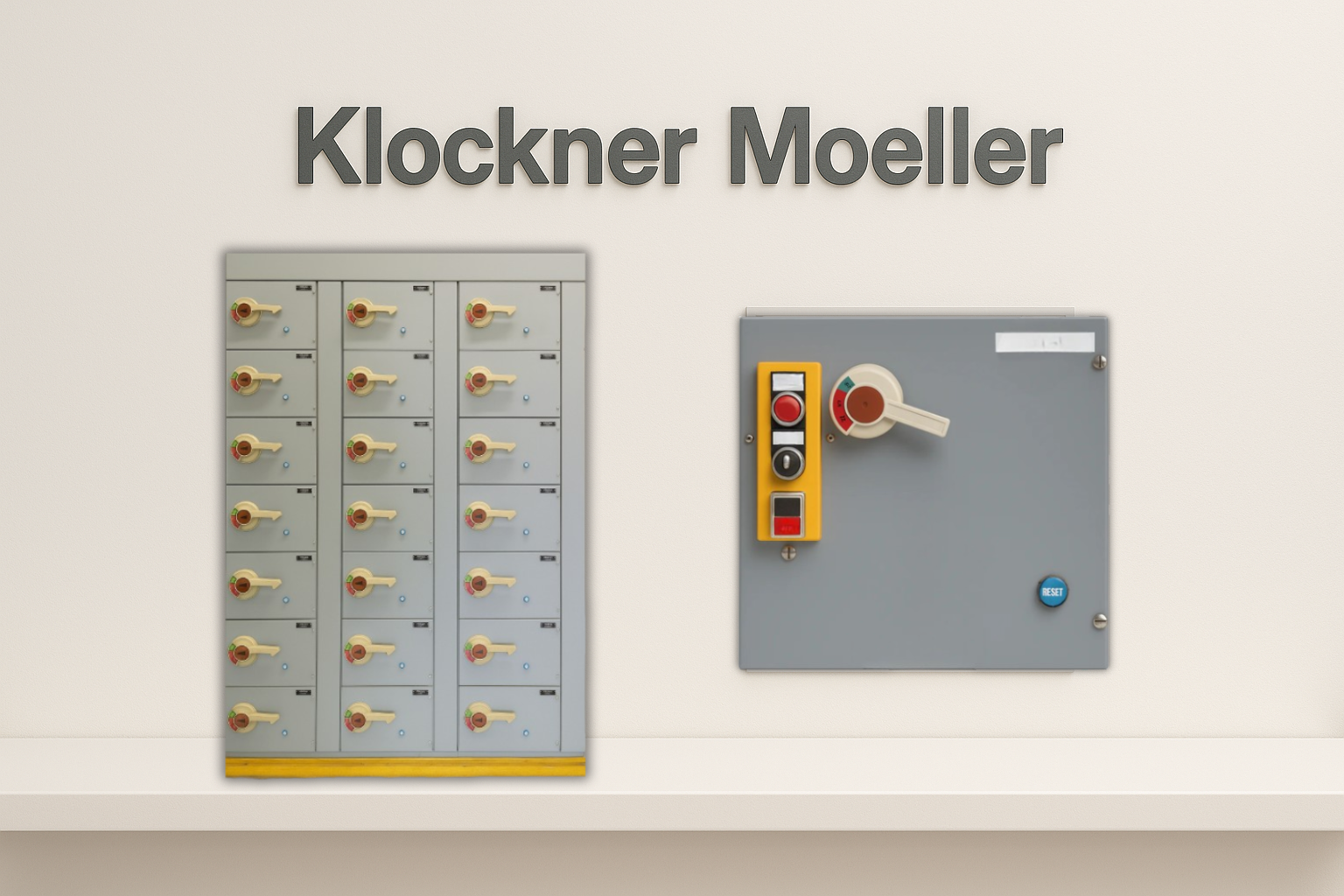

Klockner Moeller Series 200 Breaker MCC Bucket — 100 A, 480 V, 3-Phase, 30" Height

Designed for demanding industrial motor control environments, this Klockner Moeller Series 200 Breaker MCC Bucket delivers reliable protection and seamless integration for a 100 A, 480 V, 3-Pole configuration. Built to fit the Klockner Moeller Series 200 MCC systems, it serves as a direct OEM replacement that simplifies retrofit projects and minimizes downtime during upgrades or repairs.

Why this MCC Bucket stands out

• Accurate 100 A, 480 V, 3-Pole rating: Precise compatibility with common 3-phase motor circuits, ensuring dependable overload protection and coordinated trip behavior.
• Exact 30" height for standard MCC cabinets: Engineers and technicians can rely on a straightforward fit within existing enclosures and mounting rails.
• Designed for Series 200 MCC systems: A purpose-built component that integrates cleanly with other elements in the Series 200 family, reducing configuration guesswork.
• Direct OEM replacement and retrofit-ready: Simplifies upgrades, extends equipment life, and helps maintain consistent control strategies across the plant.
• Industry-grade durability: Engineered to withstand the rigors of continuous motor control applications in manufacturing, processing, and infrastructure environments.

Ideal applications and use cases

• Upgrading aging MCC installations in manufacturing lines that rely on 480 V motor feeders with 3-phase loads.
• Replacing a failed or degraded breaker MCC bucket without redesigning the entire MCC cabinet.
• Retrofit projects that align legacy equipment with current protection standards while preserving existing wiring and bus bar layouts.
• Spare bucket strategy for downtime planning, ensuring quick swap-and-go maintenance for critical motors and conveyors.

Key specifications at a glance

• Brand: Klockner Moeller
• Model/Configuration: Series 200 Breaker MCC Bucket
• Rating: 100 A, 480 V, 3-Pole
• Height: 30 inches
• Compatibility: Klockner Moeller Series 200 MCC systems (direct OEM replacement)

Installation, performance, and maintenance tips

• Confirm physical dimensions and mounting provisions match your Series 200 cabinet before swap-in replacement.
• Verify electrical connections align with your plant’s 480 V, 3-phase distribution and follow proper lockout/tagout procedures during installation.
• Coordinate with your control strategy to ensure protective relay settings, trip curves, and feeder wiring are compatible with the MCC bucket’s protection profile.
• Periodically inspect insulation, terminals, and bus-bar contact surfaces to maintain low-resistance paths and reliable fault clearing.

Why choose AmpState for this component

AmpState delivers reliable MCC components with a global footprint, ensuring quick availability and consistent qualification across warehouses and service centers. By providing authentic replacement parts tuned for Series 200 MCC systems, AmpState helps minimize downtime and preserve system performance across plant locations.

Whether you’re retrofitting older equipment, planning a proactive replacement, or stocking a maintenance kit for critical MCC assets, this Klockner Moeller Series 200 Breaker MCC Bucket (100 A, 480 V, 3-Pole, 30" height) is engineered to integrate smoothly with your existing motor control center and deliver dependable protection for productive, uninterrupted operation.
