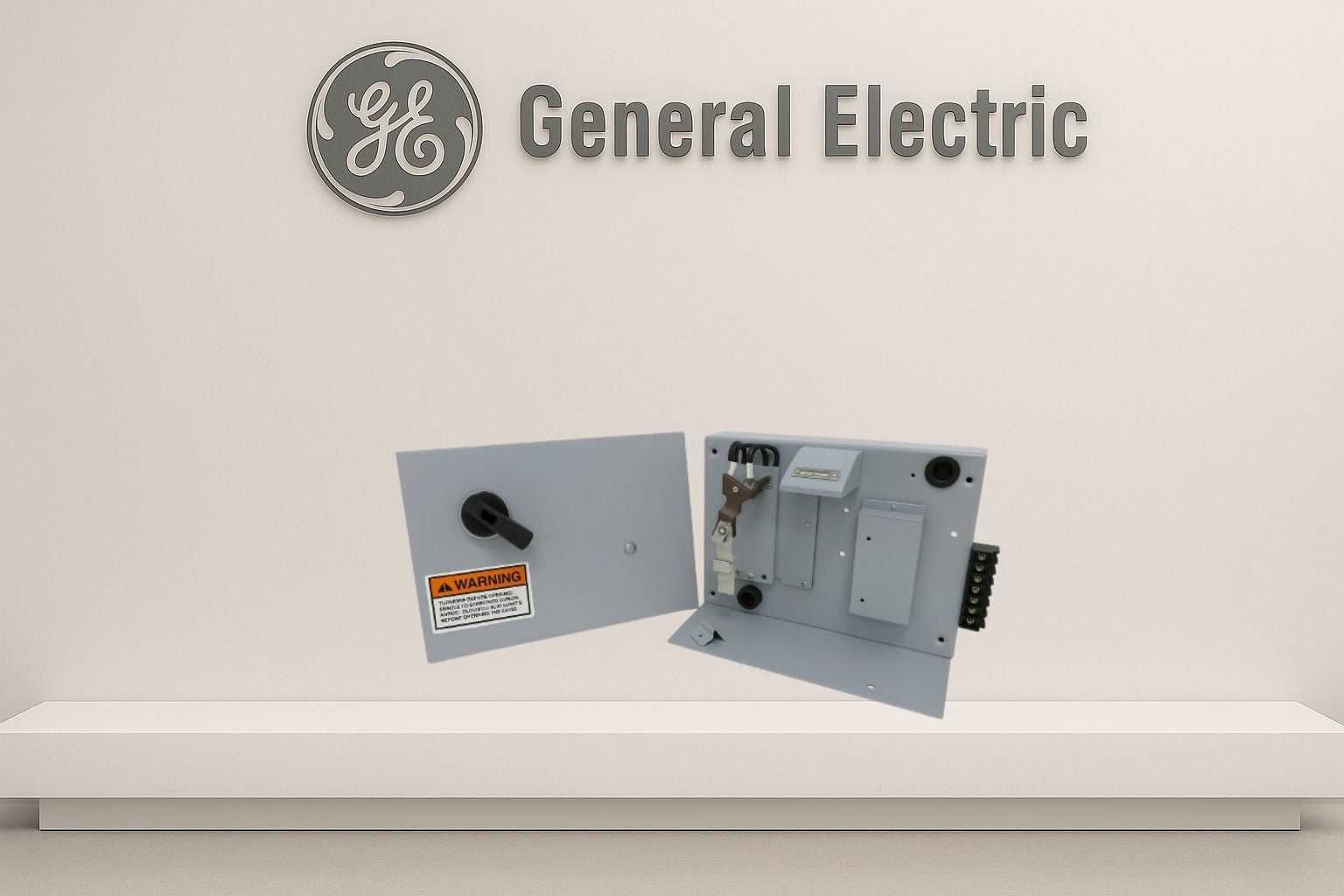

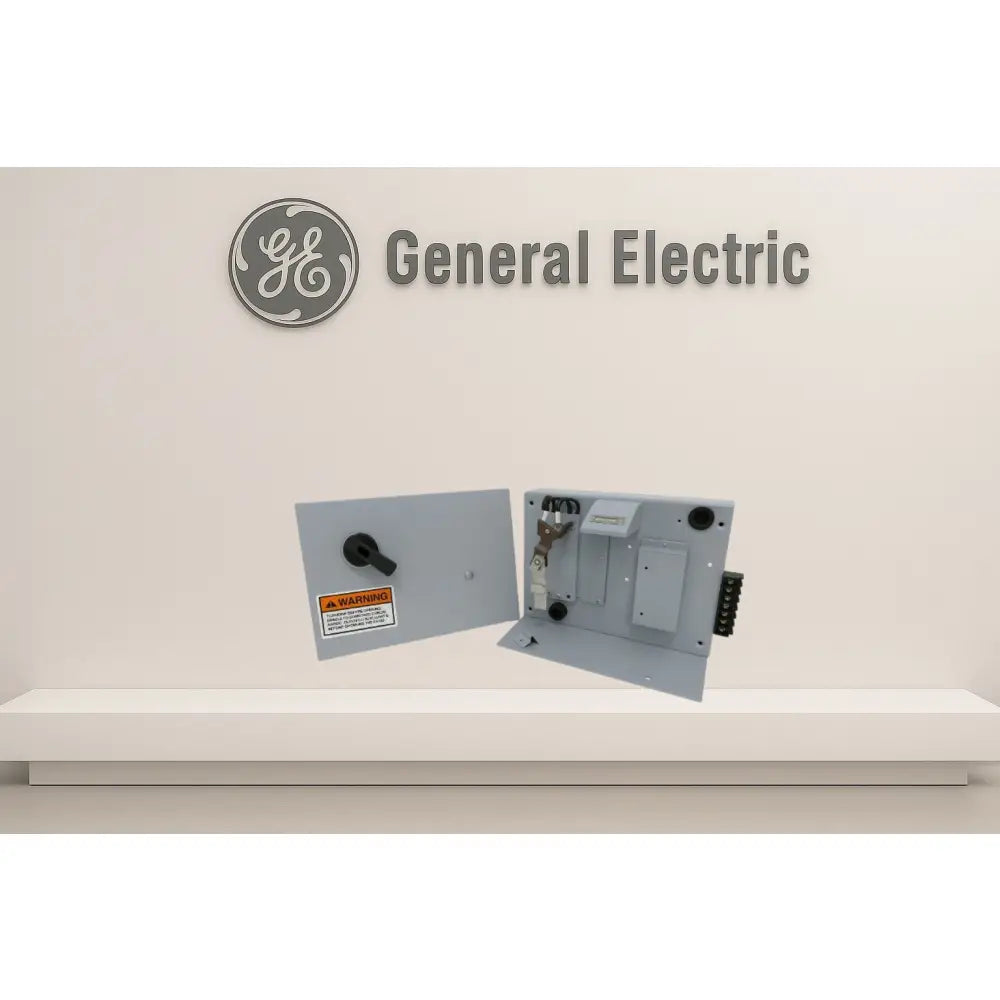

GE 7098 - Cutler Hammer 9800 Unitrol - Breaker MCC Bucket - 75 A, 240 V, 15" Height, 3 P | AmpState

The GE 7098 - Cutler Hammer 9800 Unitrol Breaker MCC Bucket is built for industrial motor control centers that demand precise protection, dependable performance, and easy retrofit. Designed to fit GE 7098 centers, this 75 A, 240 V, 3-Pole MCC bucket delivers a seamless, drop-in solution for aging or expanding motor control lineups. At a practical 15" height, it preserves enclosure alignment and ensures straightforward wiring and bus-bar connections for a clean, reliable installation.

Key specifications

• Brand: GE
• Series: 9800 Unitrol
• Configuration: Breaker MCC Bucket
• Rating: 75 A, 240 V
• Poles: 3-Pole
• Bucket Height: 15 inches
• Application: Direct replacement or retrofit in GE 7098 motor control centers

Why this MCC bucket stands out

When you’re upgrading or maintaining industrial motor control systems, precision fit and reliable protection matter as much as the breaker’s trip characteristics. This GE 7098 MCC bucket is purpose-built for 3-phase motor loads, delivering balanced protection across all phases while maintaining consistent electrical clearance and bus alignment. The 75 A, 240 V rating is ideal for medium-strength motors and feeder circuits, helping to prevent nuisance trips while providing robust short-circuit protection when it’s needed most.

Ideal use cases

• Upgrading legacy GE 7098 centers with a modern, compatible Unitrol MCC bucket to restore or improve protection performance.
• Retrofit projects where an exact-fit 15" high, 3-Pole, 75 A, 240 V breaker bucket is required to preserve cabinet layout and wiring harness routing.
• Replacement for failed or worn MCC buckets within industrial facilities that rely on reliable motor control for conveyors, pumps, fans, and processing equipment.

Practical benefits and insights

• Exact mechanical and electrical fit: Engineered to drop into GE 7098 centers without custom modifications, preserving mounting holes, bus bars, and cable paths.
• Reliable three-phase protection: The 3-Pole configuration ensures synchronized tripping across all phases, which helps protect motors from phase imbalances and line faults.
• Support and accessibility: AmpState provides not only the hardware but also retrofit guidance and worldwide delivery to keep projects on schedule.
• Easy sourcing for maintenance programs: Availability of a direct replacement option simplifies stocking and maintenance planning for mid-to-large scale facilities.
• Consistent performance in demanding environments: Built for industrial motor control applications where downtime is costly and protection is critical.

Install and compatibility notes

Before installation, verify that the existing GE 7098 motor control center is configured for 3-Pole, 240 V service and that the bucket’s 15" height aligns with the cabinet’s interior spacing. This unit is designed for straightforward replacement or retrofit in compatible GE 7098 lineups, helping minimize downtime while restoring reliable motor protection in routine and peak operation scenarios.

With the GE 7098 - Cutler Hammer 9800 Unitrol Breaker MCC Bucket, you’re choosing a purpose-built solution that aligns with GE’s design standards and AmpState’s retrofit support—delivering dependable protection, streamlined maintenance, and a clear path to long-term motor control reliability.
