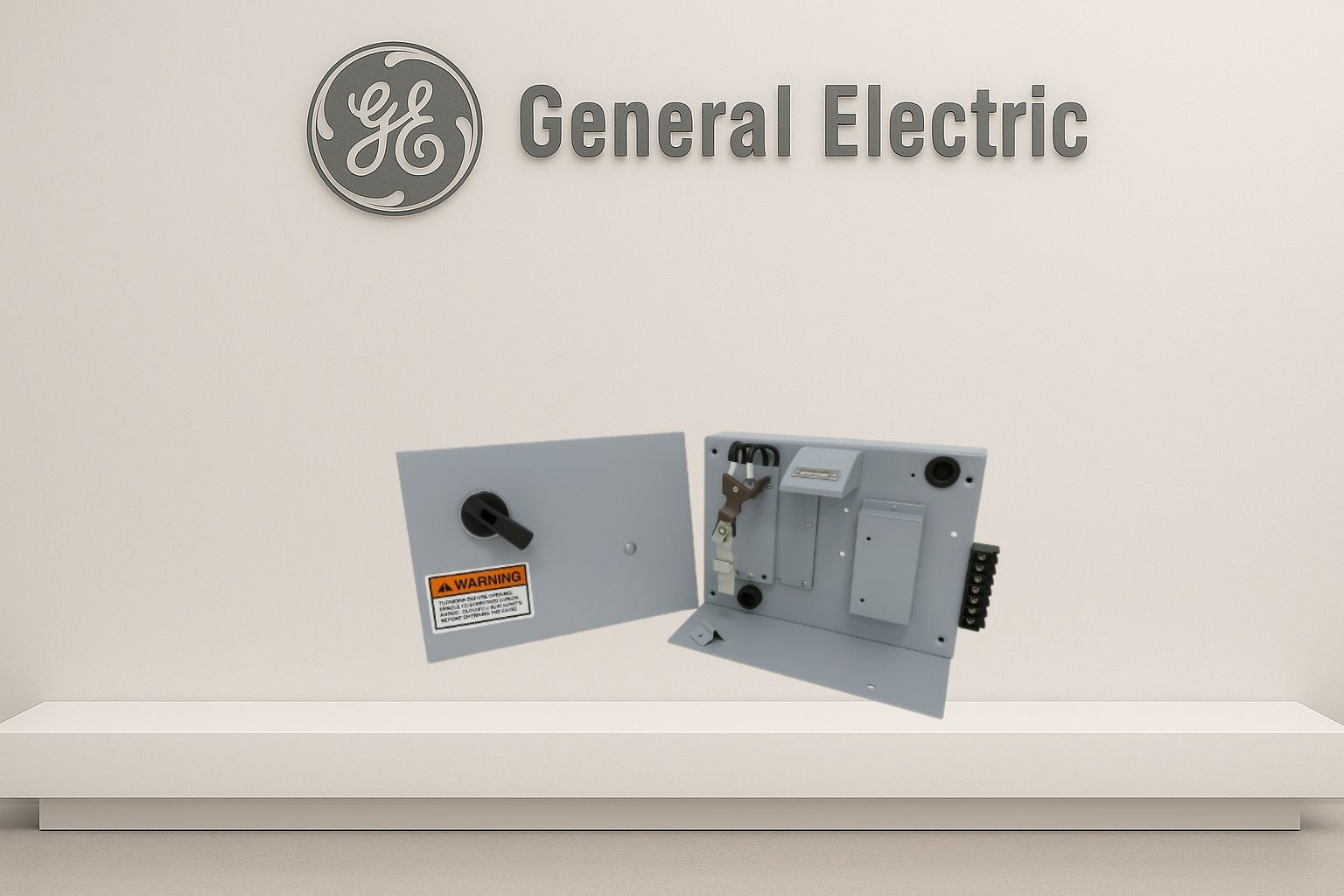

GE 7098 - Cutler Hammer 9800 Unitrol - Breaker MCC Bucket - 250 A, 600 V, 12" Height, 3 P | AmpState

Engineered for demanding industrial motor control centers, the GE 7098 Breaker MCC Bucket from the 9800 Unitrol family delivers reliable, high-capacity protection and control for heavy-duty applications. Designed with a 250 A, 600 V, 3-Pole configuration and a compact 12" bucket height, this unit is built for straightforward integration into GE 7098 MCCs and can function as a direct replacement or retrofit, helping you minimize downtime and preserve existing wiring layouts.

Key advantages that set this MCC bucket apart

• Direct-fit compatibility—specifically engineered to slide into GE 7098 motor control centers, reducing installation time and field adjustments.
• High-current capacity—250 A rating handles demanding motor loads and startup surges with confidence.
• Three-pole protection—3-Pole configuration provides balanced, reliable protection across all phases for three-phase systems.
• Compact, standard footprint—12" bucket height aligns with common GE MCC dimensions, simplifying retrofits and panel upgrades.
• Renowned reliability—part of the GE 9800 Unitrol line, built for long-term performance in industrial environments.
• Retrofit-ready solution—an ideal upgrade path for aging MCC fleets, extending life without a complete panel replacement.

Why it matters in real-world operations

In facilities like manufacturing floors, pumping stations, processing plants, and large HVAC systems, motor control centers endure frequent starts, stops, and fault conditions. This MCC bucket delivers predictable protection, enabling safe isolation of faults and reducing the risk of cascading electrical issues. With a 600 V rating, it supports modern, higher-voltage drives and equipment, while the 250 A capacity provides headroom for motor starters, soft starters, or VFD interfaces often found in today’s industrial setups.

Specifications at a glance

• Brand: GE
• Series: 9800 Unitrol
• Configuration: Breaker MCC Bucket
• Rating: 250 A, 600 V, 3-Pole
• Bucket Height: 12 inches

Compatibility and retrofit considerations

Designed as a direct replacement or retrofit unit for GE 7098 motor control centers, this MCC bucket preserves existing bus structures and wiring trajectories. Its 12" height and 3-Pole arrangement ensure seamless alignment with standard GE 7098 layouts, making it a practical upgrade when upgrading motor protection, improving voltage tolerance, or restoring controller performance after component wear.

Delivery, support, and practical guidance

AmpState provides the GE 7098 Breaker MCC Bucket with global delivery and technical support for industrial motor control applications. Whether you’re refreshing an aging MCC lineup or planning a facility-wide upgrade, our team can assist with specifications alignment, installation considerations, and post-installation checks to keep your electrical distribution running smoothly.

Ideal use cases

• Replacing worn or obsolete MCC buckets within GE 7098 motor control centers
• Upgrading motor protection for high-demand conveyors, pumps, compressors, and process equipment
• Retrofit projects where downtime must be minimized and panel space conserved
• Facilities seeking reliable, industry-standard protection with straightforward maintenance
