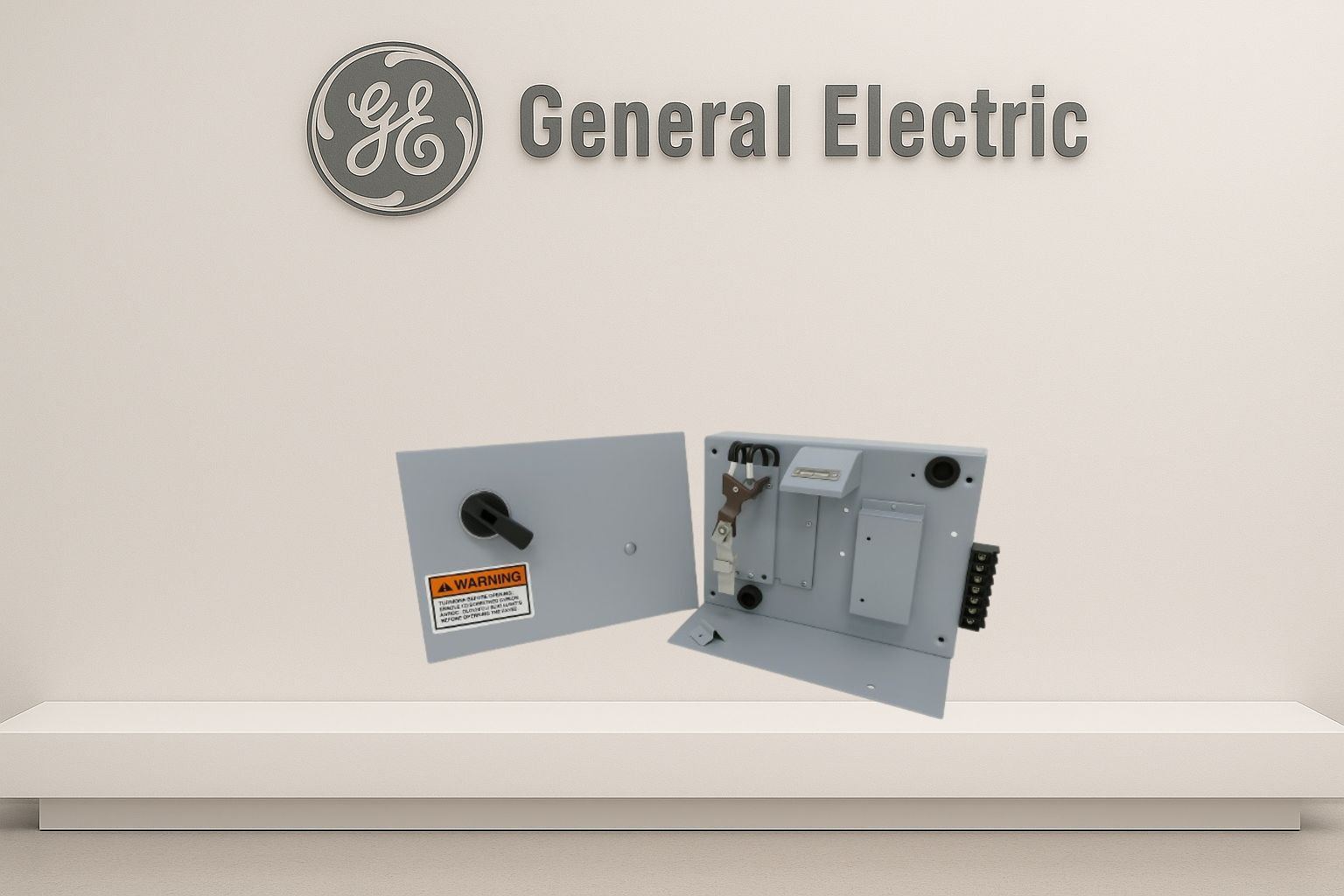

GE 7098 - Cutler Hammer 9800 Unitrol - Breaker MCC Bucket - 250 A, 240 V, 48" Height, 3 P | AmpState

GE 7098 - Cutler Hammer 9800 Unitrol Breaker MCC Bucket is built for demanding industrial motor control centers that require a robust, ready-to-install 250 A, 240 V, 3-Pole MCC bucket. Designed to fit GE 7098 motor control centers, this unit serves as a direct replacement or retrofit option to refresh aging lineups without a complete panel redesign.

• Precise electrical rating: 250 A, 240 V, 3-Pole configuration to handle demanding motor loads with reliable protection and control.
• Standardized form factor: 48" bucket height that aligns with GE 7098/MCC rack systems for straightforward integration.
• Direct replacement or retrofit: Engineered to drop into existing GE 7098 centers or to upgrade existing lineups within the 9800 Unitrol family, minimizing downtime and wiring changes.
• Industrial-grade design: Built for continuous operation in plant environments, with the mechanical and electrical interface expected in Cutler Hammer 9800 Unitrol architecture.
• AmpState support: Backed by AmpState's global delivery and technical support network, ensuring parts availability and expert guidance during installation.

Applications and Use Cases

Ideal for facilities upgrading aging motor control centers or expanding a panel line where a 250 A, 240 V, 3-Pole MCC bucket is required. This unit is well-suited for pumping stations, manufacturing lines, HVAC motor feeders, and other heavy-industry applications that rely on reliable motor control center equipment.

Compatibility and Installation Considerations

Before installing, confirm the unit matches the existing GE 7098 MCC slot dimensions and wiring schemes. The 48" bucket height is designed to align with standard GE 7098 rack spacing, and the 3-Pole configuration supports three-phase motor loads. Have a licensed electrician perform the transfer, verify bus bar orientations, and torque specifications on connectors to ensure a safe, compliant installation.

Technical Specifications

• Brand: GE
• Series: 9800 Unitrol
• Configuration: Breaker MCC Bucket
• Rating: 250 A, 240 V, 3-Pole
• Bucket Height: 48 inches

AmpState offers this GE 7098 Breaker MCC Bucket as part of a comprehensive retrofit strategy for industrial motor control centers. With global delivery and knowledgeable technical support, AmpState makes it easier to maintain, upgrade, and extend the life of critical electrical infrastructure.
