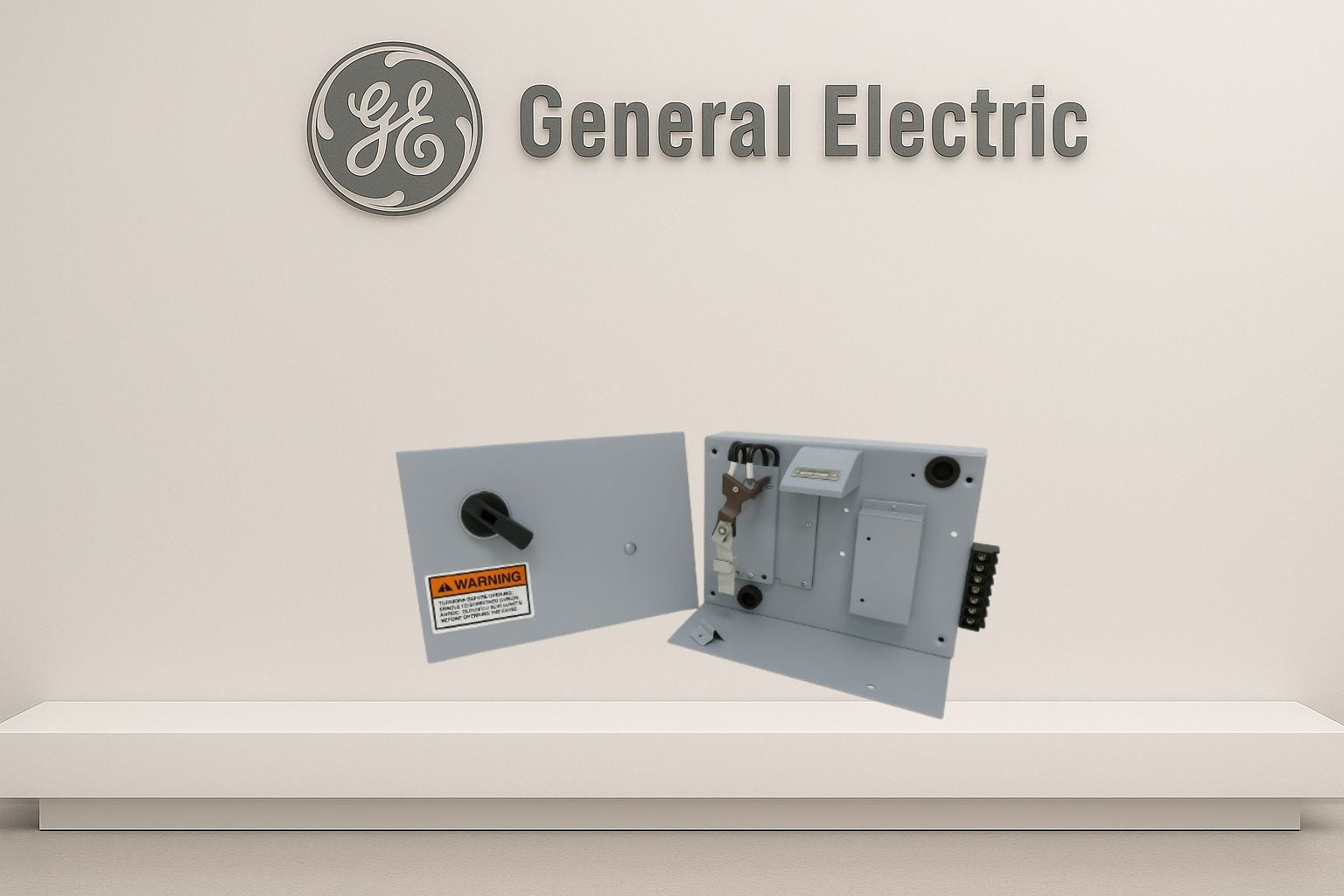

GE 7098 - Cutler Hammer 9800 Unitrol - Breaker MCC Bucket - 225 A, 480 V, 48" Height, 3 P | AmpState

Engineered for industrial motor control centers, the GE 7098 Breaker MCC Bucket—part of the 9800 Unitrol family—delivers robust protection, precise control, and seamless retrofit options for demanding facilities. This unit is designed to fit GE 7098 MCCs as a direct replacement or retrofit, preserving your existing bus structures while upgrading safety and reliability for heavy motor loads.

Overview and Unique Value

The 225 A, 480 V, 3-Pole configuration is built to handle large motors, pumps, conveyors, and other demanding loads. With a 48" bucket height, it aligns with standard GE 9800 Unitrol footprints, ensuring straightforward integration into your current gear. The Breaker MCC Bucket design concentrates protection and control within a dedicated module, simplifying maintenance and improving fault isolation in busy industrial environments.

Key Specifications

• Brand: GE
• Series: 9800 Unitrol
• Configuration: Breaker MCC Bucket
• Rating: 225 A, 480 V, 3-Pole
• Bucket Height: 48"

Why it matters: Use cases and benefits

Whether you’re retrofitting aging MCCs or equipping a new installation, this bucket provides a reliable backbone for motor control centers. The 225 A, 480 V, 3-Pole rating supports large motors, pumps, and feeders while offering centralized protection and streamlined maintenance. Its compatibility with the GE 7098 frame and 48" Unitrol footprint minimizes retrofit complexity and downtime.

• Direct replacement: reduces commissioning time and aligns with existing GE 7098 configurations.
• Centralized protection: integrated breaker-based control enhances safety and fault isolation.
• Scalable retrofit: supports upgrades to Unitrol protection features and expanded motor capacity.
• Global support: AmpState provides worldwide delivery and technical assistance for industrial motor control applications.

Ideal for

Industrial environments with heavy-duty motor loads, including manufacturing lines, processing plants, mining operations, water treatment facilities, and large facilities requiring reliable, centralized motor control and protection solutions.

Installation and care tips

Have a qualified electrical technician perform installation or replacement. Verify compatibility with your GE 7098 MCC framework, bus arrangement, and wiring. Adhere to proper torque specifications for connectors and ensure the protective devices match the 225 A, 480 V, 3-Pole configuration. Regular inspections of contacts and breakers help sustain dependable performance between service intervals.

Why choose AmpState

AmpState specializes in high-quality MCC buckets and retrofit solutions, offering global delivery and expert technical support to keep your motor control projects on track. With the GE 7098 Breaker MCC Bucket in your lineup, you gain a proven, field-ready upgrade path and the assurance that spare parts and service are readily available.
