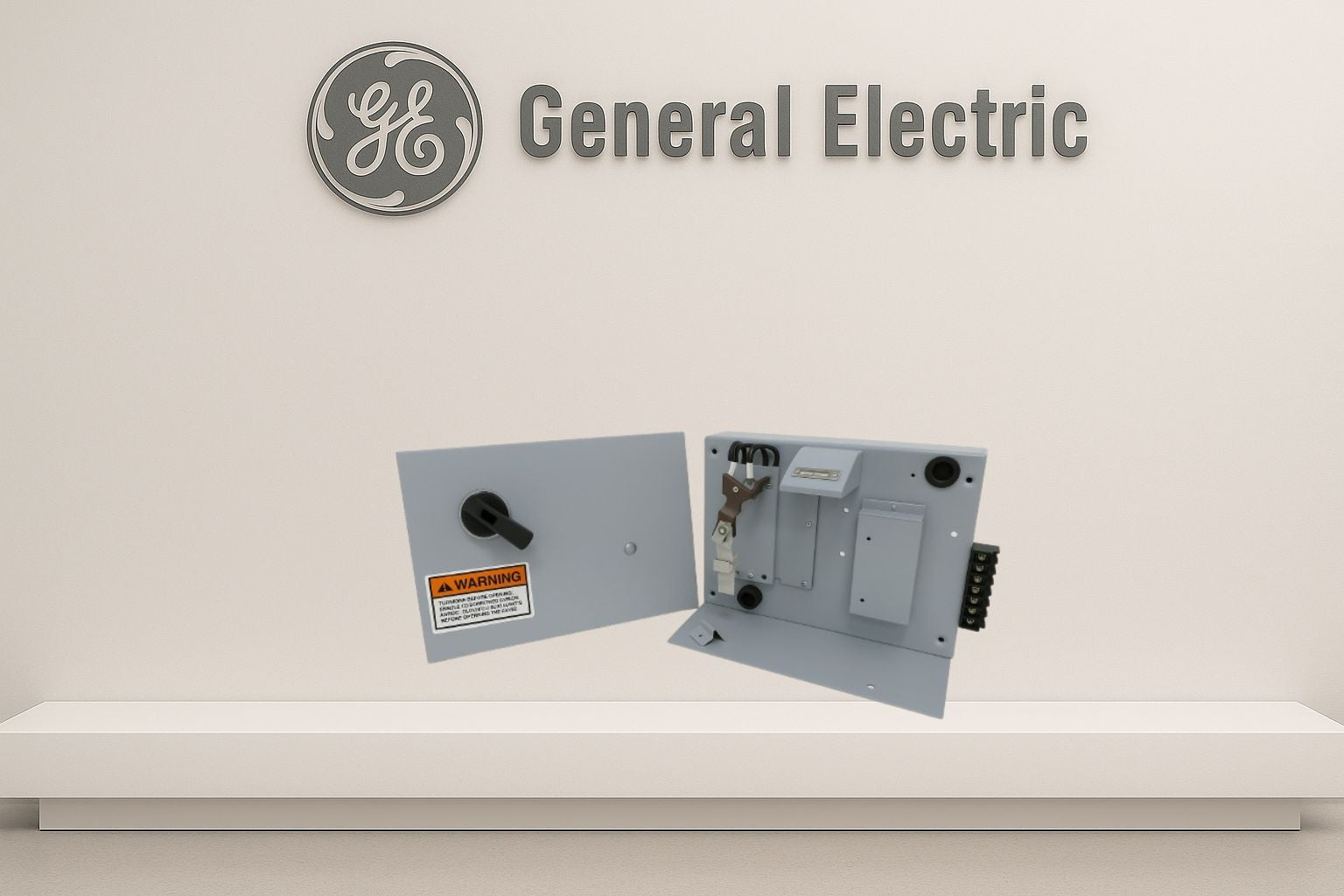

GE 7098 - Cutler Hammer 9800 Unitrol - Breaker MCC Bucket - 200 A, 600 V, 30" Height, 3 P | AmpState

Engineered for demanding industrial motor control environments, the GE 7098 - Cutler Hammer 9800 Unitrol Breaker MCC Bucket delivers a precise, ready-to-install solution designed to slot directly into GE 7098 motor control centers. With a robust 200 A, 600 V, 3-Pole configuration and a full 30" bucket height, this unit preserves your protection and control scheme while enabling seamless retrofits or replacements in high-current applications.

• Direct-fit compatibility with GE 7098 motor control centers for a streamlined swap-in process that minimizes downtime and avoids reconfiguring surrounding components.
• Unitrol-aligned protection ensures predictable protection behavior under load, maintaining coordination with existing overload and short-circuit protection strategies.
• 30" bucket height designed to align with the standard GE 7098 footprint, ensuring easy interconnections and accessible maintenance.
• 200 A, 600 V, 3-Pole capacity capable of handling the demands of modern motor drives, pumps, and heavy conveyors without compromising safety interlocks.
• Retrofit-ready design supports aging MCCs and plant upgrades while preserving control logic and protective interlocks.

Ideal use cases

• Modernizing legacy GE 7098 MCCs in manufacturing lines, pumping systems, and heavy material handling where reliability is non-negotiable.
• Replacing worn or failed MCC buckets in high-demand motor drives to restore performance quickly.
• Plant upgrades or capacity upgrades where maintaining electrical characteristics is critical to system stability.

What sets this unit apart

The 9800 Unitrol family alignment provides consistent protection behavior, so you can expect stable coordination with minimal reconfiguration. Its direct-fit compatibility with GE 7098 centers reduces installation risk and speeds up commissioning. Built to endure demanding industrial environments, this bucket preserves existing control logic and safety interlocks, delivering dependable operation across start-stop cycles and heavy load conditions.

Practical installation tips

• Before swapping, verify that surrounding MCC components accommodate a 30" bucket height to ensure proper clearance for maintenance access.
• Coordinate protection settings to preserve the same overload and short-circuit characteristics during retrofit to avoid unexpected trips.
• Schedule a controlled shutdown window to swap the bucket, followed by a post-installation functional check on all motor circuits.
• Prepare spare components and reference GE 7098 interlock wiring to minimize downtime during commissioning.

AmpState offers the GE 7098 Breaker MCC Bucket as part of a comprehensive lineup of retrofit solutions for industrial motor control. With global delivery and dedicated technical support, AmpState helps you source the right unit and provides guidance through installation and commissioning, ensuring your plant stays productive during transitions.
