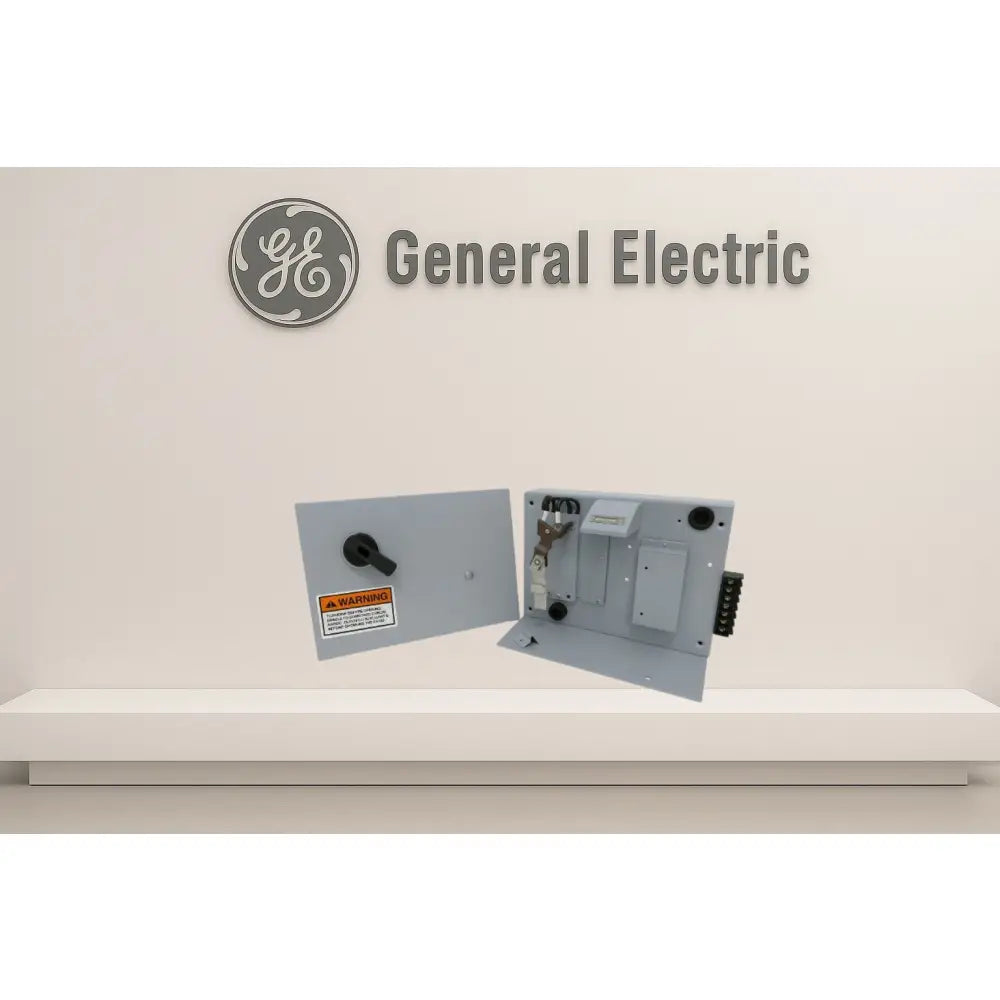

GE 7098 - Cutler Hammer 9800 Unitrol - Breaker MCC Bucket - 200 A, 480 V, 36" Height, 3 P | AmpState

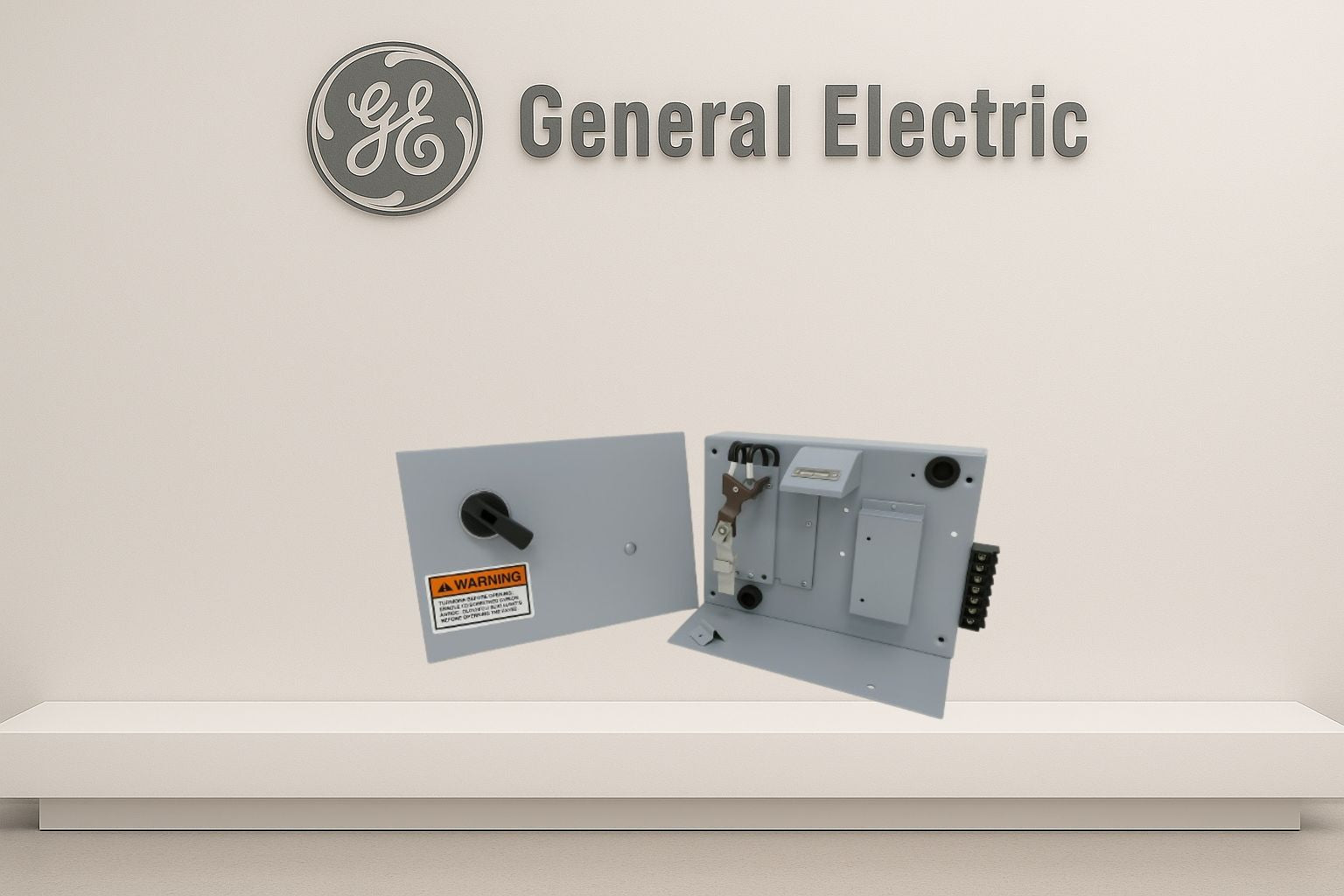

Introducing the GE 7098 - Cutler Hammer 9800 Unitrol Breaker MCC Bucket, purpose-built for high-demand motor control centers. This 200 A, 480 V, 3-Pole bucket, standing 36 inches tall, is designed to drop into GE 7098 MCCs as a dependable direct replacement or retrofit. It keeps protection and control aligned with modern standards while minimizing your modification workload.

Overview

The 9800 Unitrol bucket is a robust, modular solution for legacy and expanding MCC lineups. With a standardized 36" height, it fits seamlessly into existing GE 7098 bays, rails, and interlocks, preserving wiring layouts and bus connections during upgrades. This makes it an ideal upgrade path for aging centers or facilities expanding their motor control capabilities.

Key Benefits

• Direct replacement or retrofit—upgrade your GE 7098 center without a full redesign, preserving existing electrical paths and reducing installation time.
• Heavy-duty protection for demanding motors in pumps, conveyors, fans, and process equipment with a reliable 200 A, 480 V, 3-Pole configuration.
• Compatibility by design—36" bucket height ensures a standardized fit within GE 7098 bays, compatible with common rails, enclosures, and interlock schemes.
• Unitrol 9800 family compatibility—provides a cohesive protection and control strategy across multiple MCCs for easier maintenance planning.
• Operational efficiency—minimize downtime and wiring changes during replacement, helping plant teams stay on schedule with preventive maintenance and upgrades.
• AmpState support—global delivery, expert guidance, and hands-on technical assistance to confirm compatibility and streamline your project from order to energization.

Ideal Use Scenarios

• Retrofits of aging GE 7098 motor control centers to restore reliable protection for critical loads.
• New installations that require a proven, modular MCC bucket with standardized dimensions and wiring practices.
• Facilities seeking to standardize motor protection across multiple MCCs for easier maintenance and stocking of spare parts.
• Maintenance projects aligned with preventive maintenance cycles, minimizing downtime during upgrades.

Specifications at a Glance

• Current rating: 200 A
• Voltage: 480 V
• Configuration: 3-Pole
• Bucket height: 36 inches
• Series/compatibility: GE 9800 Unitrol, fits GE 7098 motor control centers

Installation & Practical Tips

• Verify your control center is GE 7098 and that the 9800 Unitrol, 200 A, 480 V, 3-Pole bucket is the correct retrofit for your lineup.
• Plan for straightforward wiring and bus connection checks during replacement to minimize downtime.
• Coordinate with your preventive maintenance schedule to align with other MCC upgrades for a smoother energization plan.
• Confirm the 36" height fits within your enclosure spacing and mounting rails to avoid clearance issues.

AmpState Advantage

AmpState delivers high-quality MCC buckets and retrofit solutions with global delivery and hands-on technical support for industrial motor control applications. Rely on our expert guidance to confirm compatibility, plan replacements, and streamline your project from order to energization.

Whether retrofitting an older GE 7098 center or equipping a new installation with a proven, modular MCC component, the GE 7098 - Cutler Hammer 9800 Unitrol Breaker MCC Bucket offers a focused, purpose-built solution that supports reliability, standardization, and long-term maintenance planning in demanding industrial environments.
