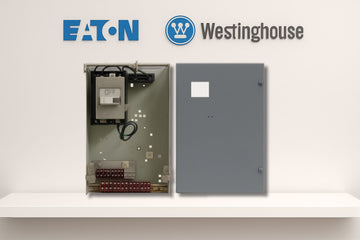

Eaton - Westinghouse - Type W - Breaker MCC Bucket - 300 A, 480 V, 42" Height, 3 P | AmpState

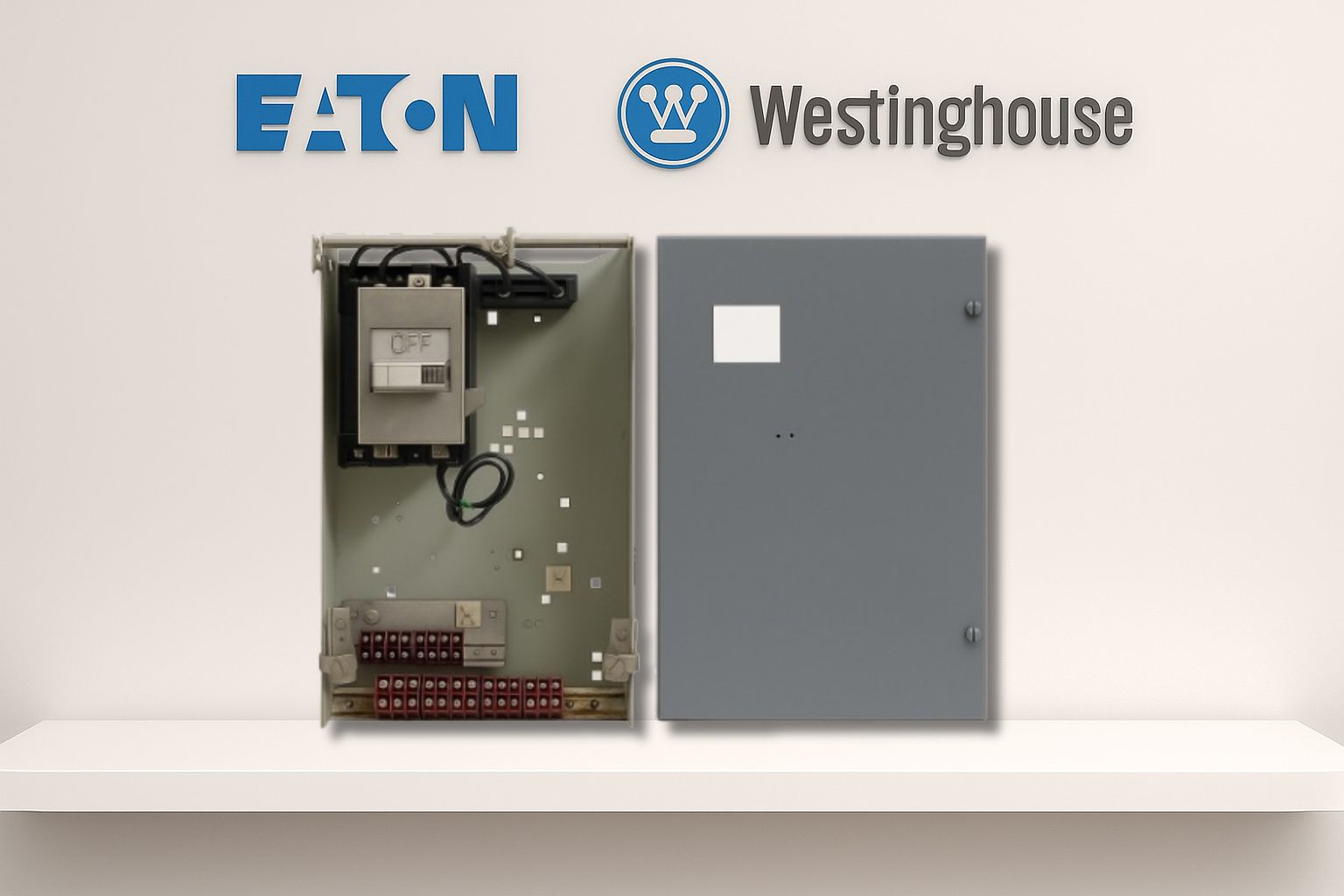

Eaton Type W Breaker MCC Bucket — 300 A, 480 V, 3-Pole, 42" tall is engineered to seamlessly integrate with Eaton Type W motor control centers. Designed as a direct OEM replacement and retrofit solution, this MCC bucket delivers reliable performance in demanding industrial environments where uptime and electrical integrity matter.

Why this MCC bucket stands out

• Exact fit for Eaton Type W systems: specifically configured to slide into Type W MCC frames without modification, preserving alignment with bus bars and connectors.
• Robust three‑phase power handling: 300 A at 480 V across 3 poles, ideal for high‑current motor drives, pumps, conveyors, and process equipment.
• Standardized 42" height: matches the common Type W frame size, simplifying layout planning and ensuring consistent enclosure dimensions across the plant.
• Direct replacement and retrofit ready: minimizes downtime and compatibility concerns when upgrading or renewing aging MCC baskets.
• Trusted sourcing: AmpState supplies high‑quality MCC components with global delivery, supporting international projects and rapid replenishment.

Ideal use cases

Use this bucket when you need a dependable, three‑pole breaker compartment that fits into existing Eaton Type W MCC installations. It’s well-suited for:

• Retrofits of aging motor control centers to restore reliable protection and control for critical equipment.
• New builds where Eaton Type W architecture is the preferred MCC standard for standardization and maintainability.
• Spare or replacement strategy in facilities with multiple Type W frames to reduce downtime in maintenance windows.

What problems it solves

• Eliminates the guesswork of compatibility by offering a guaranteed fit for Eaton Type W systems.
• Supports consistent protection for high‑load, three‑phase motors, helping to prevent extended outages and equipment damage.
• Streamlines procurement for retrofits and new installations with a single, reliable source from AmpState.

Specifications at a glance

• Brand: Eaton
• Model: Type W
• Configuration: Breaker MCC Bucket
• Rating: 300 A, 480 V, 3‑Pole
• Height: 42 inches

Practical considerations and tips

Before installation, confirm that your MCC frame is compatible with the Type W bucket design and that the bus layout aligns with the 3‑pole configuration. This bucket is purpose‑built for reliability in industrial settings, so paired with proper protective coordination and maintenance practices, it helps sustain steady plant operation and predictable protection performance.
