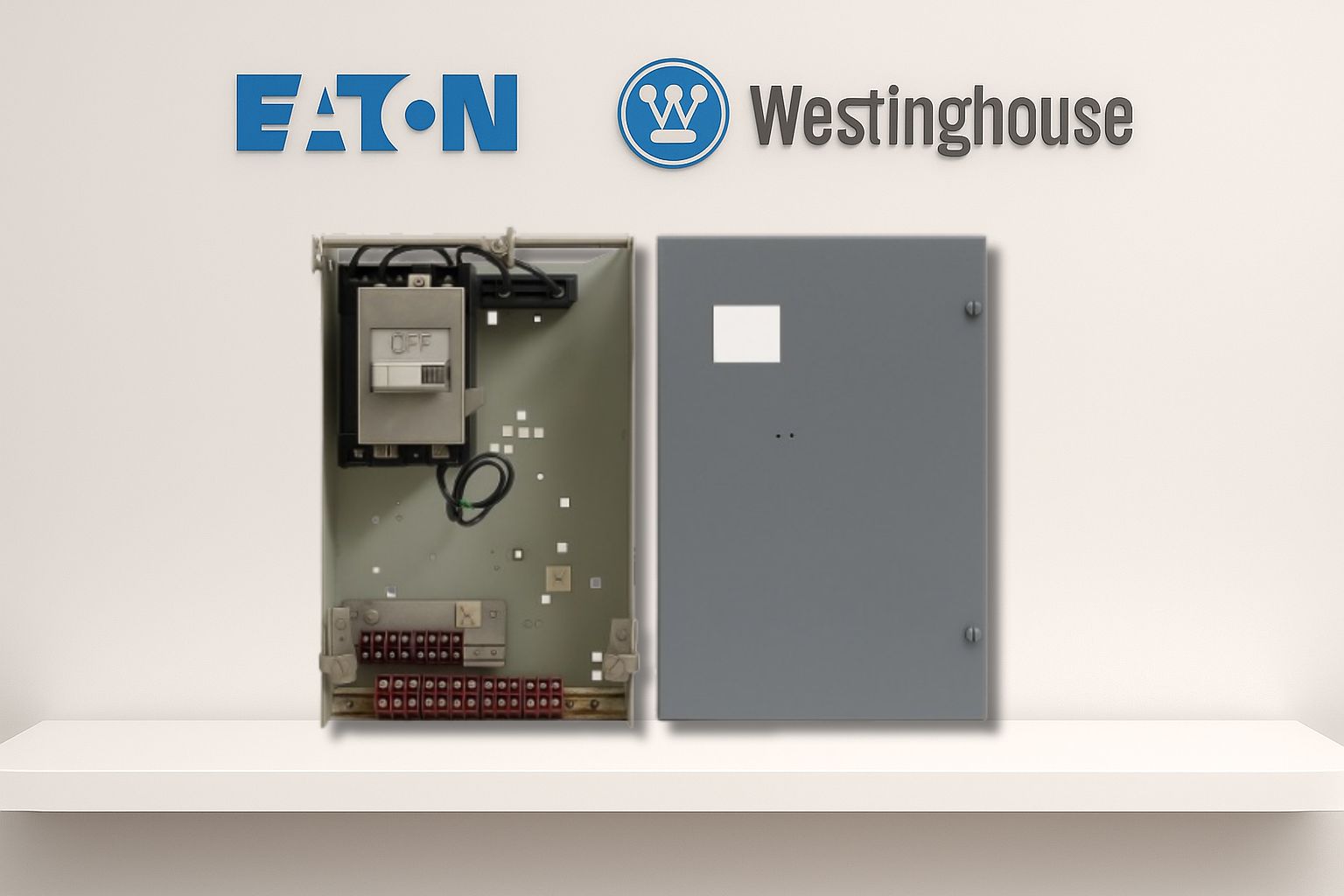

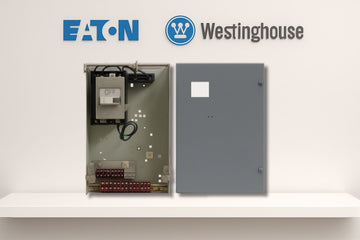

Eaton - Westinghouse - Type W - Breaker MCC Bucket - 30 A, 480 V, 6" Height, 3 P | AmpState

The Eaton Type W Breaker MCC Bucket is purpose-built for industrial motor control centers, delivering precise protection for three-phase systems with a 30 A, 480 V rating in a compact 6" high footprint. Designed as a direct OEM replacement, this MCC bucket slides into existing Eaton Type W configurations, making upgrades and retrofits smooth, predictable, and downtime-minimal.

• Brand: Eaton
• Model/Configuration: Type W, Breaker MCC Bucket
• Rating: 30 A, 480 V, 3-Pole
• Height: 6 inches

Why engineers choose the Eaton Type W MCC Bucket

This unit is engineered specifically for use in Eaton Type W motor control center systems, guaranteeing alignment with your existing bus connections, mounting geometry, and interlock schemes. Its 3-pole design ensures balanced three-phase protection for motors, conveyors, pumps, fans, and other heavy electrical loads, helping to maintain consistent protection across your MCC assembly.

Key benefits in real-world installations

• OEM-ready performance: A true replacement part that preserves original protection coordination and wiring schemes, reducing retrofit risk.
• Space-conscious design: The 6" height fits tighter MCC enclosures without sacrificing reliability or accessibility for inspections.
• Stable three-phase operation: 3-Pole configuration supports synchronized switching and minimized imbalance across motors and loads.
• Versatile compatibility: Specifically intended for 30 A, 480 V circuits, making it a practical upgrade path for upgrading older MCCs or refreshing worn components.
• Global delivery, local confidence: AmpState sources top-tier MCC components and ships them worldwide, backing your project timelines with dependable availability.

Who benefits most

Maintenance teams, plant engineers, and OEMs who manage medium-duty motor control centers will appreciate the straightforward fit and reliable performance of this Type W MCC bucket. It’s ideal for facilities upgrading to modern protection topology, retrofitting aging MCCs, or stocking spare parts that align with Eaton’s Type W standard.

Practical usage tips

• Verify that your MCC bucket is a true Type W system and that the replacement matches the 30 A, 480 V, 3-Pole specification before installation.
• Prepare for a seamless swap by keeping matching mounting hardware and bus bar connections organized to minimize downtime during retrofits.
• Follow the facility’s standard electrical safety procedures and the MCC manual for installation orientation and any torque recommendations applicable to Type W components.
• Because this is a direct replacement, avoid altering surrounding wiring or interlocks unless required by your specific retrofit plan.

Choose the Eaton Type W Breaker MCC Bucket for a dependable, purpose-built solution that preserves system integrity, simplifies upgrades, and supports consistent motor protection across your industrial landscape. AmpState stands behind these MCC components with global delivery capability, ensuring you receive authentic, compatible parts when you need them most.
