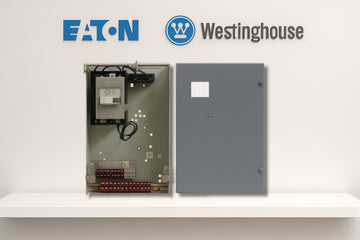

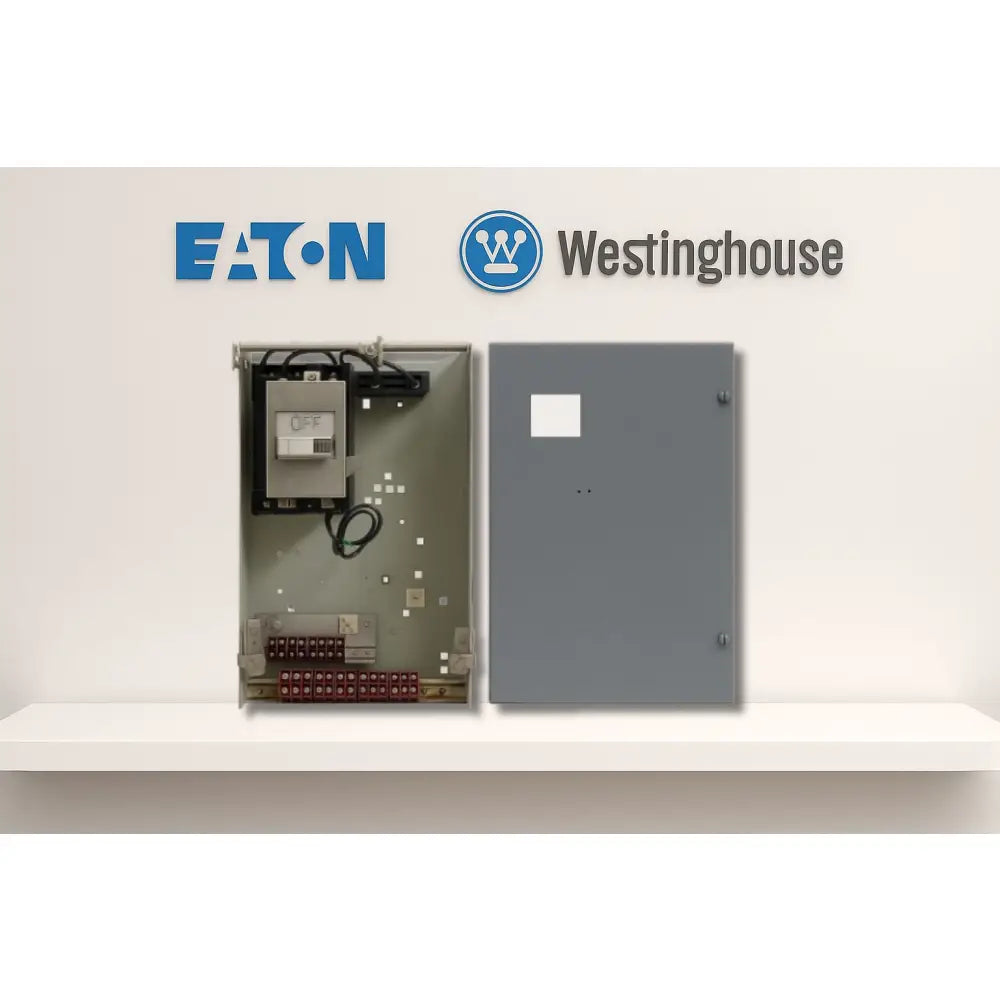

Eaton - Westinghouse - Type W - Breaker MCC Bucket - 250 A, 240 V, 42" Height, 3 P | AmpState

Engineered for the most demanding industrial motor control environments, the Eaton Type W Breaker MCC Bucket – 250 A, 240 V, 3-Pole, 42" tall – is built to power large motor loads with reliability. This 42-inch tall MCC bucket is specifically designed to slot into Eaton Type W motor control centers, delivering a precise, drop-in replacement for OEM components and retrofit projects. When uptime matters, this unit provides consistent performance and streamlined serviceability in demanding applications.

Key specifications at a glance

• Brand/Model: Eaton Type W Breaker MCC Bucket
• Rating: 250 A, 240 V
• Configuration: 3-Pole Breaker MCC Bucket
• Height: 42 inches
• Application: Industrial motor control centers (MCC) requiring Type W compatibility
• Replacement type: Direct replacement for OEM Type W MCC buckets and retrofit projects
• Provider: AmpState with global delivery

Why this Eaton Type W MCC Bucket stands out

• Direct fit for Type W MCC systems: Designed to integrate with existing Type W architectures, reducing installation complexity and the risk of misalignment.
• High-current capability: 250 A at 240 V supports robust motor starting and running in heavy-load environments, helping to manage power distribution for large equipment without compromise.
• Three-pole configuration for balanced control: Ensures synchronized switching and protection across all phases for reliable motor performance.
• Long-form, retrofit-ready design: A true drop-in replacement that minimizes downtime during upgrades or repairs, preserving original control logic and wiring layouts where possible.
• Compact, standardized footprint: The 42" height is optimized for modern MCC enclosures, enabling neat, service-friendly installation and future scalability.

Ideal use cases

This MCC bucket is a practical choice for facilities with heavy-duty motors and critical load profiles, including:

• Industrial manufacturing lines powering pumps, conveyors, and CNC systems
• Large HVAC and ventilation systems in commercial or industrial facilities
• Processing plants and material handling where dependable motor control is essential
• Retrofits or OEM-equivalent replacements in legacy Eaton Type W MCC installations

Practical benefits and outcomes

• Predictable performance: Maintains consistent protection and control for high-current motor loads, reducing unexpected outages and equipment wear.
• Streamlined maintenance: Familiar Eaton Type W architecture simplifies diagnostics and service planning for facilities with multiple MCC buckets.
• Operational versatility: Built to support a range of industrial motor applications, from fans and pumps to drives and process equipment.
• Global availability: AmpState’s international delivery ensures your downtime is minimized, with reliable shipping and support wherever you operate.

Compatibility and installation considerations

Use this unit when your MCC system requires a 250 A, 240 V, 3-Pole configuration in an Eaton Type W environment. As a direct OEM-compatible replacement, it preserves mounting and wiring alignment to speed up installation and reduce rework. Before installation, ensure the MCC enclosure accommodates the 42" height and verify electrical ratings align with your motor load requirements and protection settings. For best results, engage a qualified electrician or control technician to handle de-energized installation, proper bus connections, and safety interlocks.

Practical tips for deployment

• Cross-check the current energy profile of your motor loads to confirm that 250 A at 240 V meets future needs as loads scale.
• Document any OEM part numbers being replaced to ensure traceability and simplify future replacements or retrofits.
• Plan a staggered maintenance window to minimize production impact during MCC bucket swaps or upgrades.
• Store replacement components in a clean, dry area to prevent corrosion or contamination before installation.

With its rugged build, precise compatibility, and a clear path for retrofit and maintenance, the Eaton Type W Breaker MCC Bucket from AmpState delivers reliable power distribution for demanding industrial applications. Whether you’re upgrading an aging system or engineering a new installation, this 250 A, 240 V, 3-Pole MCC bucket is designed to help you keep critical equipment running smoothly, with the confidence of a standardized, OEM-compatible solution and global delivery support.
