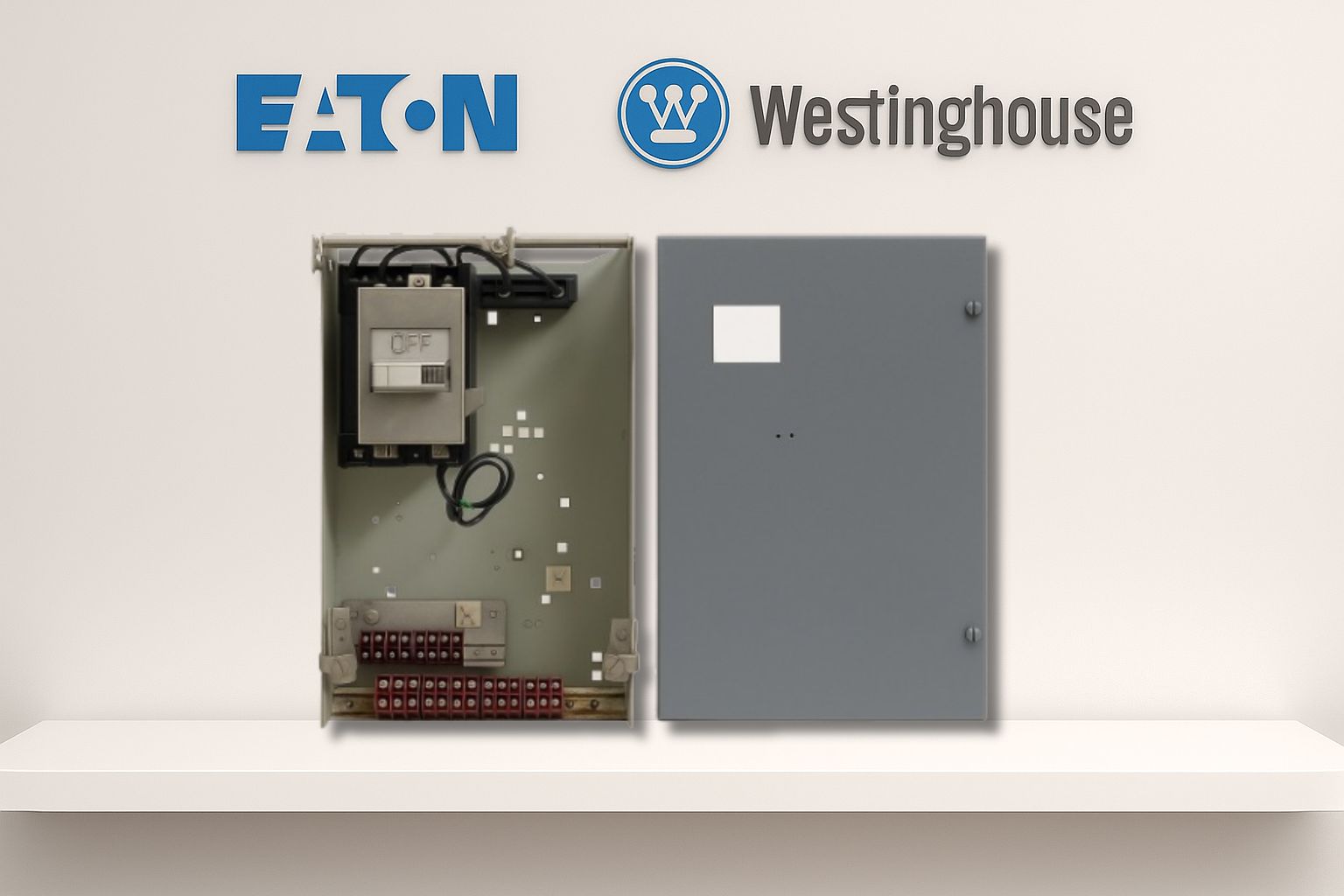

Eaton - Westinghouse - Type W - Breaker MCC Bucket - 225 A, 480 V, 36" Height, 3 P | AmpState

Engineered for industrial motor control, the Eaton Type W Breaker MCC Bucket from AmpState delivers a precise 225 A, 480 V, 3‑Pole configuration in a 36" tall housing. Built as a direct OEM replacement, this MCC bucket integrates seamlessly with Eaton Type W motor control centers, enabling fast retrofits, dependable operation, and reduced downtime on demanding production lines.

Why this MCC bucket stands out

• OEM-compatible fit—designed to drop into existing Eaton Type W MCC systems without modification, preserving alignment, bus connections, and wiring schematics.
• Full 3‑phase power handling—rated for 225 A and 480 V, making it suitable for medium‑to‑high horsepower motors common in manufacturing, pumping, and material handling.
• Standardized footprint—36" height matches industry‑standard Type W bucket dimensions, simplifying stocking and installation across multiple sites.
• Reliable replacement for wear and retrofit projects—a practical solution for OEM replacements and upgrades that reduces planning time and keeps equipment running smoothly.
• Global delivery with trusted support—AmpState supplies high‑quality MCC components with reliable worldwide shipping and responsive technical assistance.

Key specifications

• Brand: Eaton
• Model: Type W
• Configuration: Breaker MCC Bucket
• Rating: 225 A, 480 V, 3‑Pole
• Height: 36 inches
• Application: Industrial motor control; direct replacement for OEM and retrofit use

Ideal use cases

• Replacing worn or failed MCC buckets in existing Eaton Type W systems to restore full motor control authority.
• Upgrading motor circuits to a 225 A, 480 V, 3‑pole configuration to support larger or more efficient motors.
• Retrofit projects in manufacturing lines, packaging equipment, conveyors, and HVAC motor control cabinets where downtime is costly.
• New installations that require a proven, OEM‑matched MCC bucket with straightforward integration.

Installation and compatibility considerations

• Ensure the enclosure and mounting provisions align with the 36" Type W footprint; verify bolt patterns and bus bar interfaces match your existing MCC rig.
• Follow applicable electrical codes and lockout/tagout procedures during replacement. Proper torque on hardware and correct bus connections are essential for safe operation.
• Confirm that the 225 A, 480 V, 3‑Pole rating matches the motor load and protection strategy of your system to prevent nuisance tripping or equipment stress.
• Consider coordinating with your electrical engineer or service technician for a smooth retrofit, especially in high‑duty environments.

Why choose AmpState

AmpState delivers authentic, high‑quality MCC components with global reach, backed by knowledgeable support and fast fulfillment. When you select this Eaton Type W Breaker MCC Bucket, you’re choosing a reliable, purpose‑built replacement that minimizes downtime and preserves the integrity of your motor control center.
