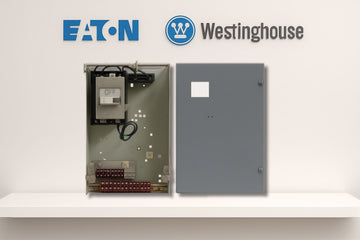

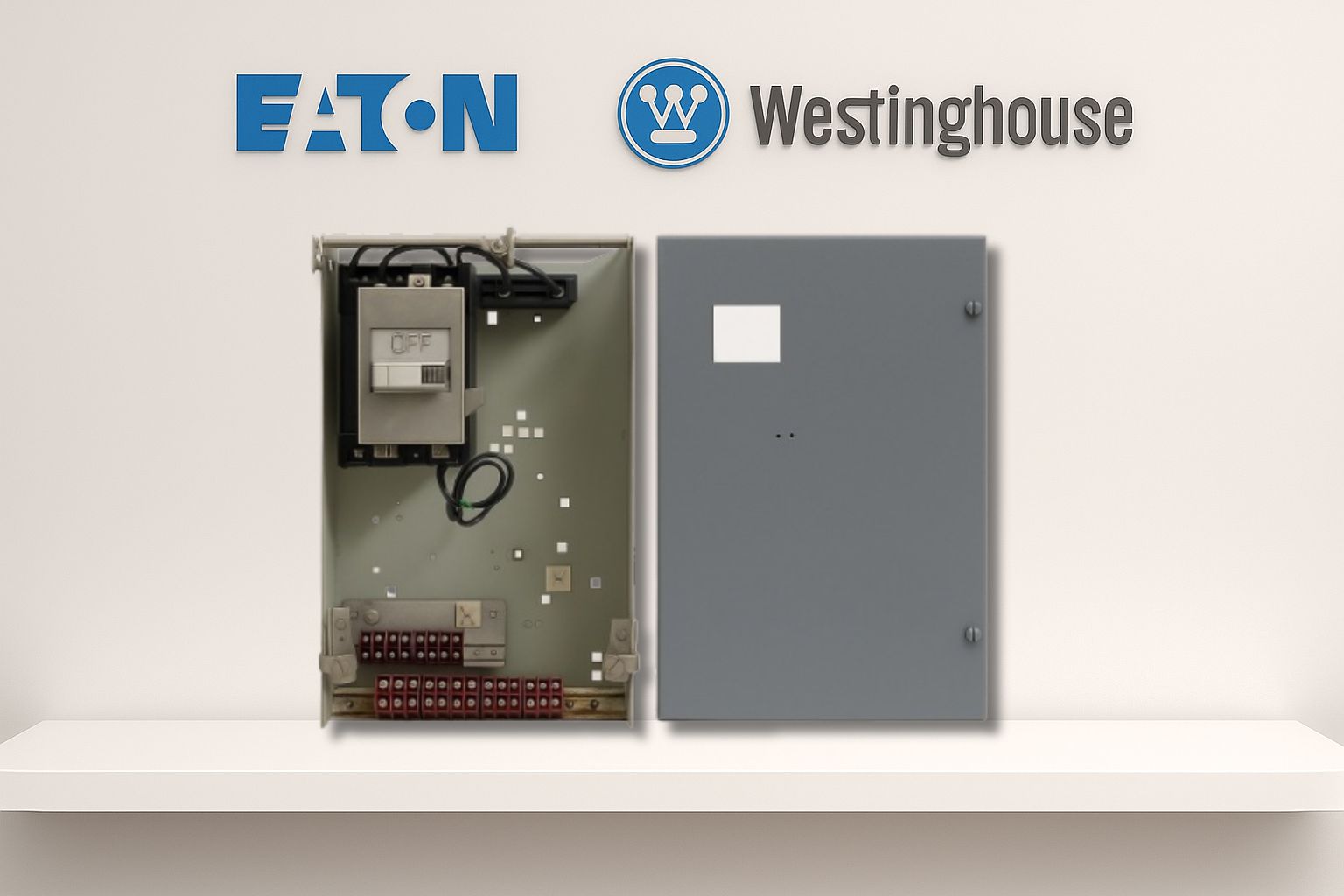

Eaton - Westinghouse - Type W - Breaker MCC Bucket - 225 A, 480 V, 30" Height, 3 P | AmpState

Meet the Eaton Type W Breaker MCC Bucket — a purpose-built solution for industrial motor control centers that demand a reliable, high-capacity 225 A, 480 V, 3-Pole breaker bucket. Designed to slot into Eaton Type W MCC systems, this unit serves as a direct replacement for OEM components and is ideal for OEM replacements and retrofit projects alike.

Key specifications

• Brand: Eaton
• Model/configuration: Type W Breaker MCC Bucket
• Rating: 225 A, 480 V, 3-Pole
• Height: 30 inches
• Application: Industrial motor control centers (MCC) — 3‑phase systems

Direct replacement and retrofit ready

Engineered for plug‑and‑play compatibility, this MCC bucket is a straightforward replacement for OEM Type W components. Whether you’re upgrading aging gear or refreshing a retrofit, you’ll benefit from a fit that aligns with existing bus connections, mounting patterns, and enclosure dimensions — minimizing downtime and ensuring dependable operation in demanding environments.

Why this matters for your operation

• Reliable protection for heavy loads: 225 A, 480 V capacity handles typical industrial motor circuits, helping safeguard motors and downstream equipment.
• Three‑pole configuration: Optimized for balanced, three‑phase motor control, improving switching performance and system stability.
• Standardized fit: 30" height and Type W form factor align with common MCC footprints, reducing customization and installation effort.
• Global delivery: AmpState supports worldwide shipping, ensuring access to critical MCC components wherever your facilities are located.

Ideal use cases

Perfect for manufacturing lines, processing plants, water treatment facilities, and material handling setups where 3‑phase motors require robust protection and efficient switching. This bucket is well-suited for both new builds that follow Eaton Type W conventions and retrofit projects that aim to extend the life of existing MCC infrastructure.

Installation and maintenance tips

• Verify enclosure compatibility: confirm that the 30" height and Type W mounting align with your MCC housing and bus connections.
• Schedule installation with qualified electrical personnel to ensure proper alignment, secure fastening, and correct wiring continuity.
• Keep the area clean and dry, and perform routine visual inspections for signs of wear, loose connections, or corrosion.
• Update documentation and labeling after replacement to reflect the new component and ratings for future maintenance.

What you gain with AmpState

AmpState specializes in high‑quality MCC components and reliable global delivery. Choosing this Eaton Type W Breaker MCC Bucket means quick access to a dependable replacement that aligns with OEM specifications, reduces downtime, and supports long‑term reliability in demanding industrial settings.
