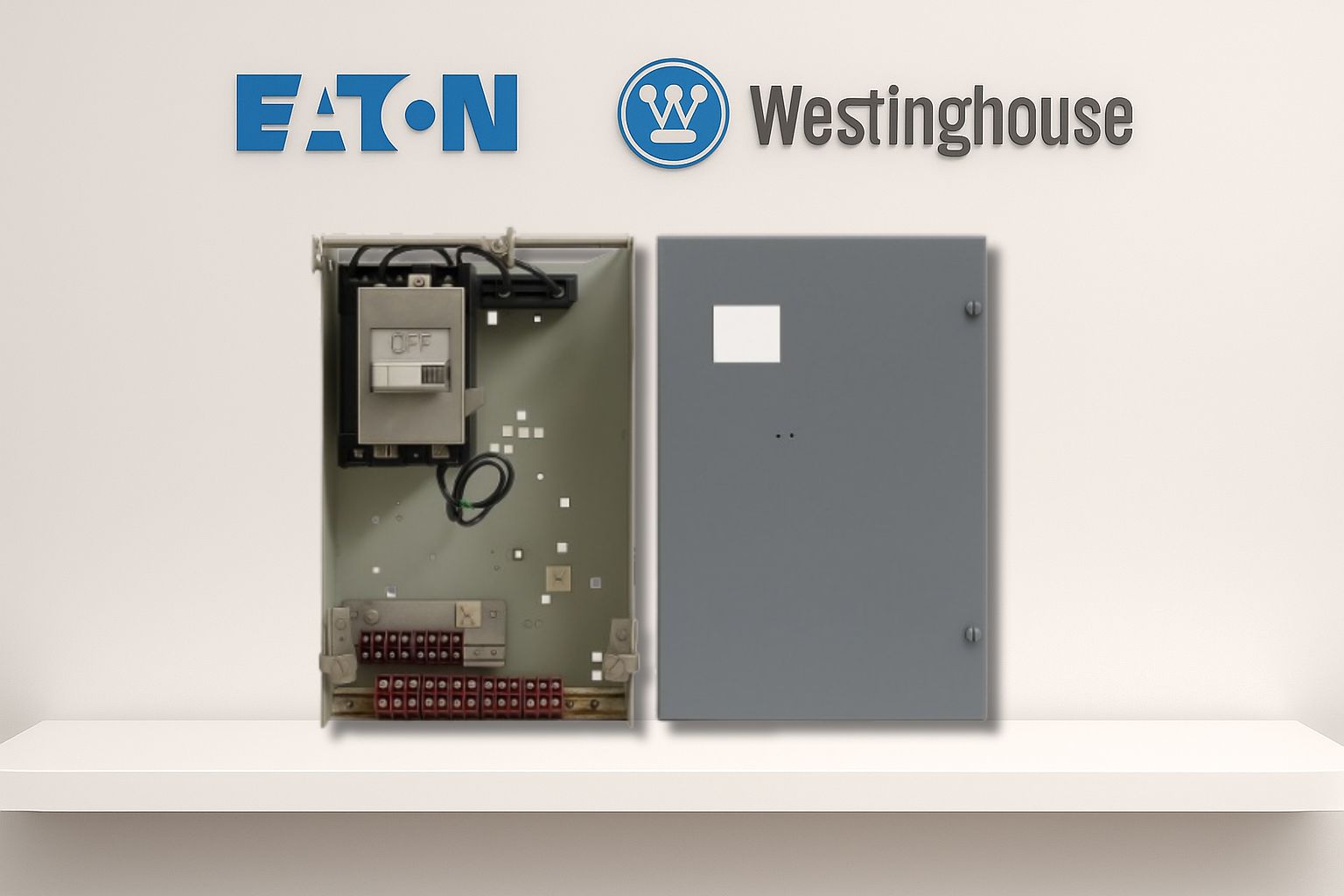

Eaton - Westinghouse - Type W - Breaker MCC Bucket - 20 A, 480 V, 18" Height, 3 P | AmpState

Engineered for robust industrial motor control, this Eaton Type W Breaker MCC Bucket delivers a precise 20 A, 480 V, 3-Pole configuration that slides smoothly into Eaton Type W MCC systems. As a direct replacement for OEM Type W buckets, it’s equally suitable for retrofit projects and ongoing maintenance, keeping your motor control center reliable and up to date.

Key advantages at a glance

• Exact fit for Type W MCC systems: Designed to integrate with Eaton Type W (Westinghouse lineage) MCC frameworks, ensuring seamless compatibility and minimal downtime.
• Clear electrical specification: 20 A, 480 V, 3-Pole configuration to support standard industrial motor loads with reliable performance.
• Standardized form factor: 18" height to align with existing MCC buckets and mounting rails, simplifying installation and replacements.
• OEM-compatible replacement: A direct replacement for both OEM units and retrofit applications, preserving the original control topology and wiring plan.
• Global delivery: AmpState supplies high-quality MCC components with worldwide shipping to keep projects on schedule.

Why it matters for your operation

In industrial environments, downtime equals lost productivity. This MCC bucket is purpose-built to fit the exact Type W footprint, reducing installation guesswork and expediting replacements during maintenance windows. The 3-Pole design supports balanced power distribution across three phases, promoting stable motor operation and protecting sensitive equipment downstream from voltage anomalies.

Use cases and scenarios

• Equipment upgrades in facilities still using Westinghouse-era Type W MCC configurations.
• OEM replacement during scheduled maintenance to preserve the original control topology.
• Retrofits where a compatible 20 A, 480 V, 3-Pole bucket is required to match existing circuit protection schemes.
• Spare-part strategy for manufacturing lines and pumps where quick, reliable MCC bucket swaps minimize downtime.

Installation and compatibility tips

Before installing, verify that your system is a Type W MCC, the load requires 20 A per your motor control plan, and that a 3-Pole configuration is appropriate for your circuit topology. The 18" height ensures proper alignment with mounting rails and enclosure hardware typical of Eaton Type W installations. Handle with standard safety procedures for electrical equipment, and follow your site’s lockout/tagout practices during replacement.

About AmpState: AmpState delivers trusted MCC components to support maintenance and upgrades across industries. With a focus on compatibility and dependable performance, this Eaton Type W Breaker MCC Bucket is a practical choice for facilities seeking a straightforward, OEM-aligned replacement that keeps systems running smoothly.
