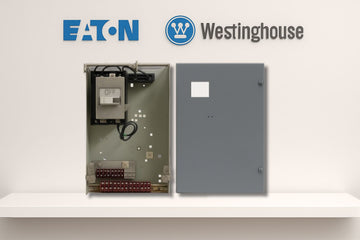

Eaton - Westinghouse - Type W - Breaker MCC Bucket - 125 A, 600 V, 36" Height, 3 P | AmpState

The Eaton Type W Breaker MCC Bucket is built for demanding industrial motor control environments, delivering dependable protection for large motors and heavy loads. Engineered for 125 A, 600 V, and 3-Pole configurations, this 36" tall MCC bucket is designed to slide seamlessly into Eaton Type W MCC systems and serve as a direct replacement for OEM components and retrofit projects.

• Direct OEM compatibility: Specifically sized and configured to fit Eaton Type W motor control center frames, enabling straightforward retrofits and minimizing integration challenges.
• Robust, purpose-built design: The 125 A, 600 V, 3-Pole rating supports high-demand motor starts and continuous loads, making it suitable for conveyors, pumps, fans, crushers, and other industrial drives.
• Consistent performance in compact footprints: A 36" height balances ample control capabilities with space-conscious installation in standard Type W layouts.
• Reliable replacement for OEM parts: When equipment ages or components wear, this MCC bucket provides a dependable substitute that maintains system parity and safety margins.
• Global delivery through AmpState: AmpState ships this Eaton Type W MCC bucket worldwide, helping facilities stay on schedule with minimal downtime.

Specifications at a glance

• Brand: Eaton
• Model: Type W
• Configuration: Breaker MCC Bucket
• Rating: 125 A, 600 V, 3-Pole
• Height: 36 inches

Ideal uses and practical scenarios

Perfect for facilities with established Eaton Type W motor control centers that require reliable, field-replaceable MCC buckets. Use cases include:

• Industrial manufacturing lines with high-startup torque motors (compressors, extruders, mixers)
• HVAC systems in large commercial or industrial buildings needing robust motor protection
• Pumping stations and water treatment equipment where downtime must be minimized
• Material handling and packaging lines featuring multiple 3-Pole motor drives

Why this matters: selecting the correct MCC bucket ensures compatibility with your control circuitry, aligned electrical ratings, and safer, more predictable operation under peak demand. The 3-Pole configuration provides balanced protection across phases, while the 125 A, 600 V rating matches the needs of medium-to-large motors commonly found in industrial plants.

How it compares and practical installation tips

Compared to generic substitutes, this Eaton Type W MCC bucket is designed to slot into existing Type W frames without extensive modification, reducing install time and risk. For a smooth retrofit or replacement:

• Verify your Type W frame and bus arrangement to confirm full compatibility with the 36" MCC bucket height.
• Plan for power isolation and follow lockout-tagout procedures before installation.
• Confirm motor and protection device ratings align with the 125 A, 600 V, 3-Pole specification to maintain protective coordination.
• Coordinate with AmpState for worldwide delivery timelines to minimize downtime and ensure parts availability.

AmpState’s Eaton Type W Breaker MCC Bucket is a practical, field-ready solution for keeping industrial motor control centers up and running. With precise compatibility, targeted ratings, and reliable performance, it supports efficient maintenance strategies and long-term operational stability for your critical equipment.
