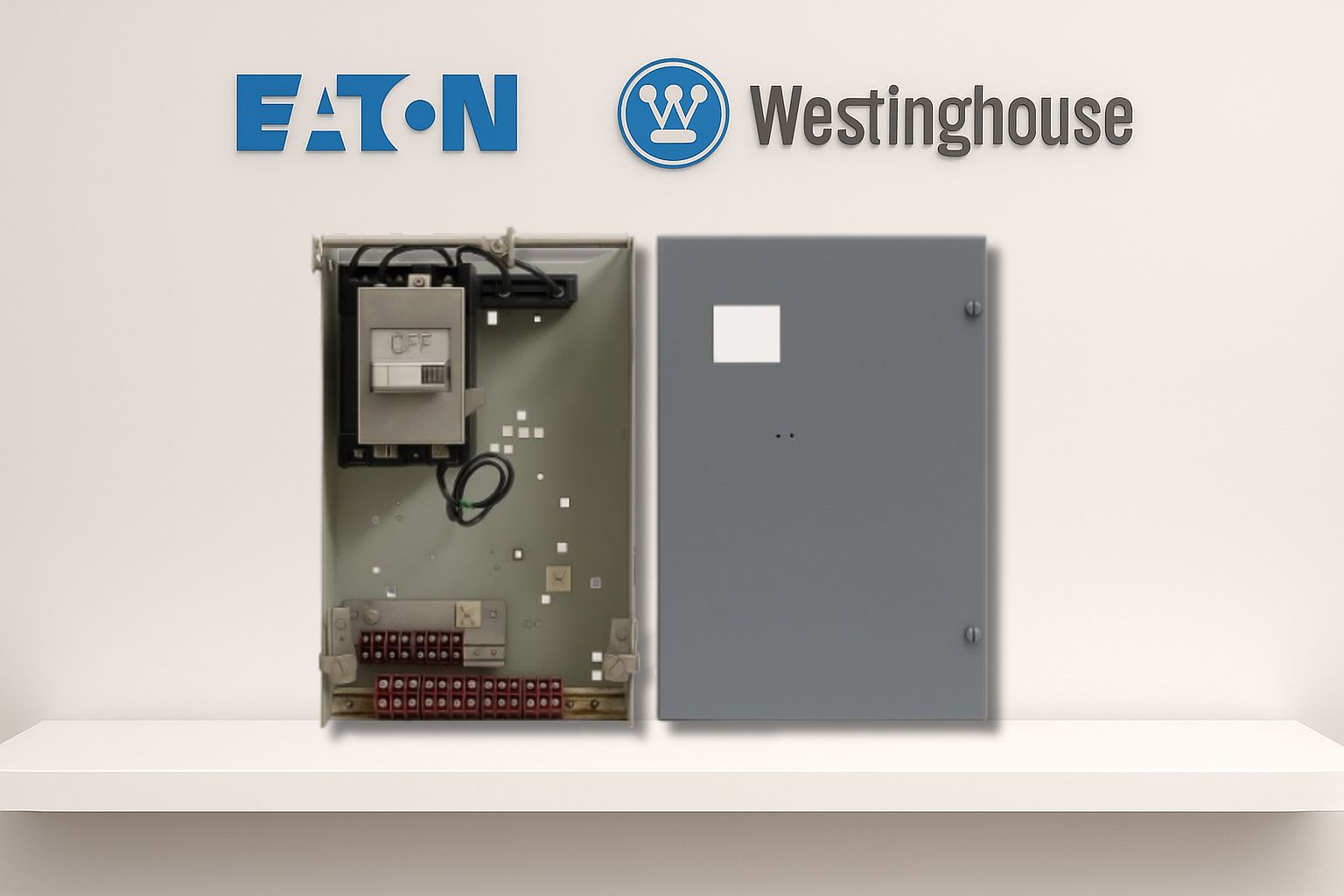

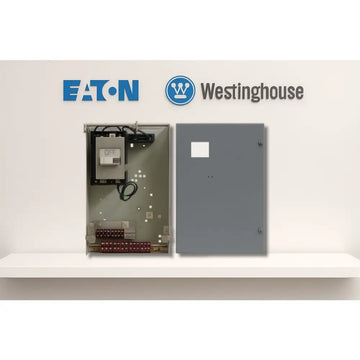

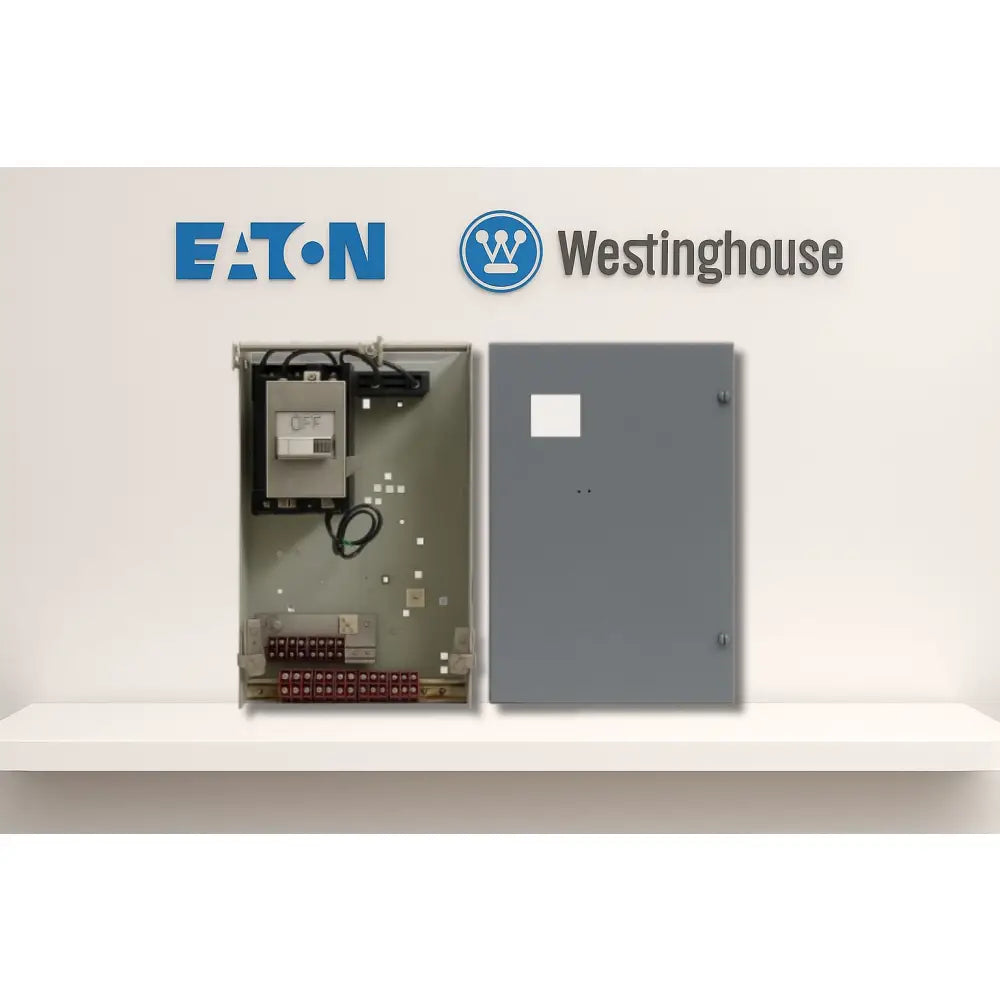

Eaton - Westinghouse - Type W - Breaker MCC Bucket - 100 A, 480 V, 30" Height, 3 P | AmpState

The Eaton Type W Breaker MCC Bucket, now available as a precise 100 A, 480 V, 3-Pole solution, is engineered for demanding industrial motor control environments. This unit integrates seamlessly into Eaton Type W MCC systems, serving as a direct replacement for OEM components and proven retrofit option for upgrades and downtime maintenance. At 30 inches in height, it is tailored to fit within standard Type W enclosures, delivering robust protection and reliable control for demanding applications.

Key specifications

• Brand: Eaton
• Model: Type W
• Configuration: Breaker MCC Bucket
• Rating: 100 A, 480 V, 3-Pole
• Height: 30 inches
• Availability: AmpState provides global delivery of MCC components

Why this fits your motor control needs

In industrial settings, motor control centers require components that offer reliable protection, easy maintenance, and guaranteed compatibility. This Eaton Type W MCC Bucket is designed to drop into Type W MCC systems with the same electrical interfaces and mounting footprint you rely on, simplifying installation and reducing downtime during replacements or retrofits. The 3-pole configuration delivers balanced protection for three-phase motors, making it an ideal upgrade when your infrastructure demands dependable performance at 480 V.

Ideal use cases

• Replacing worn or obsolete MCC buckets in active production lines to restore full motor protection without a full panel redesign.
• Retrofit projects where upgrading to a 100 A, 480 V, 3-Pole bucket is needed to support higher loads or improved protection schemes.
• New installations within existing Eaton Type W MCC architectures, ensuring consistent operation and maintenance practices.

Practical benefits

• Direct replacement compatibility: Engineered to fit Eaton Type W MCC systems, minimizing rewiring and mounting adjustments.
• Reliable protection for critical equipment: 100 A, 480 V capacity safeguards motors and drives from overloads in demanding environments.
• Streamlined procurement: AmpState offers global delivery, helping you source genuine MCC components quickly for maintenance programs or urgent repairs.
• Operational efficiency: By maintaining consistent interface and footprint, technicians can execute faster swaps, reducing downtime and maintaining plant throughput.

Delivery, support, and best practices

Choose AmpState for access to high-quality MCC components with global delivery, backed by technical support to ensure correct selection and installation. When planning a replacement, verify enclosure clearance and mounting alignment for the 30-inch MCC bucket height, and inspect related wiring and protective devices to ensure seamless integration with your existing 480 V three-phase circuits.
