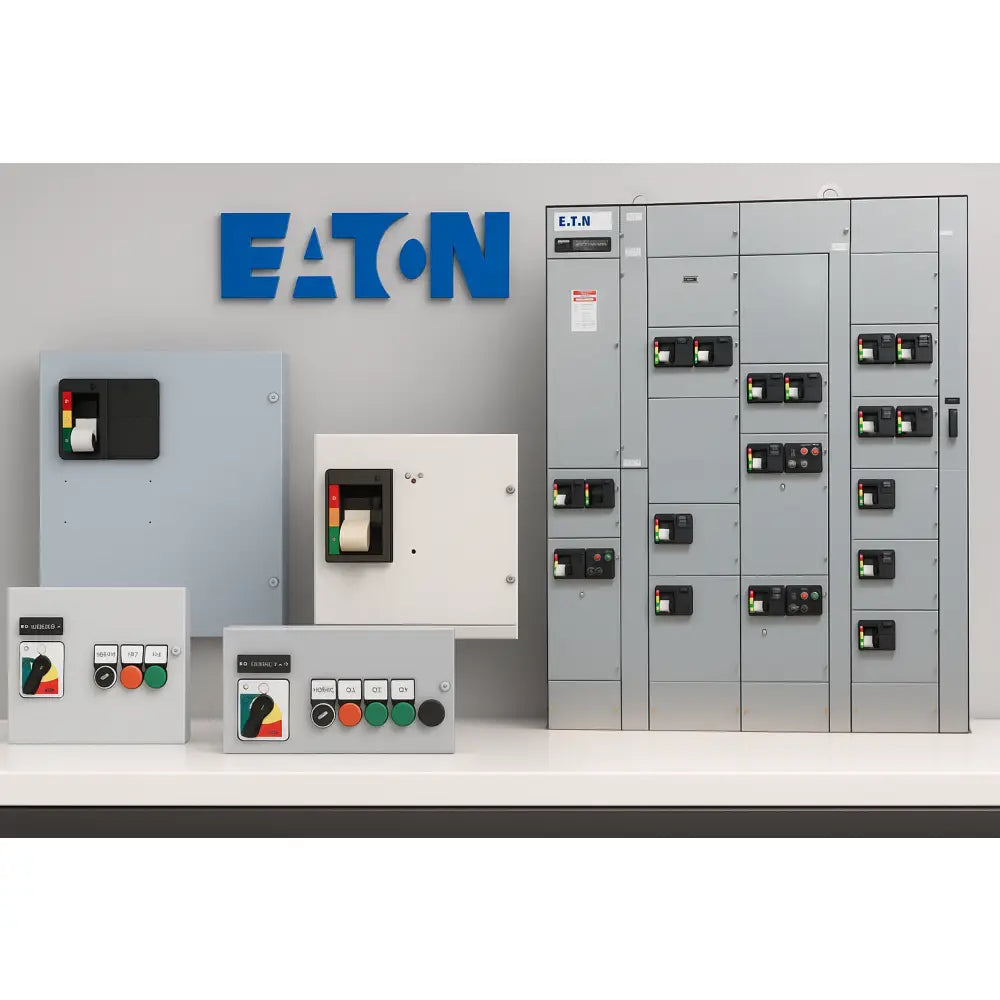

Eaton Five Star Series 2100 - Breaker MCC Bucket - 30 A, 480 V, 9" Height, 3 P | AmpState

Engineered for demanding industrial power distribution, the Eaton Five Star Series 2100 Breaker MCC Bucket delivers dependable motor control in a compact, retrofit-friendly package. Rated at 30 A and 480 V, this bucket is purpose-built to integrate seamlessly with Eaton Five Star Series 2100 motor control centers, supporting scalable configurations for modern facilities.

Key specifications

• Amp rating: 30 A
• Voltage: 480 V (Three-phase, 60 Hz)
• Height: 9" vertical frame
• Poles: 3 P
• Type: Breaker MCC Bucket
• Series: Eaton Five Star Series 2100

Designed for retrofit, OEM replacement, and custom MCC configurations

This breaker MCC bucket is built to fit retrofit projects, OEM replacements, and bespoke motor control center configurations. Its precise 9" vertical frame and 3-pole design are tailored for tight, clean panel layouts while delivering reliable 480 V three-phase protection for a wide range of motor-driven equipment.

Ideal use cases

• Retrofit existing MCCs to modern, standardized 480 V, 30 A motor control circuits
• OEM replacement parts that minimize downtime and maintain consistent performance
• Custom MCC configurations requiring a compact frame without compromising protection or reliability
• Industries with conveyors, pumps, fans, pumps, and other 3-phase motor loads that demand stable distribution

Why this bucket stands out

• Exact compatibility with Eaton Five Star Series 2100 motor control centers, ensuring straightforward installation and consistent electrical fit
• Compact 9" frame that frees cabinet space while supporting robust three-phase protection
• 3-pole configuration optimized for 480 V, three-phase systems common in industrial settings
• Durable construction designed to withstand the rigors of industrial environments and ongoing motor control operations

Practical installation tips

• Confirm the MCC enclosure is designed for Eaton Five Star Series 2100 buckets to ensure a seamless match
• Allow adequate clearance around the bucket for cooling, access, and maintenance checks
• Cross-check your panel diagrams to verify the 3-pole, 480 V configuration aligns with the intended motor loads
