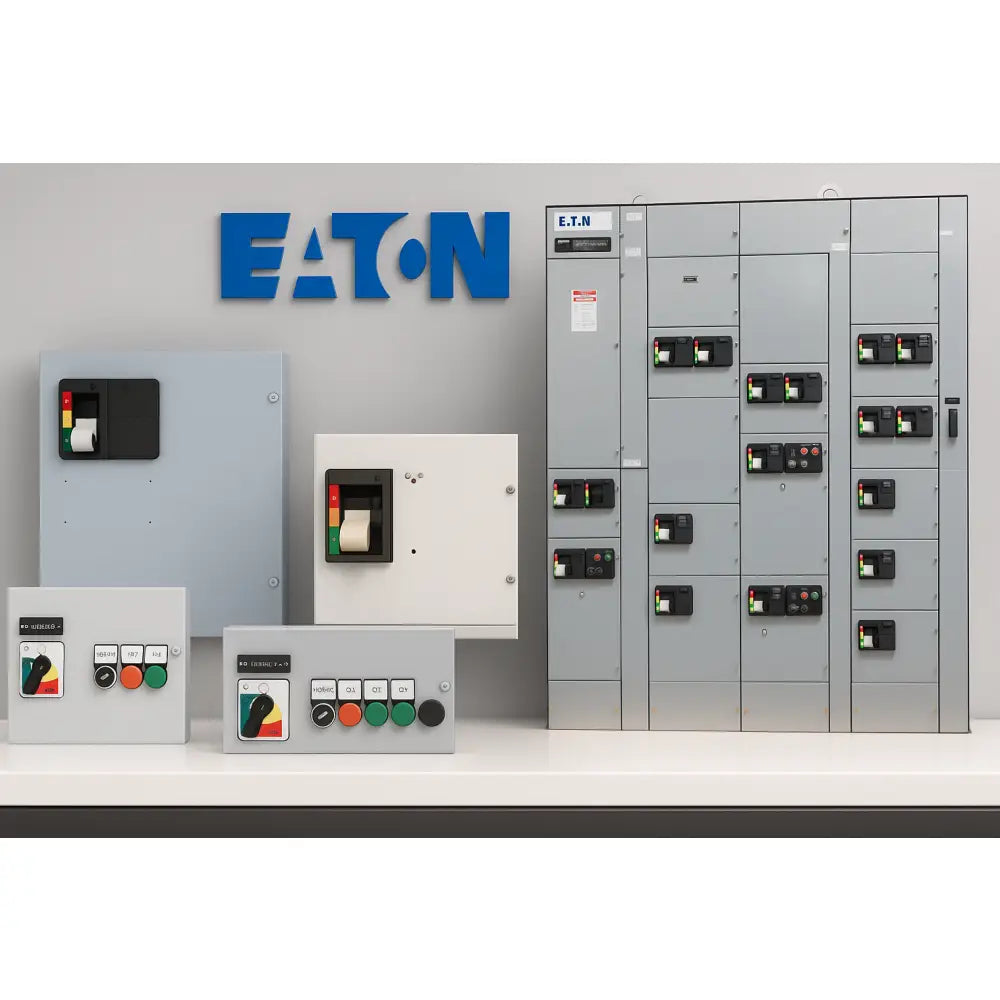

Eaton Five Star Series 2100 - Breaker MCC Bucket - 25 A, 480 V, 9" Height, 3 P | AmpState

Eaton Five Star Series 2100 Breaker MCC Bucket is a rugged, ready-to-install component designed for industrial motor control centers. Rated for 25 A at 480 V (three-phase, 60 Hz), this breaker bucket handles demanding power distribution and motor control tasks with dependable performance. Its compact 9" vertical frame footprint delivers a streamlined fit within Eaton’s Five Star Series 2100 architecture, helping you maximize panel space without sacrificing reliability.

Designed for retrofit, OEM replacement, and custom MCC configurations

Whether you’re upgrading an aging MCC, stocking OEM spare parts, or building a custom motor control center, this Breaker MCC Bucket provides a straightforward drop-in retrofit path. By aligning with the Eaton Five Star Series 2100 framework, it helps maintain consistency across your fleet, reduces installation time, and minimizes operational downtime during upgrades or repairs.

Key features and benefits

• Amperage and voltage: 25 A at 480 V for reliable control of medium-load motors and circuits
• Three-pole design (3P) for balanced, three-phase distribution
• Compact height: 9" vertical frame minimizes panel depth while preserving accessibility
• Targeted compatibility: specifically engineered for Eaton Five Star Series 2100 MCCs, enabling seamless retrofit and OEM replacement
• Industrial-grade construction: built to withstand demanding environments in commercial and industrial power distribution

Ideal use cases

• Upgrading or replacing components in existing Eaton Five Star Series 2100 motor control centers
• OEM replacement parts to keep legacy MCCs up to date without a full panel redesign
• Custom MCC configurations where a reliable 3P, 480 V breaker bucket is required
• Spare parts strategy for facilities with standardized Five Star 2100 infrastructure

Specifications at a glance

• Brand: Eaton
• Model: Five Star Series 2100
• Type: Breaker MCC Bucket
• Amp Rating: 25 A
• Voltage: 480 V (Three-phase, 60 Hz)
• Height: 9"
• Application: Industrial motor control, retrofit, OEM replacement, and custom MCC configurations
• Poles: 3P

Practical considerations and tips

To maximize performance, confirm compatibility with your existing MCC frame and bus arrangements before installation. If you’re retrofitting an older bucket, verify mounting hardware alignment and labeling to ensure smooth electrical connections and safe operation. This bucket is designed to integrate with Eaton’s Five Star 2100 ecosystem, helping you maintain consistency across panels and simplify maintenance over time.
