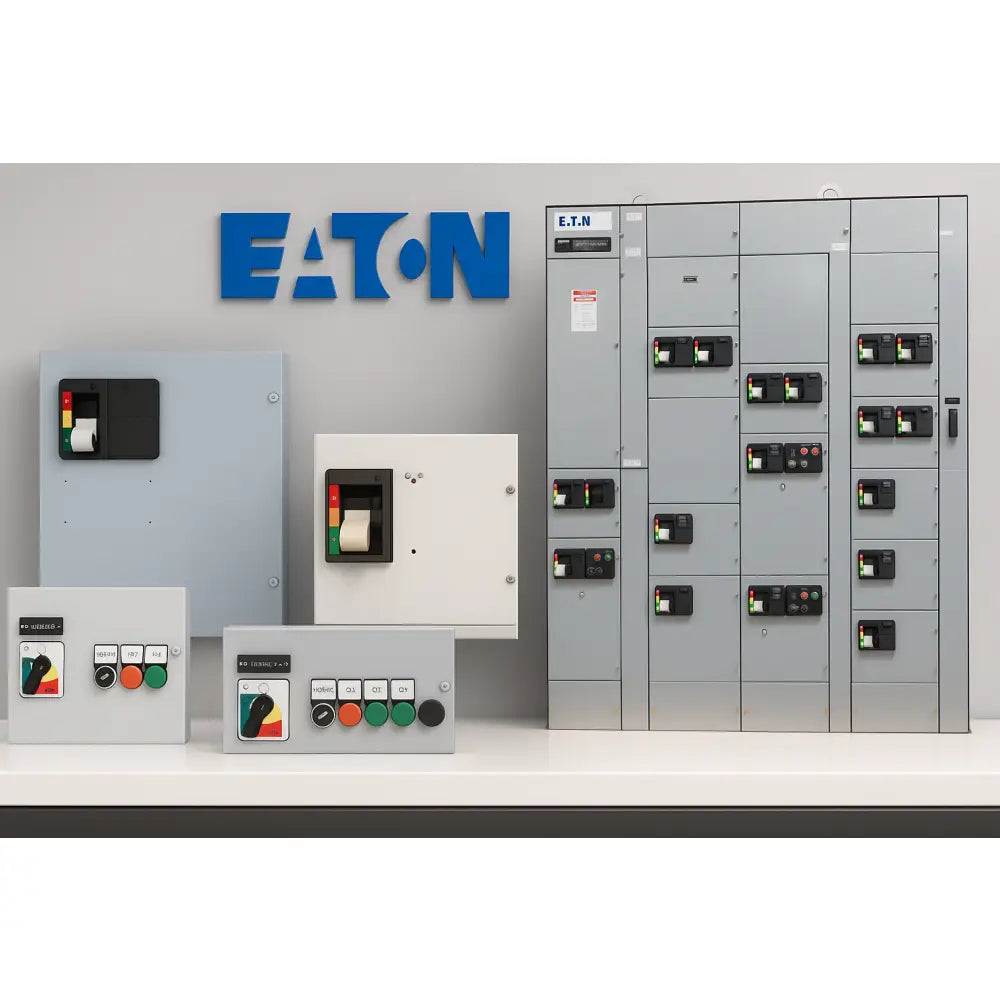

Eaton Five Star Series 2100 - Breaker MCC Bucket - 25 A, 208 V, 15" Height, 3 P | AmpState

Engineered for demanding industrial environments, the Eaton Five Star Series 2100 Breaker MCC Bucket delivers reliable protection and streamlined integration for motor control centers. With a 25 A rating at 208 V and a 3-pole configuration, this bucket is purpose-built to optimize power distribution and motor control performance within Five Star Series 2100 MCCs.

• Amp rating: 25 A at 208 V (three-phase, 60 Hz)
• Voltage: 208 V, Three-phase
• Height (frame): 15" vertical frame to fit standard Five Star 2100 footprints
• Poles: 3-pole breaker bucket
• Application: Industrial motor control, power distribution, retrofit, and OEM replacement

What makes this MCC bucket unique

This breaker MCC bucket is specifically designed for seamless use with Eaton’s Five Star Series 2100 motor control centers. Its 15" vertical frame preserves existing cabinet geometry, enabling straightforward retrofits and OEM replacements without extensive rework. The 25 A, 208 V (3-phase) specification aligns with common industrial drives and motor starter applications, ensuring reliable protection for moderate-load lines while maintaining system efficiency.

Ideal use cases

• Retrofitting aging MCCs with a precise, OEM-compatible breaker bucket to restore performance and ensure key components remain in sync with the Series 2100 architecture
• OEM replacement for components in serviceable Five Star Series 2100 installations
• Custom MCC configurations where a compact 15" frame and 3-pole bucket meet specific space and load requirements

Why operators choose this solution

Direct compatibility with Eaton Five Star Series 2100 MCCs means faster serviceability and reduced downtime. The 25 A rating at 208 V is well-suited for applications like light-to-medium motor control, conveyors, pumps, and packaged line components where predictable protection and reliable switching are essential. Its modular bucket design supports scalable configurations, so facilities can evolve their control architecture without overhauling the entire MCC.

Practical considerations and optimization tips

• Ensure your system is a Three-phase 208 V setup to match the bucket’s rating and performance characteristics
• Verify cabinet footprints and bus-bar alignment to confirm a clean, drop-in replacement within the Five Star Series 2100 ecosystem
• Plan for future expansion by leveraging the 15" frame to maintain consistent spacing and accessibility in crowded control rooms
• Combine with appropriate protective devices and control wiring designed for 25 A, 208 V applications to maximize reliability and safety
