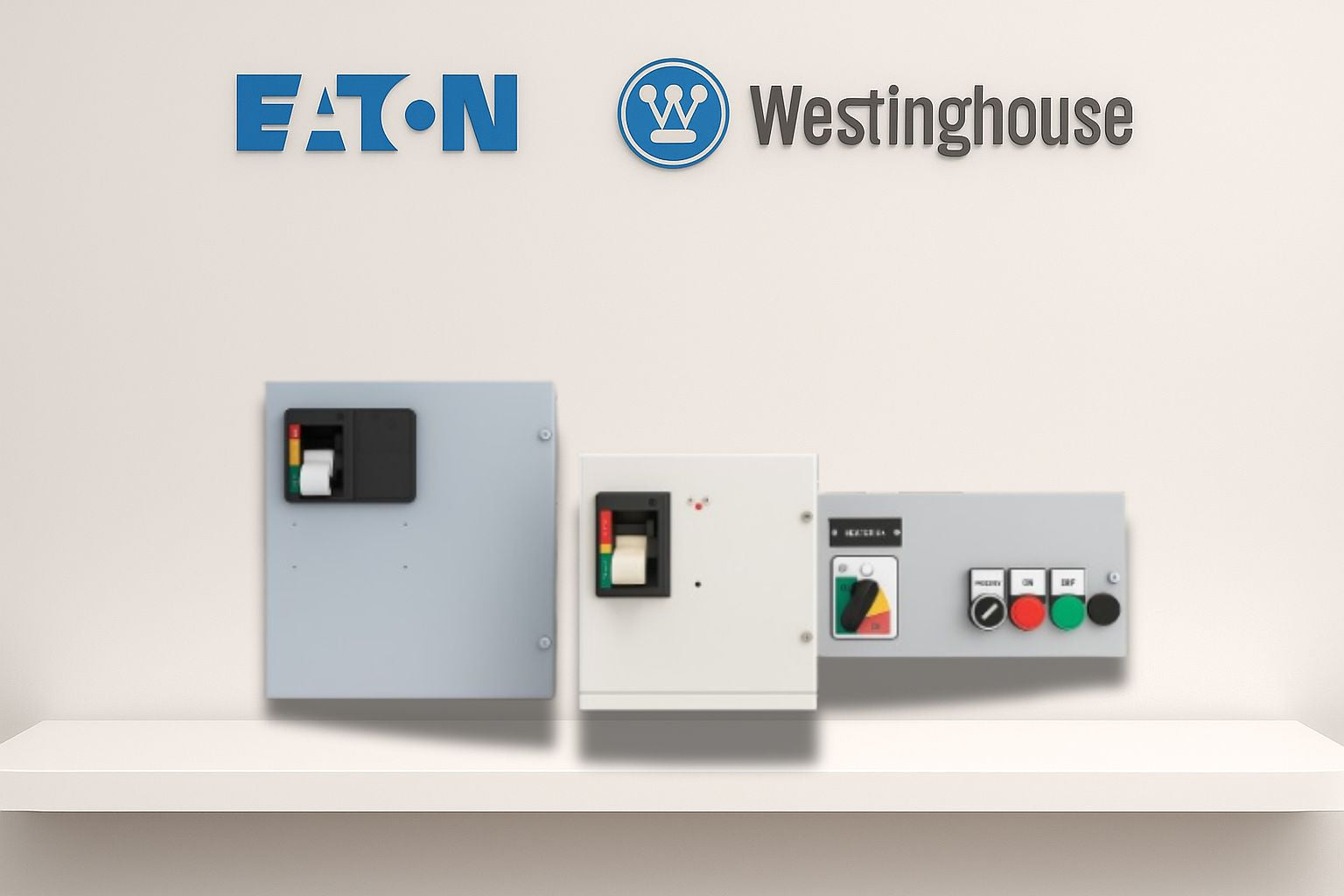

Eaton - Cutler Hammer - Westinghouse - 5 Star Series - Breaker MCC Bucket - 600 A, 240 V, 30" Height, 3 P | AmpState

Overview

The Eaton Cutler Hammer Westinghouse 5 Star Series Breaker MCC Bucket is purpose-built for industrial motor control centers that demand reliable, high-capacity performance. Designed as a direct replacement or retrofit unit, this 600 A, 240 V, 3-Pole MCC bucket slides into Eaton Cutler Hammer Westinghouse 5 Star Series lineups with precision, helping you minimize downtime and keep critical equipment running smoothly.

Key Features & Benefits

• High-capacity performance: Rated at 600 A and 240 V, this bucket supports demanding motor loads and heavy-duty applications.
• 3-Pole configuration: Ready for three-phase motor control, ensuring balanced protection and streamlined control for large motors.
• Exact fit for 5 Star Series MCCs: Engineered to integrate seamlessly within the Eaton Cutler Hammer Westinghouse 5 Star Series motor control center family.
• Direct replacement or retrofit: Simplifies upgrades or spare parts planning by matching the original bucket geometry and mounting.
• 30-inch bucket height: Aligns with standard MCC bays, supporting consistent rack alignment and plug-in compatibility.
• Industrial-grade reliability: Built for continuous operation in challenging environments, with robust construction and durable electrical connections.
• Technical support and delivery: Supplied by AmpState, offering global delivery and expert assistance for retrofits, parts, and maintenance.

Ideal Use Cases

This MCC bucket is ideal for facilities with large motor loads and centralized control needs—manufacturing plants, process facilities, and utilities that rely on dependable motor control centers. Use it for:

• Upgrading aging MCCs to a standardized 5 Star Series configuration
• Replacing worn or damaged MCC buckets to restore full control and protection
• Retrofitting existing installations to support modern protection, coordination, and fault-current requirements
• Spare-bucket strategy in plants with frequent maintenance cycles to reduce downtime

Specifications at a Glance

• Brand/ line: Eaton - Cutler Hammer - Westinghouse
• Series: 5 Star Series
• Configuration: Breaker MCC Bucket
• Rating: 600 A, 240 V, 3-Pole
• Bucket Height: 30 inches

Why Choose This MCC Bucket Over Alternatives

Opting for this specific 5 Star Series MCC bucket guarantees mechanical and electrical compatibility with the proven Eaton lineage. The 600 A, 240 V, 3-Pole specification directly supports high-load motors and heavy-duty applications, while the 30" height ensures plug-and-play fit within standard MCC frames. As a retrofit or replacement solution, it minimizes installation risk, reduces downtime, and maintains consistency across your motor control infrastructure. AmpState’s global delivery and technical support further simplify procurement and integration, so you’re not left troubleshooting compatibility alone.

Installation Considerations & Practical Tips

Before installation, confirm that your MCC rack and bus configuration align with a 30" bucket height and 3-Pole 600 A/240 V protection scheme. This bucket is designed for straightforward replacement within existing 5 Star Series enclosures, helping maintain electrical coordination and protection settings. For retrofit projects, plan with compatible interlocks, wiring harnesses, and bus bar connections to ensure a smooth, minimal-downtime swap. AmpState provides technical support to assist with part compatibility and commissioning checklists.

What You Get

A ready-to-integrate MCC bucket that preserves the proven Eaton Cutler Hammer Westinghouse 5 Star Series reliability, tailored for industrial motor control needs, with the backing of AmpState’s global service network.
