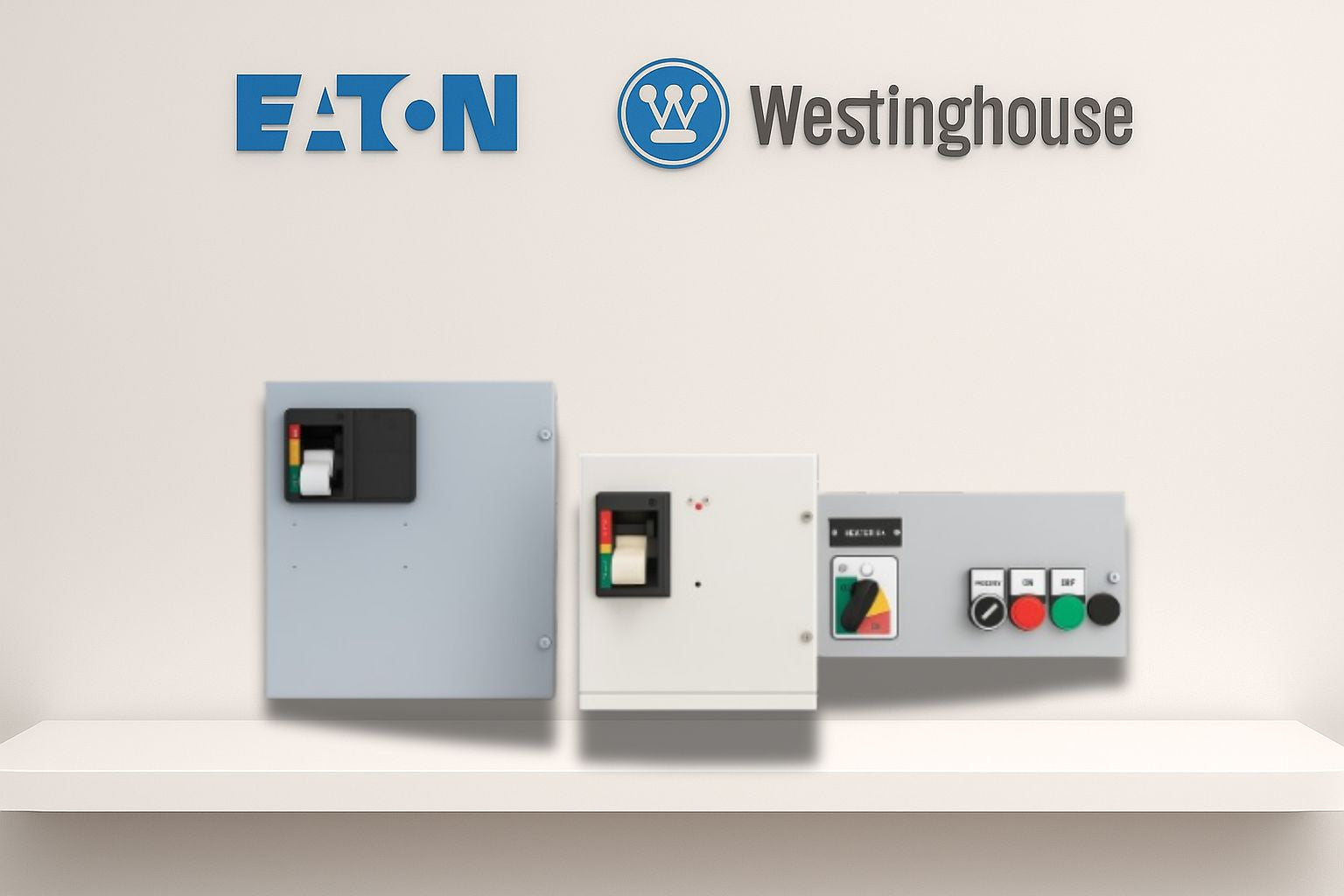

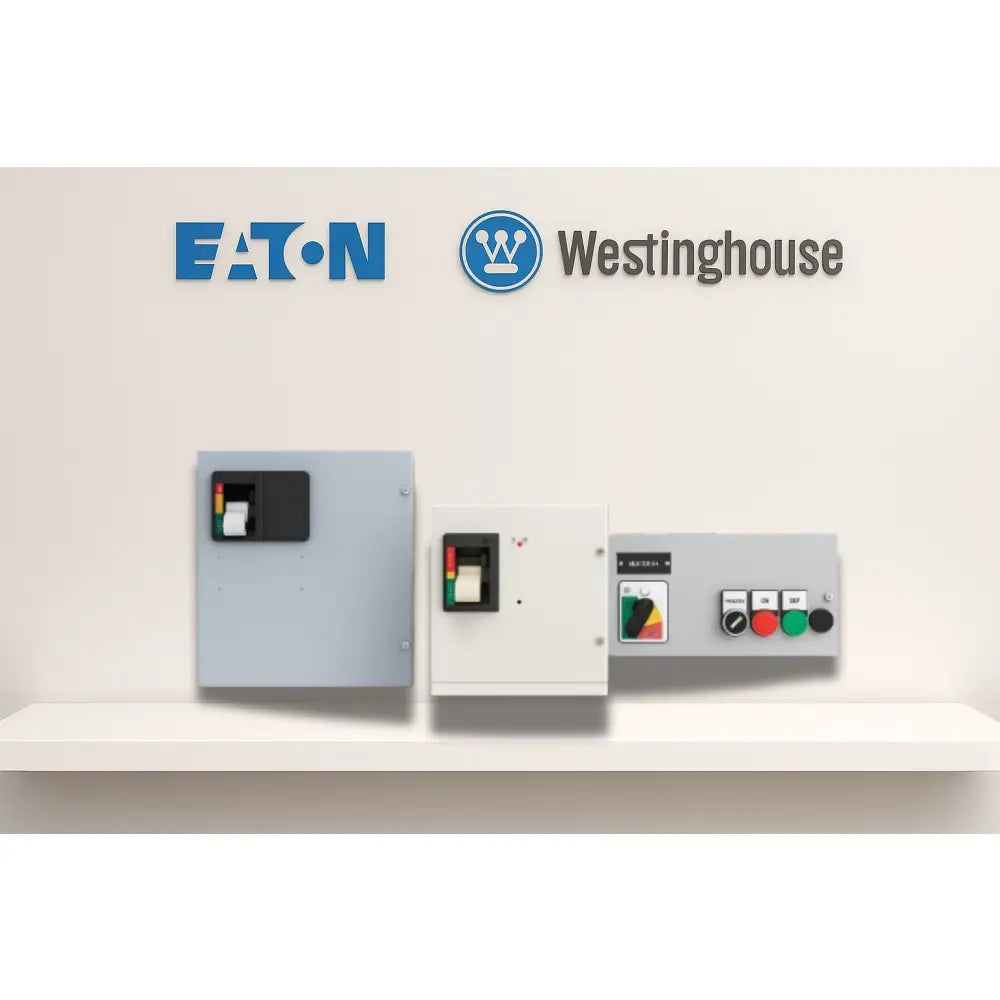

Eaton - Cutler Hammer - Westinghouse - 5 Star Series - Breaker MCC Bucket - 250 A, 240 V, 48" Height, 3 P | AmpState

Designed for rugged industrial motor control environments, the Eaton Cutler Hammer Westinghouse 5 Star Series Breaker MCC Bucket delivers a trusted 250 A, 240 V, 3-Pole solution that fits neatly into 48" tall MCC bays. Engineered as a direct replacement or retrofit, this bucket keeps your motor control center operating with consistent protection, reliability, and compatibility across legacy 5 Star Series installations.

Why this 5 Star Series Breaker MCC Bucket shines

When your MCC needs dependable, long-lasting performance, this 5 Star Series MCC bucket is built to endure demanding duty. It’s purpose-made for Eaton Cutler Hammer Westinghouse systems, ensuring seamless electrical coordination with your existing protection schemes, control wiring, and mechanical interfaces. The 48" bucket height aligns with standard 5 Star Series footprints, simplifying installation and minimizing retrofit downtime.

Key specifications

• Brand: Eaton - Cutler Hammer - Westinghouse
• Series: 5 Star Series
• Configuration: Breaker MCC Bucket
• Rating: 250 A, 240 V, 3-Pole
• Bucket Height: 48 inches

Ideal for

• Industrial facilities upgrading aging MCCs that still rely on 5 Star Series configurations
• Retrofit projects where a reliable, compatible 3-Pole 250 A bucket is required
• Manufacturing plants with continuous motor loads that demand robust protection and straightforward serviceability

What problem this solves

Old MCC buckets can drift out of spec or require incompatible replacements. This Breaker MCC bucket provides a precise 250 A, 240 V, 3-Pole fit designed to slot into existing 5 Star Series centers, reducing downtime during swap-outs and preserving electrical coordination with existing motor starters and overload protection. It’s a practical, dependable path to extend the life of your infrastructure without a full MCC overhaul.

Practical use cases

• Retrofit of legacy 5 Star Series MCCs in overhaul projects, plant expansions, or modernization efforts
• Replacement for failed or obsolescent buckets in high-demand motor control centers
• New installations within facilities that standardize on Eaton Cutler Hammer Westinghouse 5 Star components

Tips for installation and compatibility

• Confirm mounting compatibility with existing 5 Star Series MCC frames and bus structure before replacement
• Verify that the bucket height, 48 inches, matches your enclosure to ensure proper alignment and access
• Coordinate with protective relays and control wiring to maintain existing interlocks and sequencing
• Rely on AmpState for trusted delivery and technical support to facilitate a smooth retrofit or direct replacement

Whether you’re performing a strategic retrofit or replacing a worn MCC bucket, this Eaton Cutler Hammer Westinghouse 5 Star Series Breaker MCC Bucket delivers the right mix of compatibility, capacity, and durability. It’s engineered to keep heavy motor loads protected and your operations running with minimal disruption.
