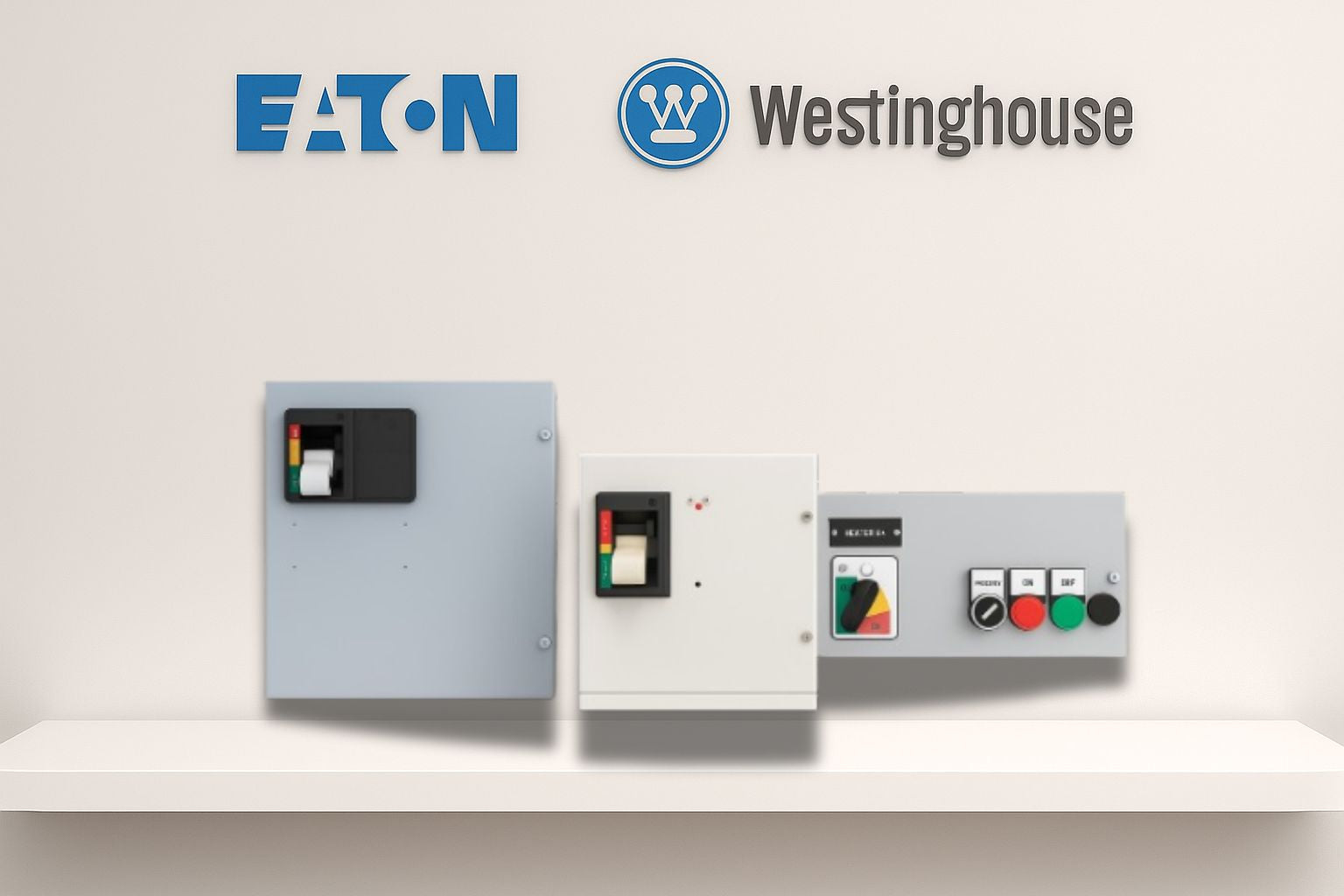

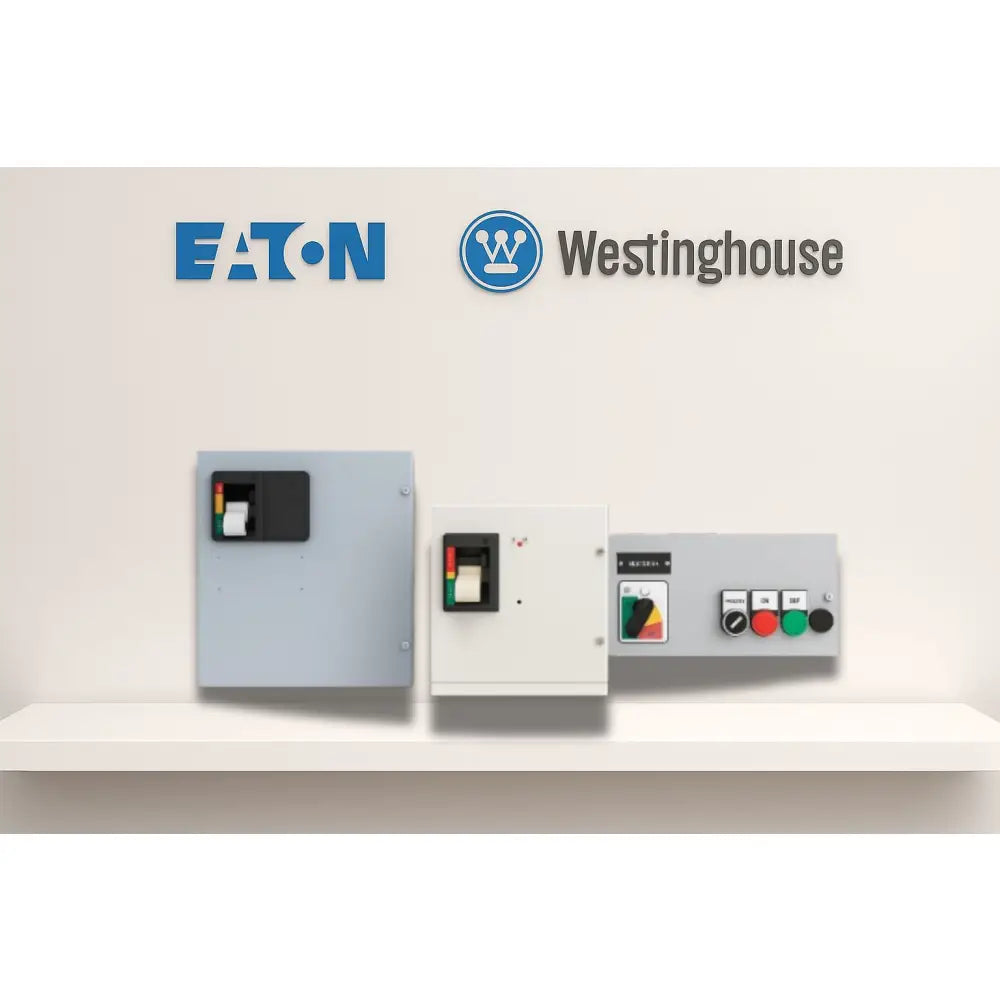

Eaton - Cutler Hammer - Westinghouse - 5 Star Series - Breaker MCC Bucket - 25 A, 600 V, 9" Height, 3 P | AmpState

The Eaton - Cutler Hammer - Westinghouse 5 Star Series Breaker MCC Bucket is engineered for industrial motor control centers that demand proven performance with a 25 A, 600 V, 3-Pole configuration. Sized at a 9" bucket height, this unit is designed for seamless direct replacement or retrofit within Eaton/Cutler Hammer/Westinghouse 5 Star Series MCC lineups, delivering a reliable upgrade path for aging or expanding installations.

Key features that matter on the floor

• 5 Star Series compatibility: Precisely matches the footprint and mounting interface of Eaton-Cutler Hammer-Westinghouse 5 Star Series MCC buckets, simplifying upgrades without extensive rewiring or reconfiguration.
• 3-Pole breaker bucket: Built to support balanced three-phase motor loads common in industrial applications, improving control and protection for motors and drives.
• 25 A, 600 V rating: Adequate protection for medium-sized motors and associated equipment while handling standard industrial electrical environments.
• 9" bucket height: A compact, standard footprint that integrates neatly into existing MCC assemblies, reducing installation time and space concerns.
• Direct replacement or retrofit: Ideal for maintenance turnarounds, plant upgrades, or capacity expansions without overhauling entire MCC streets.

Ideal use cases

Shop floors, manufacturing lines, and processing plants with legacy or aging MCCs benefit from this MCC bucket as a reliable upgrade path. It facilitates:

• Refreshing control architecture in mid-size motor circuits
• Expanding motor control capability to handle higher loads or new equipment
• Retrofitting older 5 Star Series MCCs to maintain continuity of operation and safety standards

Why this matters for your operation

Choosing this MCC bucket means fewer compatibility headaches and faster commissioning. The 3-Pole design aligns with typical three-phase power systems, while the 600 V rating provides a comfortable safety threshold for industrial environments. The direct replacement capability minimizes downtime during upgrades, allowing you to preserve existing wiring, buswork, and control logic where feasible.

What you get from AmpState

• Global delivery and support: AmpState ships to locations worldwide and provides technical guidance to ensure a smooth installation.
• Retrofit-ready solution: A purpose-built replacement that complements other components in 5 Star Series MCC lineups, reducing the risk of misfit parts.
• Expert assistance: Access to experienced technicians who understand industrial motor control centers and how to optimize uptime.

Practical notes for installation and maintenance

Before installation, verify that the MCC bucket slot, mounting hardware, and electrical ratings align with the 5 Star Series infrastructure in your facility. Ensure the 3-Pole configuration matches your drive or motor arrangement, and inspect the unit for any damage during transit. Regular maintenance checks should include confirming tightness of connections, inspecting for corrosion, and validating that protective devices operate within their intended ranges.
