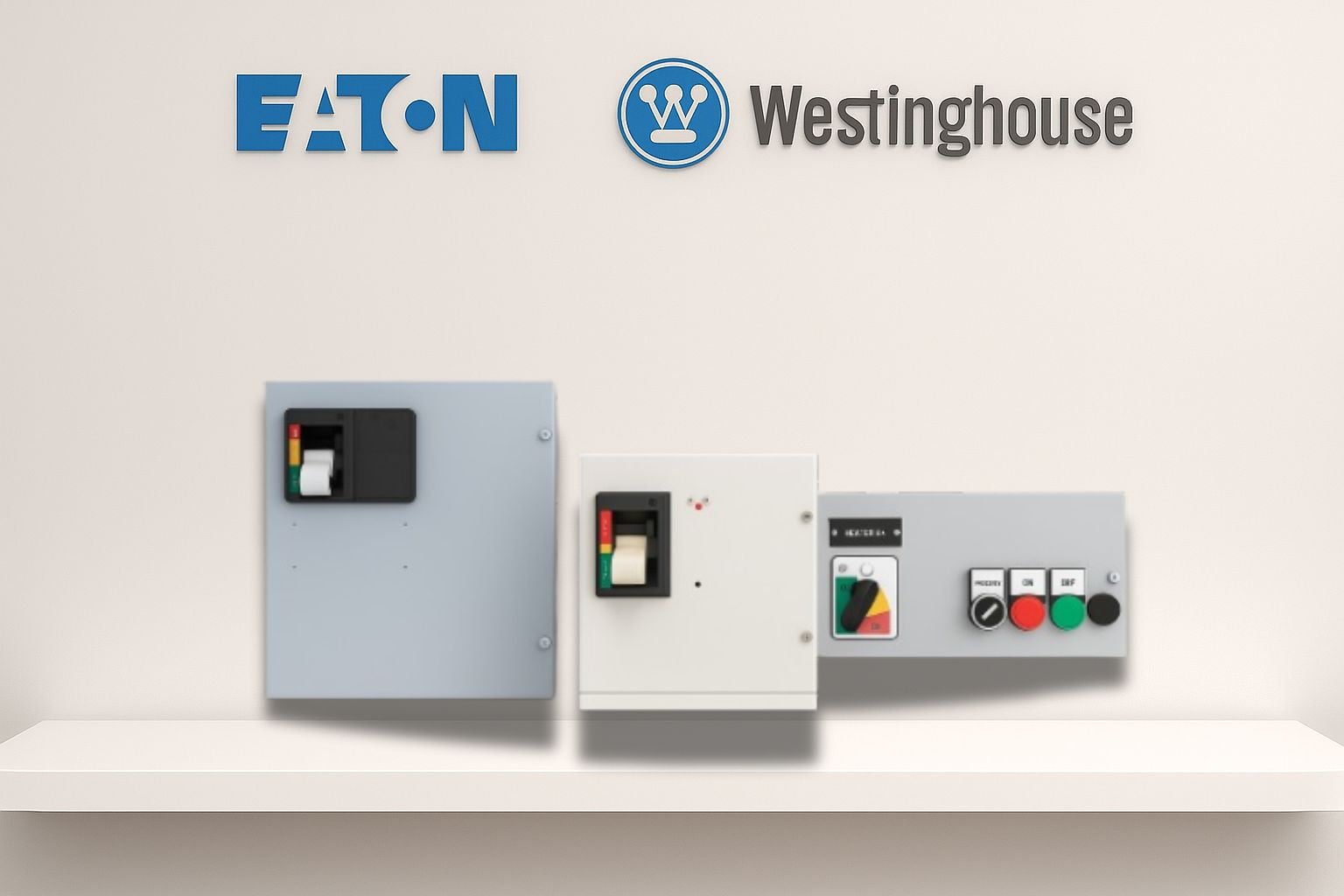

Eaton - Cutler Hammer - Westinghouse - 5 Star Series - Breaker MCC Bucket - 100 A, 600 V, 6" Height, 3 P | AmpState

Engineered for industrial motor control centers, the Eaton - Cutler Hammer - Westinghouse 5 Star Series Breaker MCC Bucket delivers a precise 100 A, 600 V, 3-Pole configuration in a compact 6" tall footprint. Designed as a direct replacement or retrofit for 5 Star Series MCC lineups, this bucket ensures your control center remains aligned with proven electrical characteristics and mounting compatibility, minimizing downtime during upgrades or expansions.

Key specifications

• Brand / Series: Eaton - Cutler Hammer - Westinghouse • 5 Star Series
• Configuration: Breaker MCC Bucket
• Rating: 100 A, 600 V, 3-Pole
• Bucket Height: 6"
• Application: Direct replacement or retrofit in 5 Star Series MCC lineups

Why this MCC bucket matters

In a busy plant, downtime is costly. This Breaker MCC Bucket is purpose-built to slide into existing Eaton/ Cutler Hammer / Westinghouse 5 Star Series motor control centers without disruptive rewiring or new panel footprints. The 100 A, 600 V, 3-Pole rating matches common motor loads found in pumping, conveying, and manufacturing equipment, giving you reliable performance where it counts. By choosing a genuine 5 Star Series bucket, you preserve system symmetry, bus routing, and terminal alignment, ensuring safe, predictable operation from day one.

Ideal applications and scenarios

• Retrofits: Upgrading aging MCCs to maintain compatibility with current motor starters and protection schemes.
• Expansions: Adding capacity in existing 5 Star Series installations without redesigning the entire control center.
• Maintenance cycles: Quick, predictable replacements to keep critical motor-driven processes online.
• Industrial environments: Suitable for factories, processing plants, and facilities relying on reliable 3-phase motor control.

What sets it apart

Unlike generic replacements, this MCC bucket is specifically engineered for the 5 Star Series lineup, ensuring exact fit and electrical continuity. Its 6" bucket height is designed to integrate neatly within standard MCC sections, preserving clearances and accessibility for routine maintenance. Backed by AmpState, you gain access to trusted retrofit solutions, global delivery, and technical support tailored to industrial motor control components.

Installation-minded notes

For best results, verify that the installation matches the 5 Star Series mechanical and electrical interfaces. Use appropriate torque specifications for connections, and plan for seamless bus-bar alignment with adjacent buckets to maintain consistent current paths and protection coordination. This unit is intended as a drop-in replacement or retrofit in compatible MCC configurations, minimizing project timelines and disruption to ongoing operations.

With the Eaton - Cutler Hammer - Westinghouse 5 Star Series Breaker MCC Bucket, you’re selecting a purpose-built solution that aligns with your existing MCC architecture, delivers reliable 100 A, 600 V performance, and supports scalable motor control center upgrades—now and into the future.
