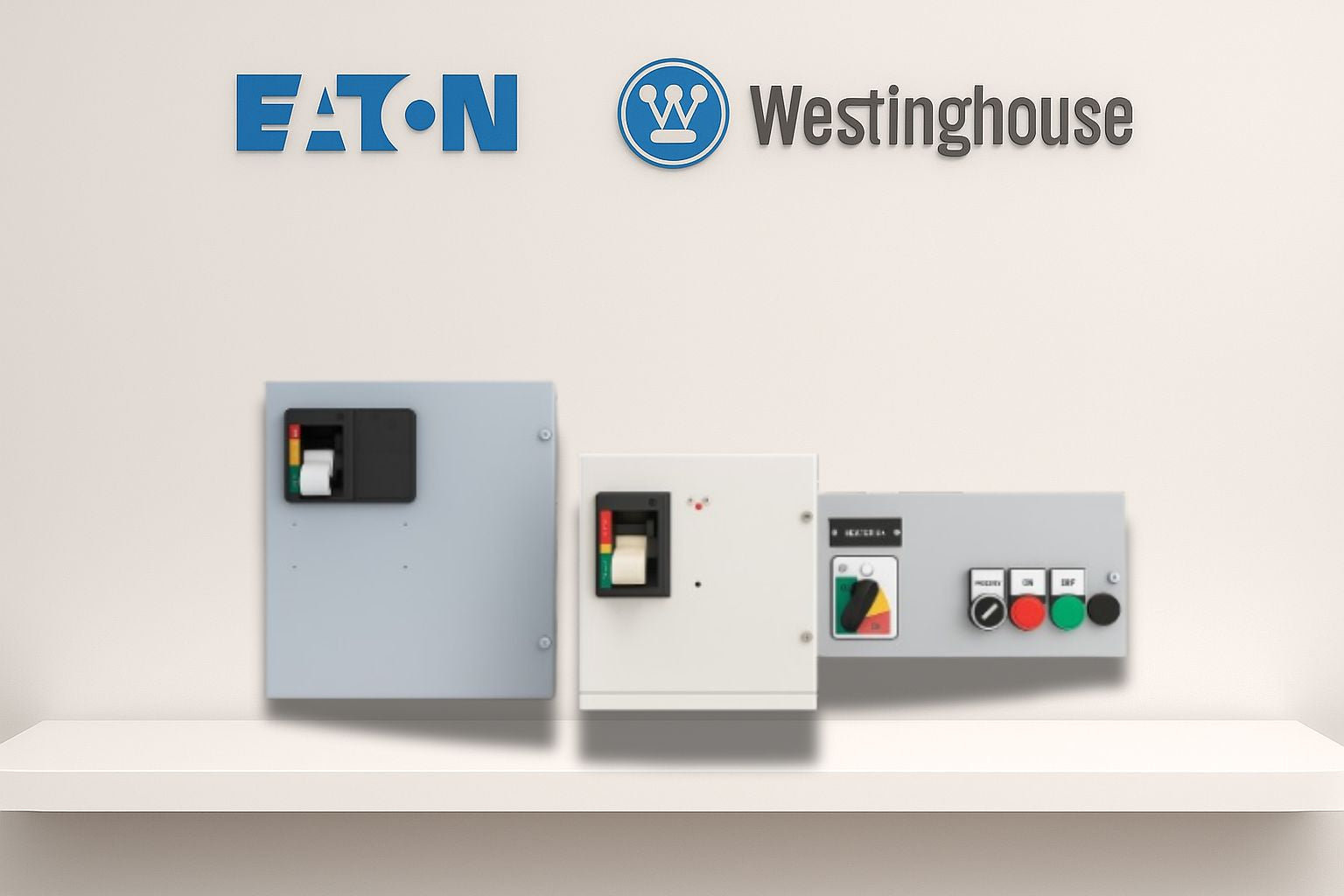

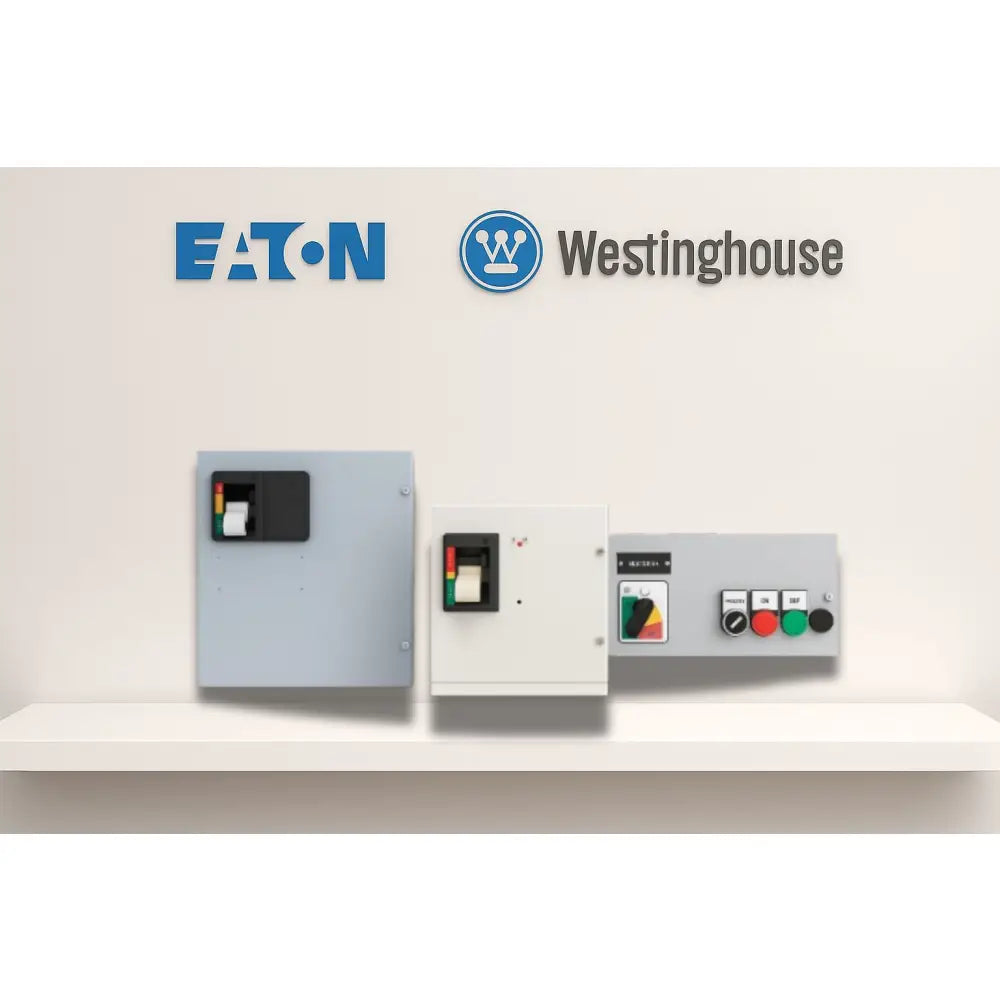

Eaton - Cutler Hammer - Westinghouse - 5 Star Series - Breaker MCC Bucket - 100 A, 600 V, 12" Height, 3 P | AmpState

Meet the Eaton - Cutler Hammer - Westinghouse 5 Star Series Breaker MCC Bucket, a purpose-built MCC component engineered for demanding industrial motor control centers. If you’re upgrading, retrofitting, or replacing aging hardware, this 100 A, 600 V, 3-Pole bucket is the precise, plug‑and‑play solution your 5 Star Series MCC lineup needs.

Key specifications at a glance

• Current rating: 100 A
• Voltage rating: 600 V
• Configuration: 3-Pole Breaker MCC Bucket
• Bucket height: 12 inches
• Fits Eaton - Cutler Hammer - Westinghouse 5 Star Series motor control centers

Why this bucket stands out

• Direct replacement for 5 Star Series MCCs: Designed to drop into existing 5 Star Series lineups without extensive modification, minimizing downtime during swap-outs.
• Versatile retrofit capability: Serves as a reliable retrofit unit for upgrades or maintenance programs, helping you extend the life of your MCC without sacrificing performance.
• Consistent performance under load: With a robust 100 A rating and 600 V insulation, it's well-suited for demanding motor control applications, pumps, conveyors, and other critical loads.
• Industrial-grade construction: Built to endure the rigors of continuous operation in busy manufacturing, processing, and industrial environments.
• Aligned with trusted brand families: Part of the 5 Star Series ecosystem, ensuring compatibility with related components and common configurations across Eaton, Cutler Hammer, and Westinghouse families.

Ideal use scenarios

• Upgrading aging MCC infrastructure in manufacturing floors, HVAC plants, and automation lines
• Retrofit projects where downtime needs to be minimized and compatibility with existing 5 Star Series buckets is essential
• Repairs and replacements in facilities that require consistent 100 A, 600 V performance for critical motor loads

Practical tips for installers and engineers

• Verify slot compatibility: This bucket is designed for 5 Star Series MCC configurations, ensuring proper mounting alignment and electrical interface.
• Confirm the target load matches 100 A and that the connected motors operate up to 600 V for reliable performance.
• Plan retrofit downtime carefully to align with other maintenance activities, taking advantage of this bucket’s direct-replace capability to minimize production impact.
• Leverage AmpState support for accessories, documentation, and any retrofit guidance you might need to ensure a smooth installation.

What you gain with AmpState

AmpState supplies high-quality MCC buckets and retrofit solutions with global delivery and technical support. This Breaker MCC Bucket is backed by the same expertise, making it a dependable component for long-term reliability in your motor control center ecosystem.
